LITH REBL ALO16 UVOLT SWW3 80CRI DW

Manufacturer: Lithonia Lighting | Catalog # REBL ALO16 UVOLT SWW3 80CRI DWH M2 | Cooper Electric Part # 2232926
$177.16/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure

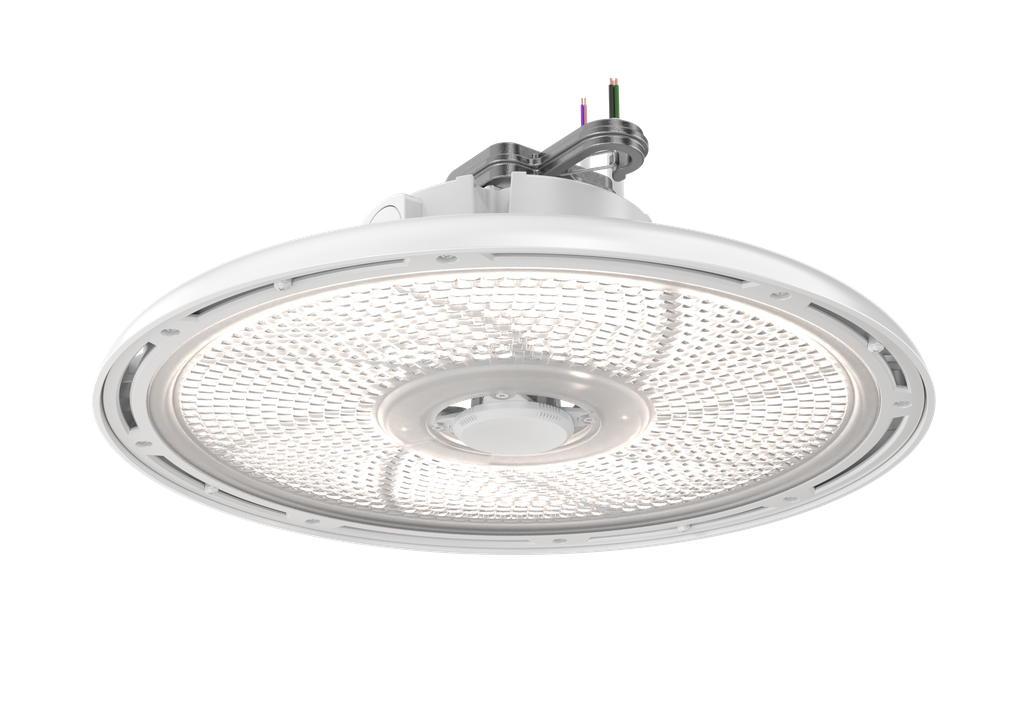

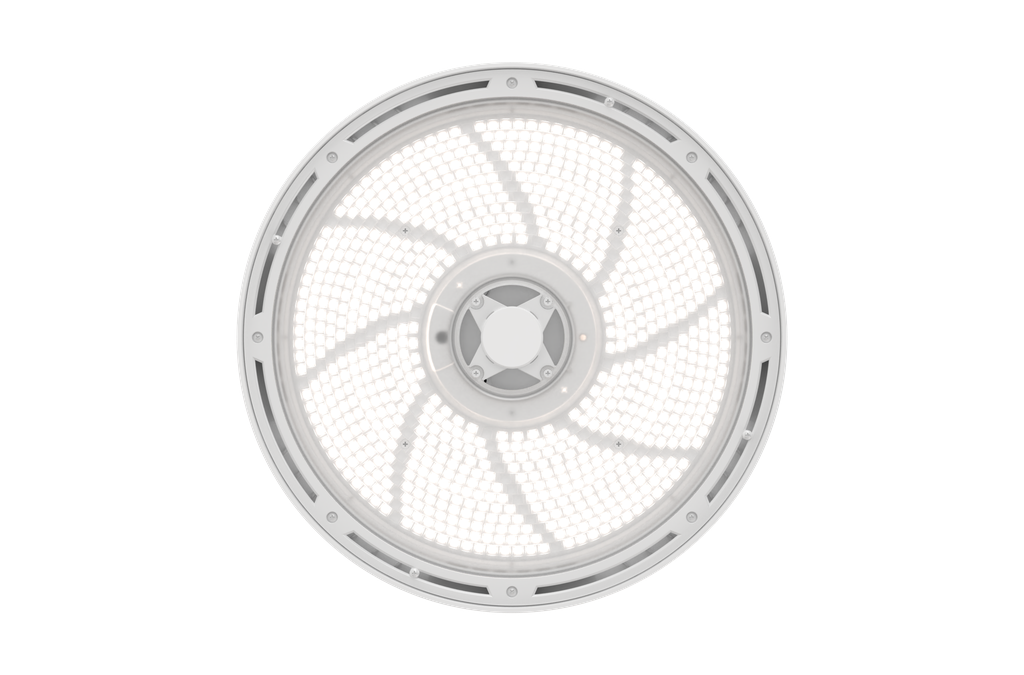

The REBL LED High Bay by Lithonia Lighting features patent pending micro-prism optics that deliver uniform and comfortable illumination across the entire space. Packaged in a sleek, yet rugged diecast housing, the REBL's unique design redefines the round high bay by combining aesthetics, optical control, and UGR performance without wasting energy. REBL is Performance Simplified.

Technical Information

Applications
Manufacturing,Retail,Warehouses
Color Temperature
3500 K
Correlated Color Temp
3500 K
Dimmable?
Yes
Lamp Type
LED
Lens Color
Clear
Lens Material
Polycarbonate
Lumens
Switchable Lumen
Material
Aluminum
Number of Lamps
1
Style
Traditional
Voltage
120-347
Wattage
200 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
197590119370
Color
White
Environmental Conditions
Indoor
Finish
Gloss
GTiN
00197590119370
Product Type
High Bay
Product UPC
19759011937
Shape
Round
Weight
8.15 lb

Dimensions

Height
14.57 Inch
Length
14.57 Inch
Warranty Length
5 yr
Width
4.99 in

Certifications and Compliance

Country of Origin
Vietnam
Features
  • TECHNOLOGY: 24,000/27,000/30,000 Adjustable Lumen Output (ALO) and 3500K/4000K/5000K Switchable White (SWW) features allow for this high bay to offer 9 potential configurations within one fixture, using two switches
  • ENERGY SAVINGS: High-efficiency LEDs provide up to 187 LPW
  • DIMMING: 0-10 volts driver for dimming down to 10 percent
  • RATINGS: UL/C-UL listed to US and Canadian safety standards, Wet location listed, IP66, NEMA 4X, and NSF Splash Zone 2 rated
  • VOLTAGE: MVOLT for 120-347 volts
  • HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 100,000 hours (L70>100,000)

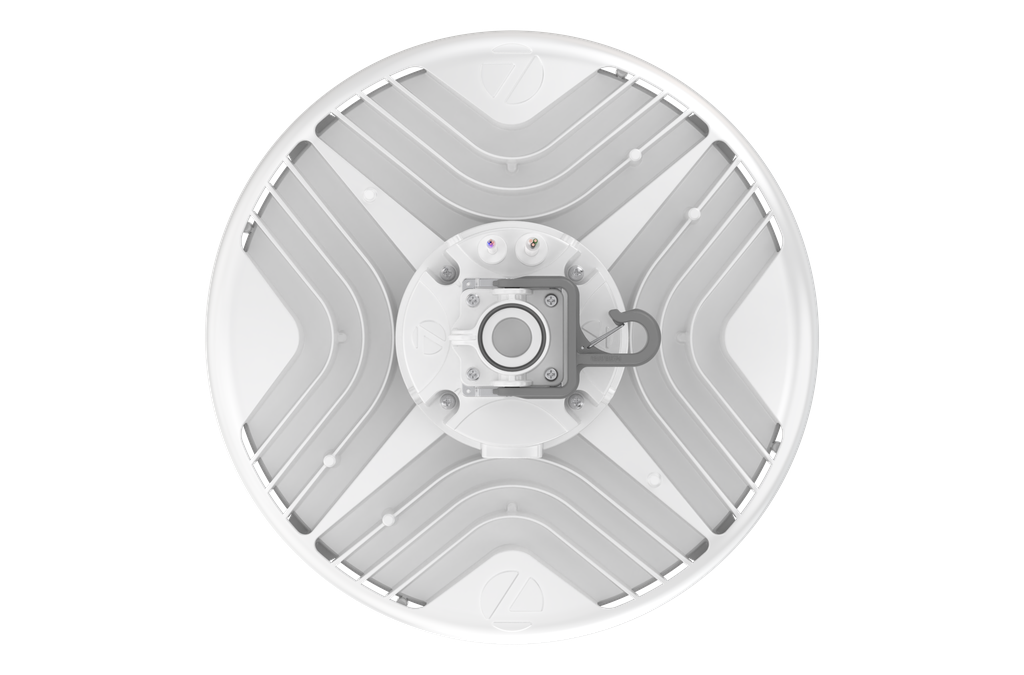

  • INSTALLATION: Fixture includes patented flip hook with safety latch that can be flipped down and mounted with the inch threaded pendant mount; Optional cast loop or surface mount bracket available separately
  • BATTERY: Field Installable 40 watt emergency battery pack
  • WARRANTY: 5-year limited warranty
Application
  • Manufacturing
  • Retail
  • Warehouses
Mounting
  • Pendant
  • Suspended
Standard
  • ULDLC Premium
