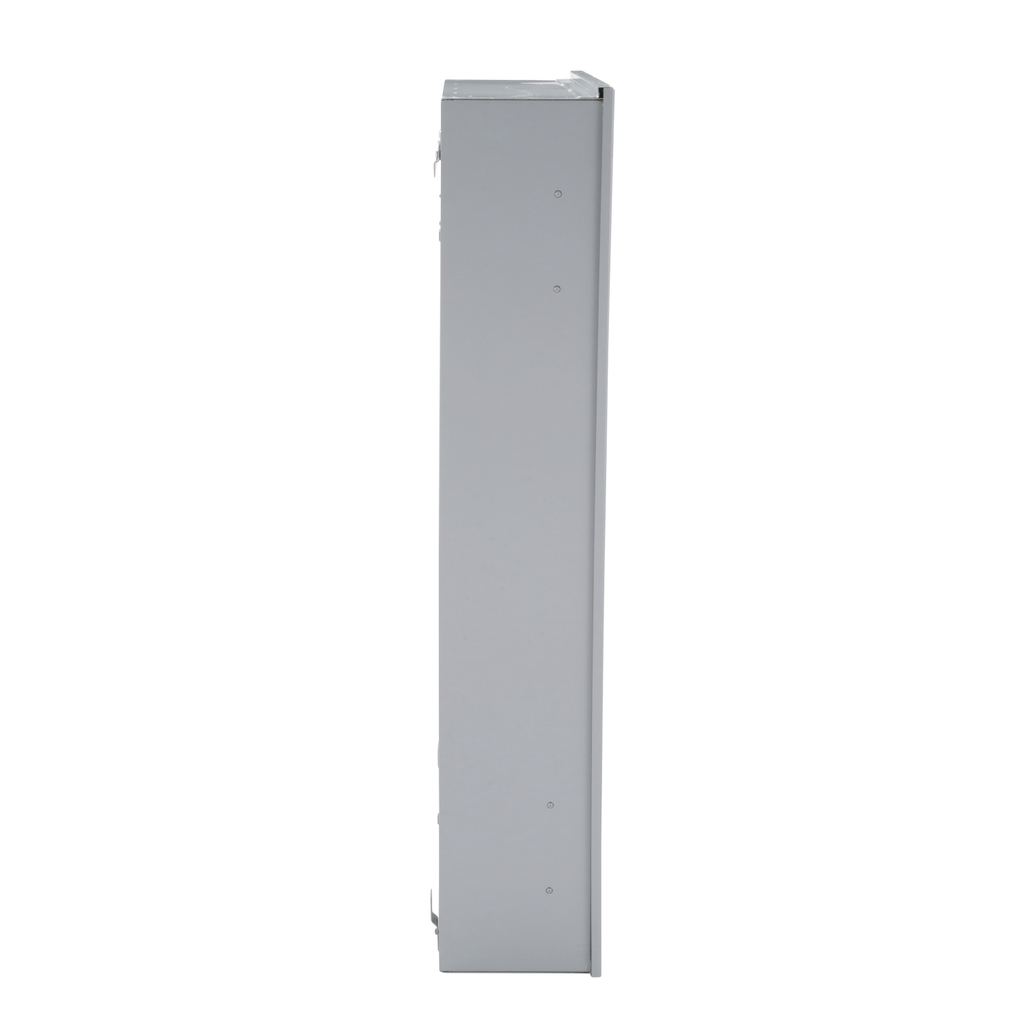

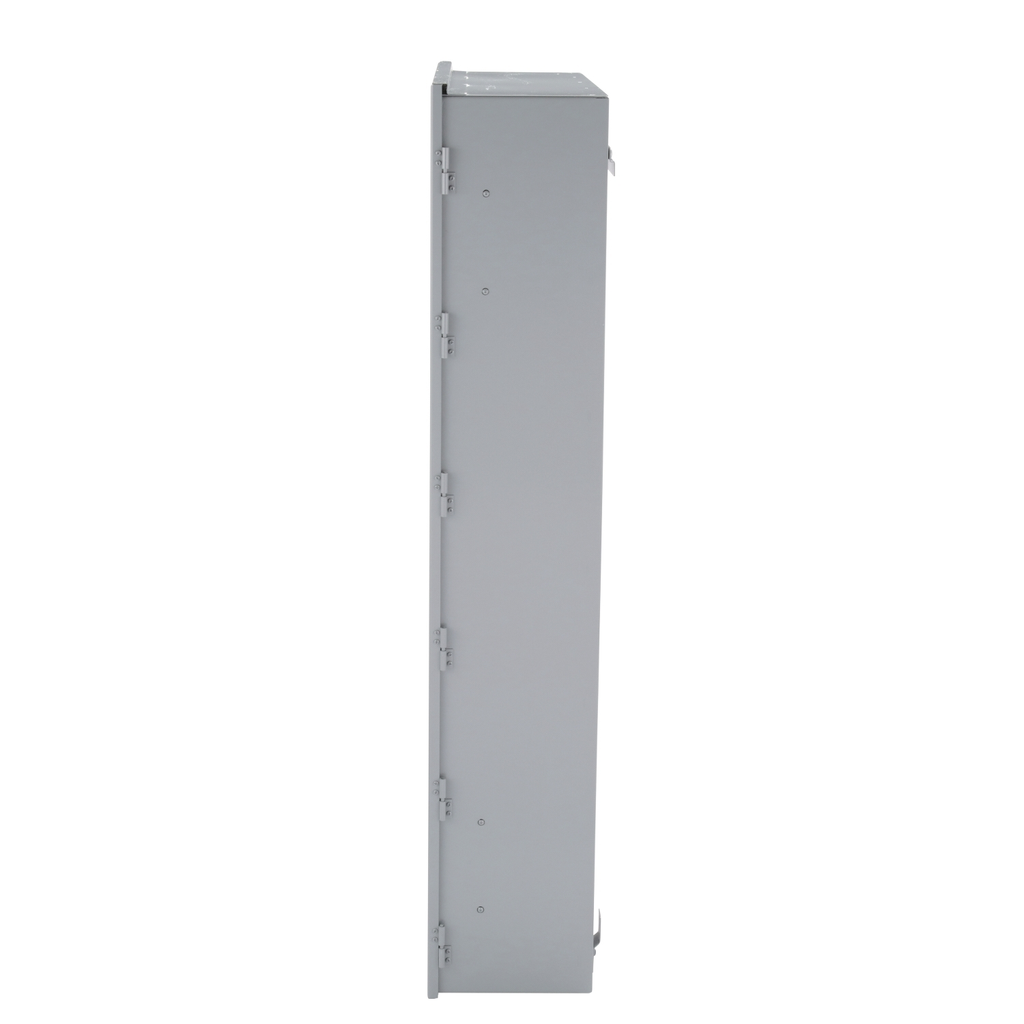

Square D HC4268WP 42 x 12.5 x 68 Inch NEMA 3R/12 Panelboard Enclosure

Manufacturer: Square-D / Schneider | Catalog # HC4268WP | Cooper Electric Part # 223009
$4,952.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Tuesday 7:00am ET
4 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400.1200 A main lugs only and 100.1200 A main circuit breakers. This HCP I-Line panelboard enclosure has a NEMA 3R/12 degree of protection. This enclosure has current ratings of 400A, 600A & 800A. Dimensions for this enclosure are 1727 mm (H),1067 mm (W),241 mm (D). This product comes with an 18 month warranty.

Technical Information

Amperage
400 Amp
Applications
Panelboard
Enclosure
NEMA 3R/5/12
Line Rated Current
1200 A
Material
PAINTED
Net Weight
143.79 kg
Operating Temperature
PER UL
Size
9.49 in
Standard
CSA,UL
Type
Enclosure

Manufacturer Information

Brand
Square D
Sub Brand
HCP

General Product Info

12-Digit UPC
785901077183
GTiN
00785901077183
Product UPC
78590107718
Weight
143.79 kg

Dimensions

Depth
12.95 Inch
Enclosure Depth
241 mm
Enclosure Height
1727 mm
Enclosure Wdth
1067 mm
Height
68 Inch
Warranty Length
18 mth
Width
1067 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • HCP14504
  • HCP14506
  • HCP14508
  • HCP18688M
  • HCP235912N
  • HCP23594
  • HCP23596
  • HCP23598
  • HCP32688
  • HCP36868M
  • HCT2DH42
  • HCW68TSD
  • HCW86D
  • RPLHCP508612N
