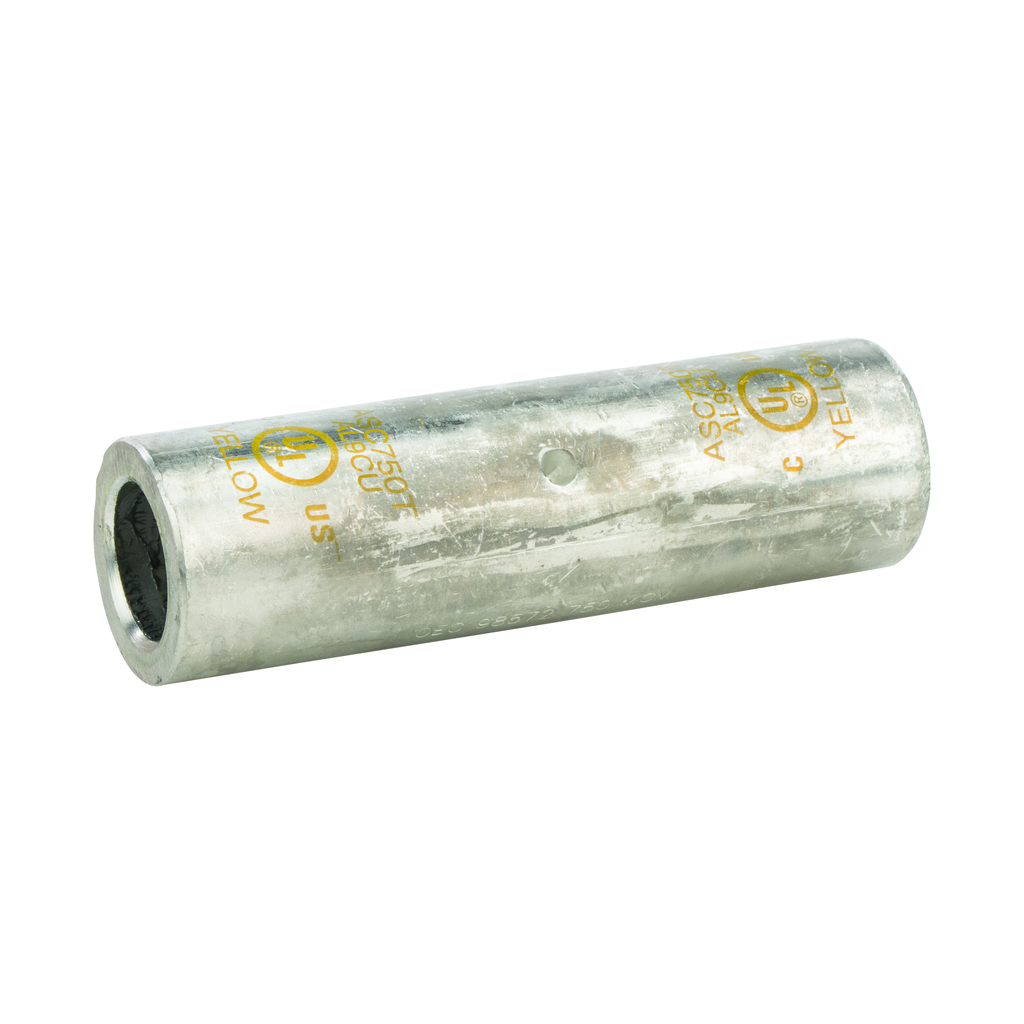

Product image for NSI ASC750T 750 MCM Red Tinned Aluminum Standard Barrel 2-Conductor Dual Rated Compression Splice
Email

NSI ASC750T 750 MCM Red Tinned Aluminum Standard Barrel 2-Conductor Dual Rated Compression Splice

Manufacturer: NSi | Catalog # ASC750T | Cooper Electric Part # 22284
$9,641.05 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Product Spec Sheet
Dual Rated Aluminum Splice 750 MCM Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.

Technical Information

Applications
Terminate, Splice, Tap Power Connectors
Conductor Size
750 kcmil
Material
Aluminum
Max Temperature
194 degrees F
Number of Conductors
2
Number of Poles
1 Pole
Size
L=5.37 - OD=1.60 - ID=1.02
Standard
UL486
Temperature Rating
90 degrees C
Type
Standard Barrel - ALCU Splice
Voltage
600 Volt

Manufacturer Information

Brand
NSI Industries
Sub Brand
Aluminum Compression

General Product Info

12-Digit UPC
662381032140
Color
Yellow
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381032140
Product UPC
66238103214
Weight
0.63 lb

Dimensions

Height
1.6 Inch
Length
5.38 Inch
Warranty Length
1 yr
Width
1.6 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
India
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A-486B
Features
  • Produced from high conductivity aluminum tubing
  • Center stop assures proper cable installation
  • Electro-tin plated for corrosion resistance
  • Listed for 35kV maximum when properly installed to cable manufactures specifications, Color coded and marked with die index information
  • Pre-filled with oxide inhibitor and capped with color coded cap
Additional Notes
  • EXPANDED WIRE RANGE when installed with NSI N12ID dieless compression tool. UL Listed with other tools: FOR TOOL/DIE CRIMPING INFORMATION, PLEASE SEE TABLE ON PAGE 90
