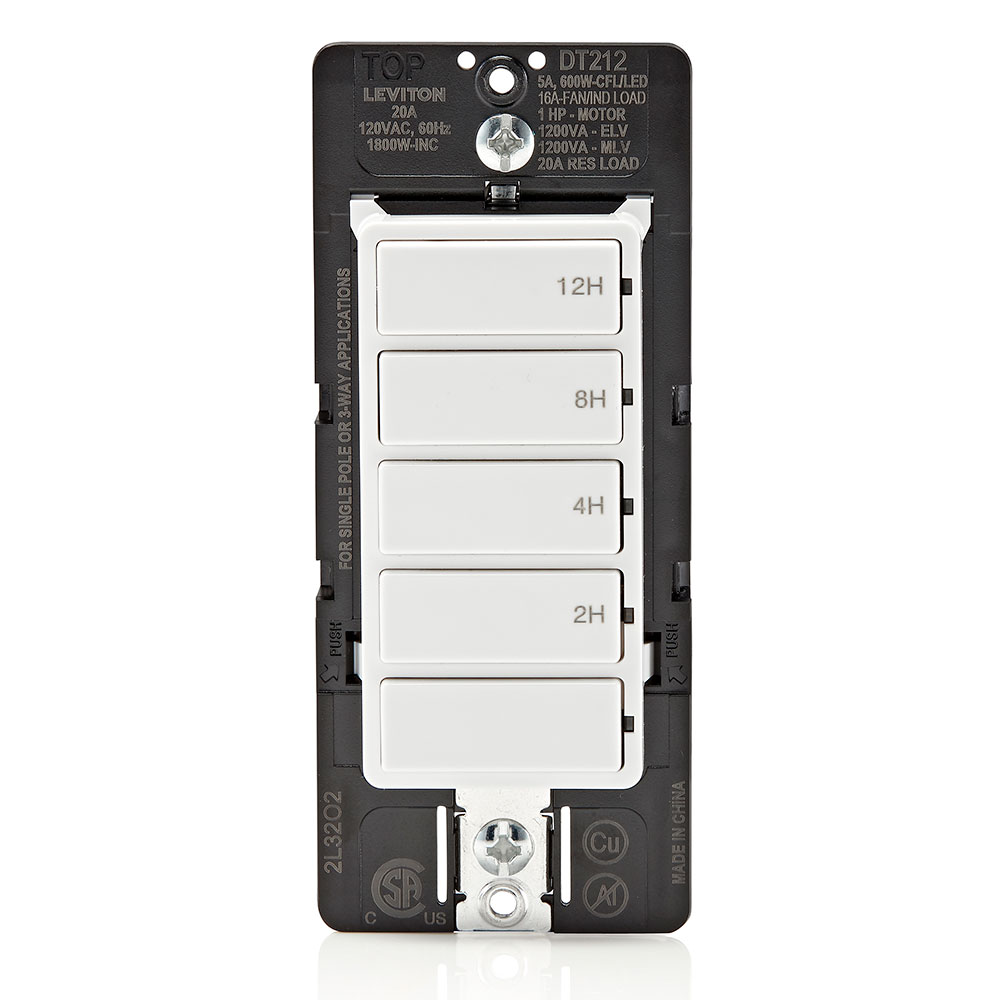

Product image for LEV DT212-1LW WH 20A SP3W DEC TIMER
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

LEV DT212-1LW WH 20A SP3W DEC TIMER

Manufacturer: Leviton Mfg Co | Catalog # DT212-1LW | Cooper Electric Part # 2226237
$55.15/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

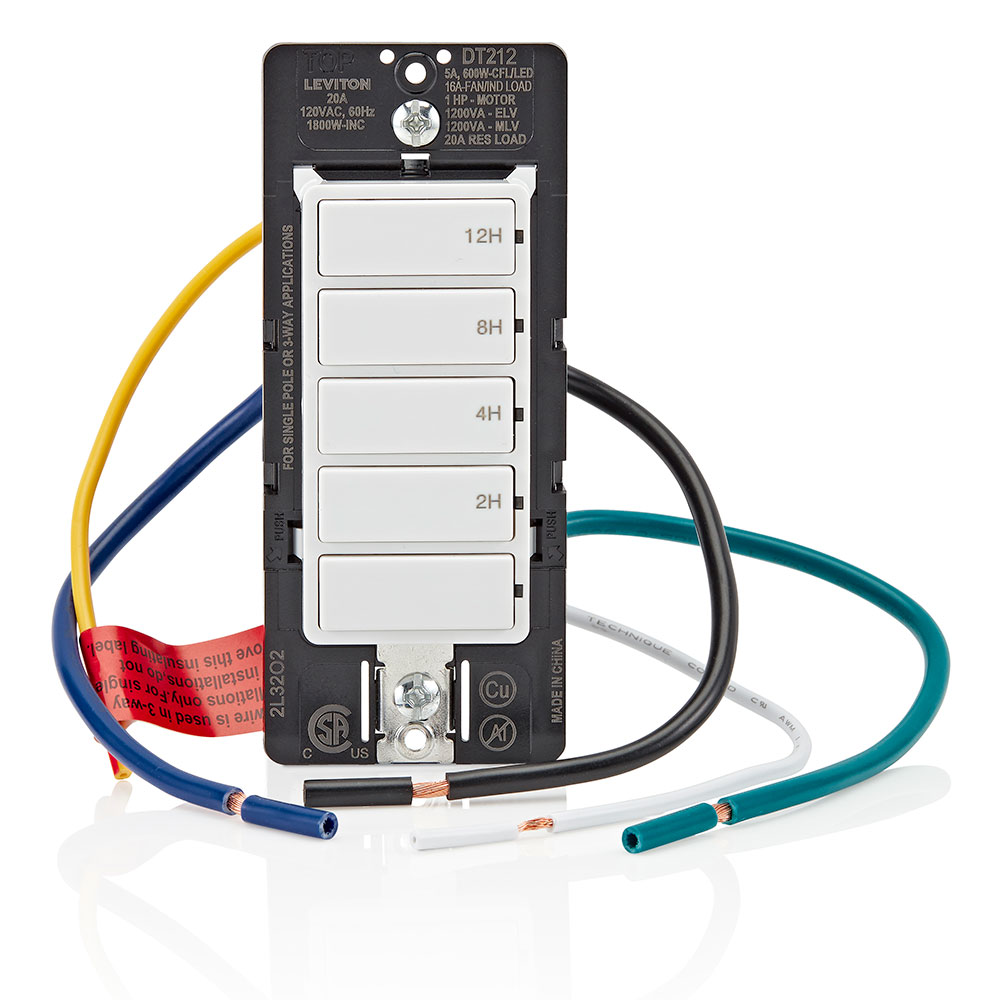

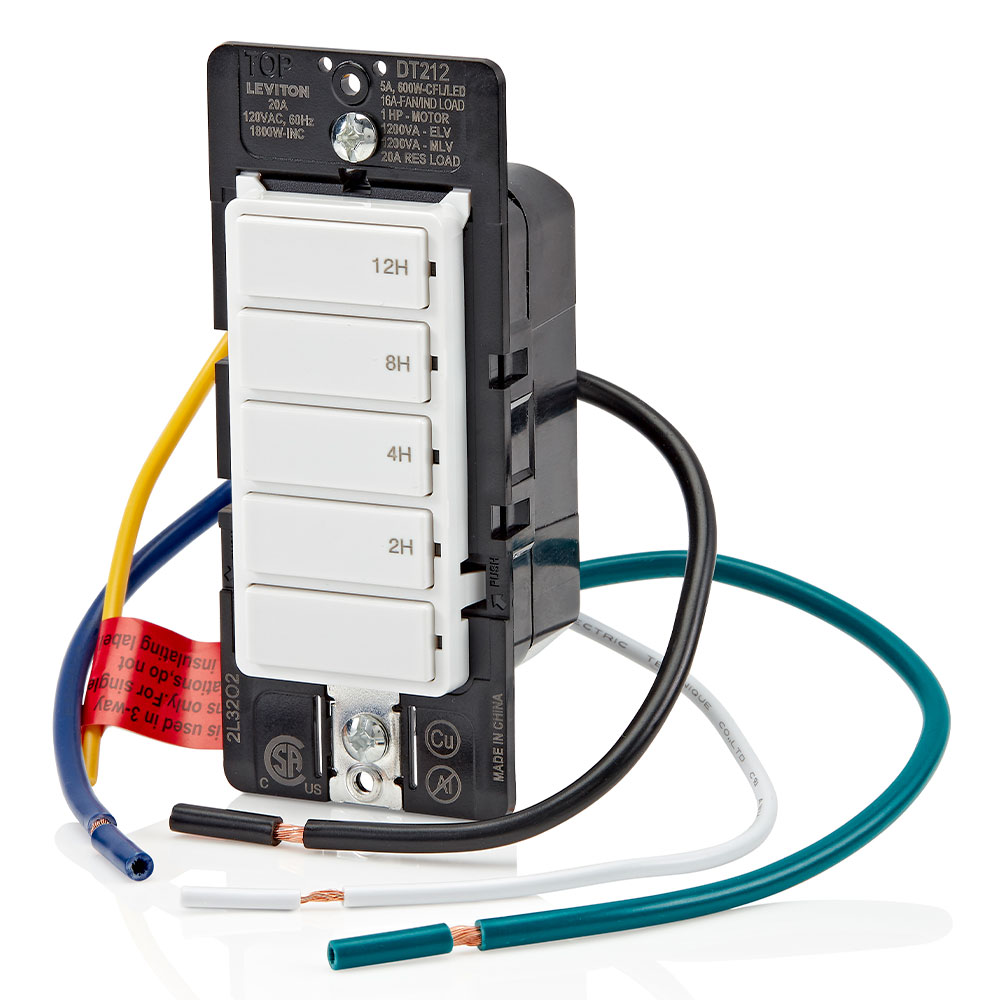

Leviton.s 12-Hour Countdown Timer Switch has 5-buttons with 2-hour, 4-hour, 8-hour and 12-hour time options and a manual off button. The larger load capacity can handle larger fixtures and fans. Single pole, multi-way using DD0SR Switch Companion or multi-timer using two DT212 countdown timers. 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage/Electronic Low Voltage/Fluorescent, 1 HP/16A Fan/Motor, 20A Resistive/16A Inductive. Requires a neutral wire for installation, wallplate sold separately - White

Technical Information

Amperage
20 Amp
Device Type
Timer Switch
Grade
Residential
Grounding
Yes
Horsepower
1 hp
Mounting Type
In-Wall
Termination Type
Leads

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477264409
Color
White
GTiN
00078477264409
Product UPC
07847726440

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Replace a standard wall switch with a countdown timer to ensure exhaust fans or lights are not left on unintentionally
  • Four preset time option buttons 2-4-8-12 hour with separate off button. Press time option to turn on and will automatically turn off when time expires
  • 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage, 1200 VA Electronic Low Voltage, 1200 VA Fluorescent, 1 HP/16 Amp Fan/Motor, 20A Resistive/16A Inductive
  • Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws
  • Designed with load capacity to handle larger exhaust fans, pumps and fixtures
  • Single pole, multi-way using DD0SR Switch Companion or multi-timer using two DT212 countdown timers
  • Zero Cross turn-on technology to extend the life of the switch
  • Manual override keeps load on for 24 hours. Override can be disabled by pressing one of the timer option buttons or off button

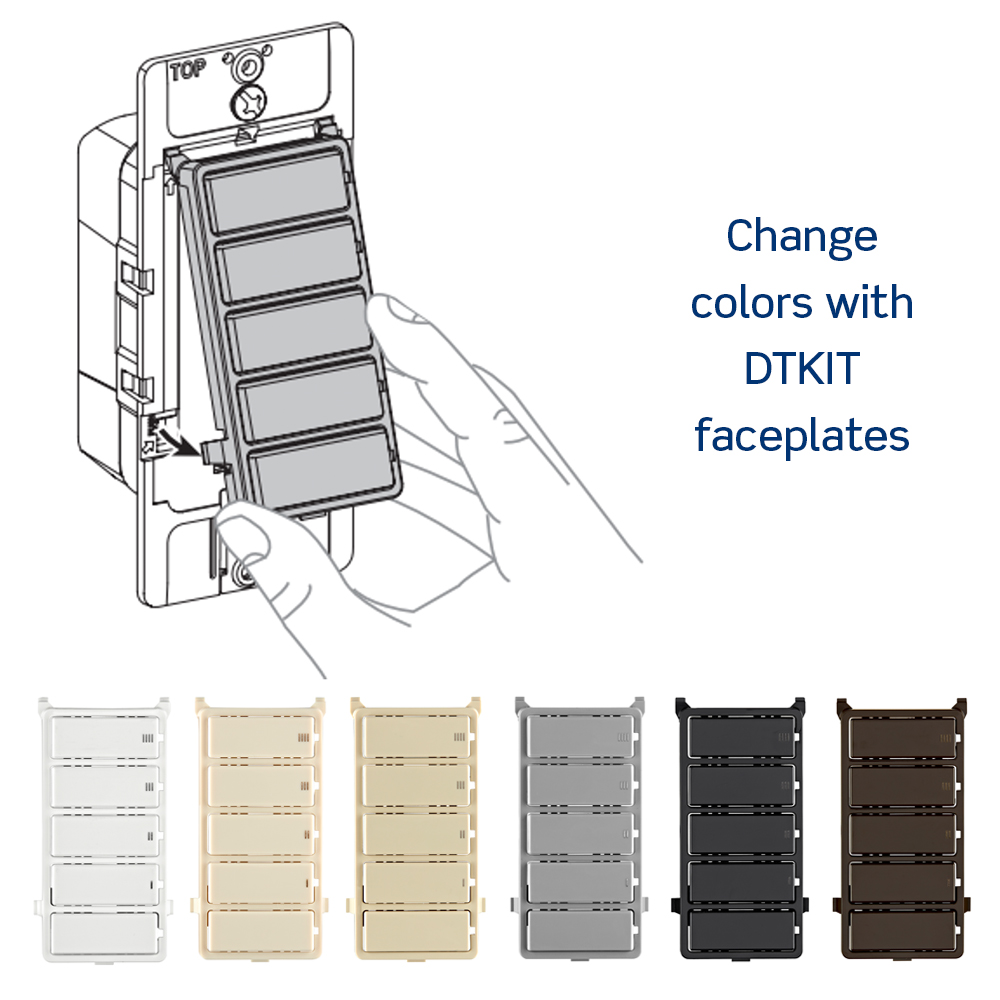

  • Change color with DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)
  • Ideal to use for porch and landscape lighting, interior lights, bathroom exhaust fans, heat lamps, pool pumps, hot tubs, saunas, attic fans, and more
  • Do not use to control lights if there is no other light source in the space
  • CONVENIENT designed with load capacity to handle larger exhaust fans, pumps and fixtures
  • ENERGY SAVING turns off automatically when time expires
  • FLEXIBLE single pole, multi-way with DD0SR Switch Companion or multi-timer with two DT212 timers
  • PRACTICAL for porch and landscape lighting, interior lights, bathroom exhaust fans, heat lamps, pool pumps, hot tubs, saunas, attic fans, and more
  • STYLISH easily change the color using DTKIT faceplates available in white, ivory, light almond, gray, black and brown
Patents
  • CA2572204
  • US7683755
