LITH JPDZ4JB RDB1 WWH M6 Juno Podz

Manufacturer: Lithonia Lighting | Catalog # JPDZ4JB RDB1 WWH M6 | Cooper Electric Part # 2223326
$77.35/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

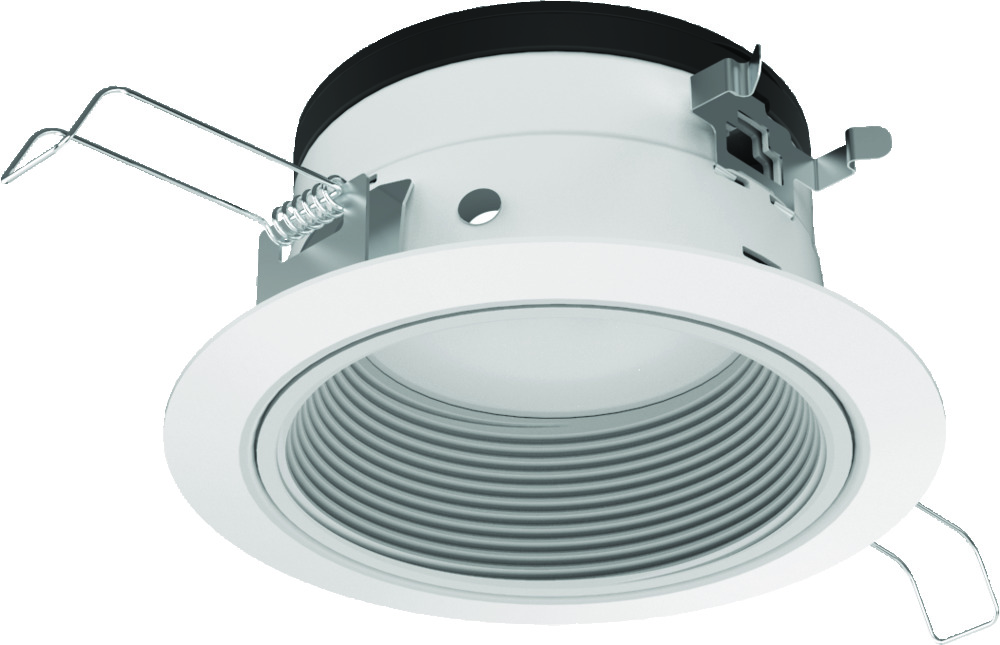

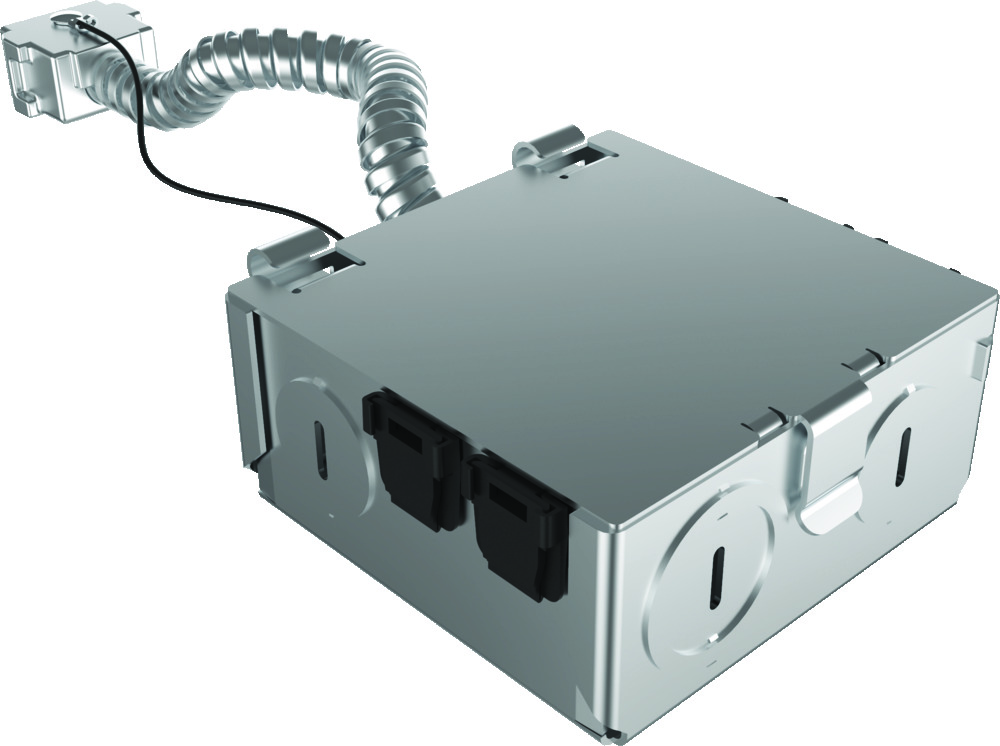

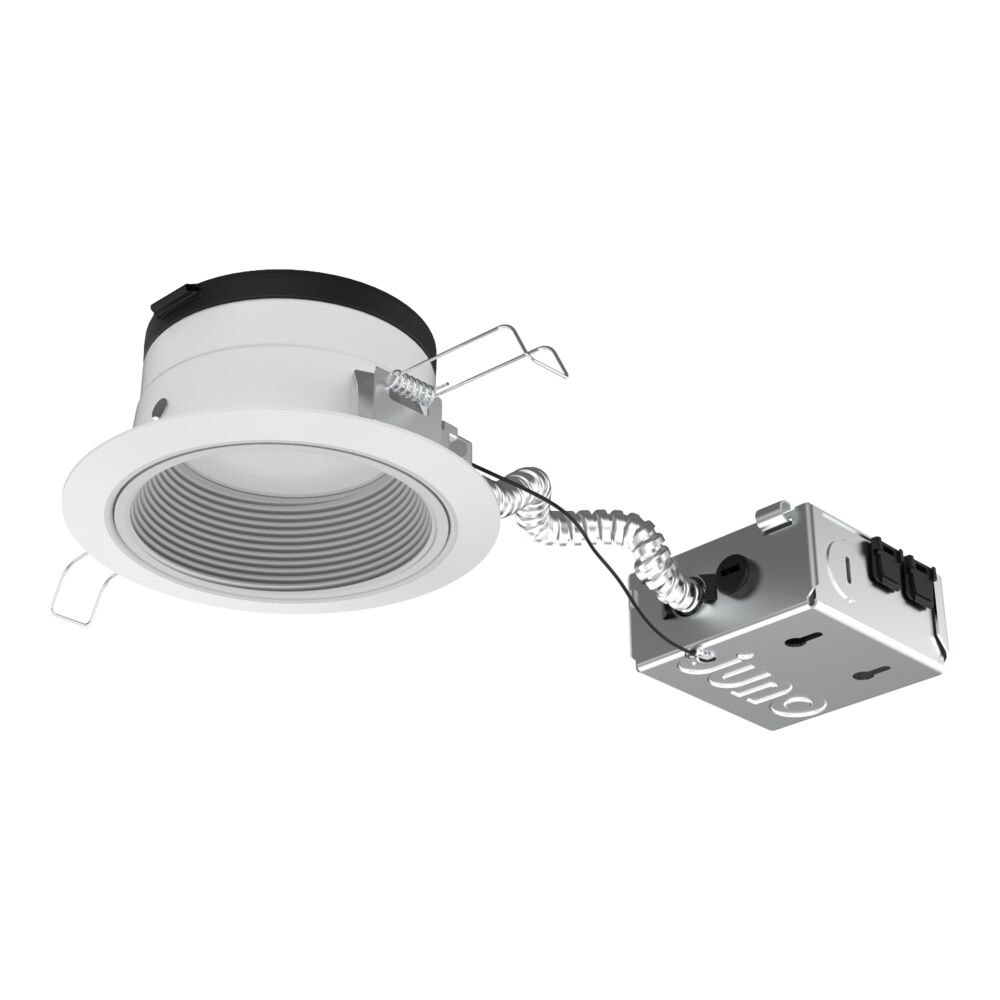

Juno Podz 4IN Trim and Remodel Junction Box, Round downlight baffle 120V, White, White Trim Ring

Technical Information

Aperture Size
4 in
Applications
Hospitality,Offices & Banks,Residential,Retail
Color Rendering Index
90
Color Temperature
2700/3000/3500/4000/5000 K
Correlated Color Temp
2700 K
Dimmable?
Yes
Fixture Wattage
7.5 - 15.2 W
Lamp Type
LED
Lens Color
White
Lens Material
Polycarbonate
Lens Type
Diffused
Lumens
700/1,000/1,200 Lumen
Material
Steel
Mounting Type
Junction Box
Number of Lamps
1
Power Source
Hardwired
Style
Traditional
Type
Adjustable Lumen Output, Canless, Low Profile
Voltage
120 Volt
Wattage
15 Watt

Manufacturer Information

Brand
Juno Lighting
Sub Brand
Podz™

General Product Info

12-Digit UPC
196182210761
Color
White
Construction
Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Matte
GTiN
00196182210761
Housing Finish
White
Housing Material
Aluminum
Product UPC
19618221076
Shape
Round
Weight
1.6 lb

Dimensions

Height
2.312 Inch
Length
5.312 Inch
Width
5.312 in

Certifications and Compliance

Country of Origin
Mexico,Mexico
Applications
  • Hospitality
  • Offices & Banks
  • Residential
  • Retail
Standards
  • C-UL-USCA Title 24
  • ENERGY STAR
  • JA8
Features
  • DESIGN: Juno® Podz™ canless design provides a shallow-profile that allows for quick installation directly into the plenum from below the ceiling, no housing required to install this product; The housing is IC-Rated for insulation contact
  • ENERGY SAVINGS: Integrated LED and driver technology to provide superior quality of illumination for extended service life
  • CONTROLS: Podz™ is an all in one product that provides switches directly on the fixture that allow you to adjust lumen output (700L, 1000L, or 1200L), switch between color temperatures (27K-50K) and dim through WarmDim® technology, dim from (2850K-1900K)
  • RATINGS/LISTINGS: UL listed for US and Canada, ENERGY STAR® Certified, Suitable for indoor and wet locations
  • INSTALLATION: Designed for install from below the ceiling for easy remodeling. Rated for applications that use 120v
  • KELVIN: Podz™ feature a switch directly on the fixture to change color temperature from 2700K, 3000K, 3500K, 4000K or 5000K
  • DESIGN FEATURE BENEFIT: Deeply regressed light source for the look of a traditional downlight
  • HOURS OF LIFE: 50,000 hours
  • WARRANTY: Buy with confidence, 5-year limited warranty
  • DIMENSIONS: Product - height 2-5/16\" x 5-5/16\" wide; Ceiling Cutout - 4 1/2\
