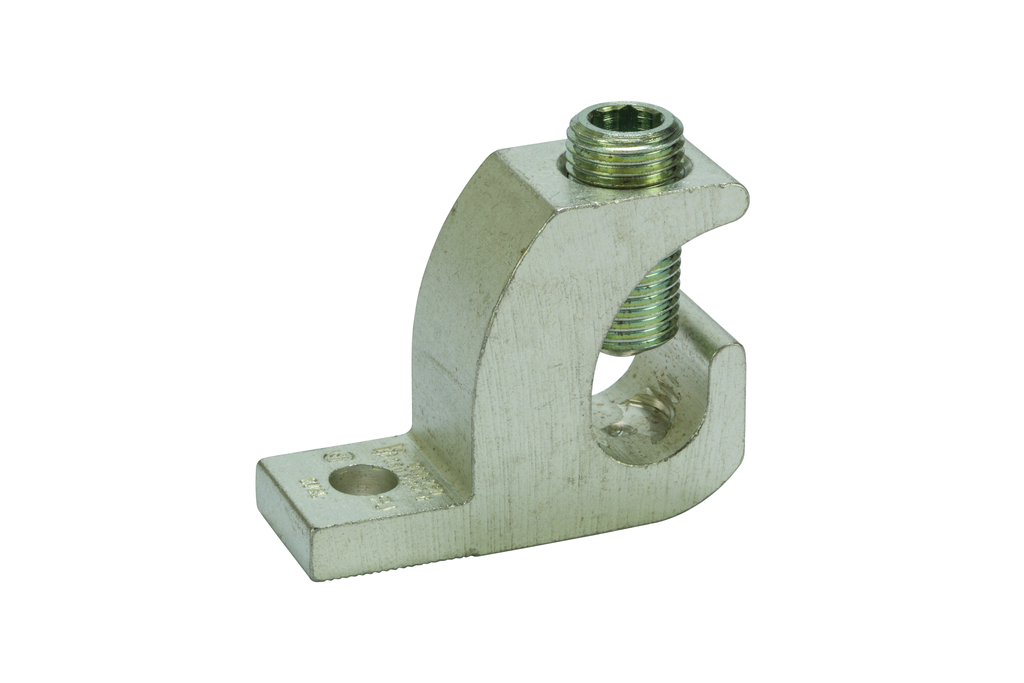

Product image for NSI GLA-250 6 AWG to 250 MCM Aluminum Lay-In Connector
Image thumbnail 0

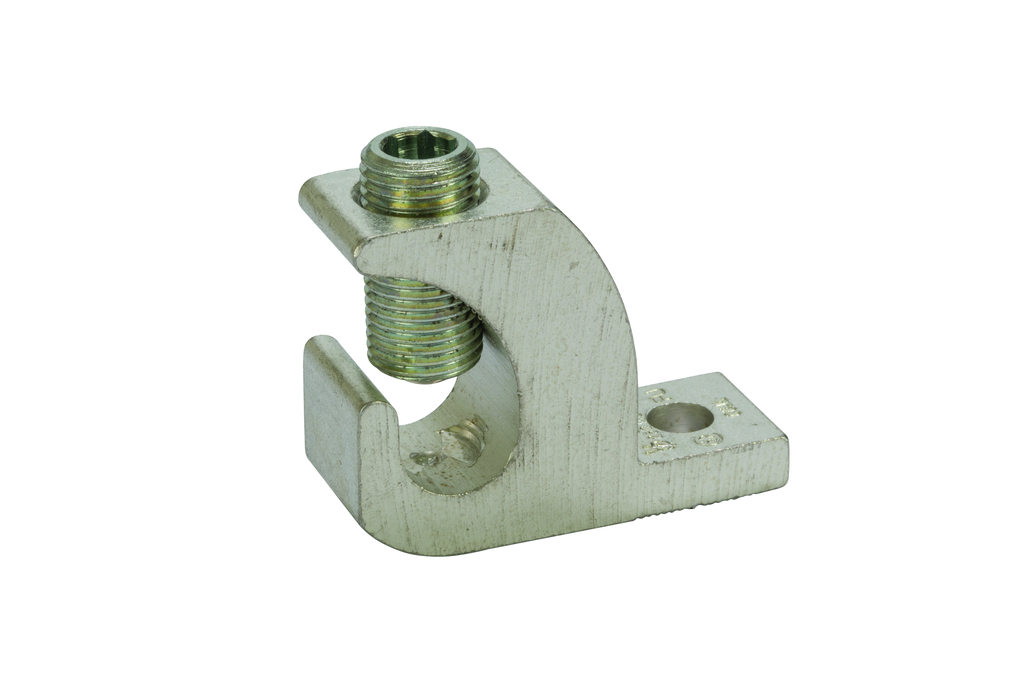

Image thumbnail 1
Email

NSI GLA-250 6 AWG to 250 MCM Aluminum Lay-In Connector

Manufacturer: NSi | Catalog # GLA-250 | Cooper Electric Part # 22151
$1,422.05/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
Lay In Connector 250 MCM - 6 AWG Lay-in connectors offer the ultimate in flexibility. Excellent for grounding and continuous loop applications. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C.

Technical Information

Applications
Wire Termination
Conductor Size
250 kcmil
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Number of Conductors
1
Number of Poles
1 Pole
Size
L=2.20 - H=1.70 - W=.800 IN
Standard
CULUS
Temperature Rating
90 degrees C
Type
Aluminum Lay-In Lug
Voltage
600 Volt
Wire Size
250 kcmil
Wire Type
AL/CU

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381001931
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381001931
Product UPC
66238100193

Dimensions

Height
1.7 Inch
Length
2.2 Inch
Warranty Length
1 yr
Width
0.8 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
India
Features
  • Lay-in connectors offer the ultimate in flexibility
  • Excellent for grounding and continuous loop applications
  • Made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance and stainless steel screw
  • For use with copper or aluminum conductors
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486B
