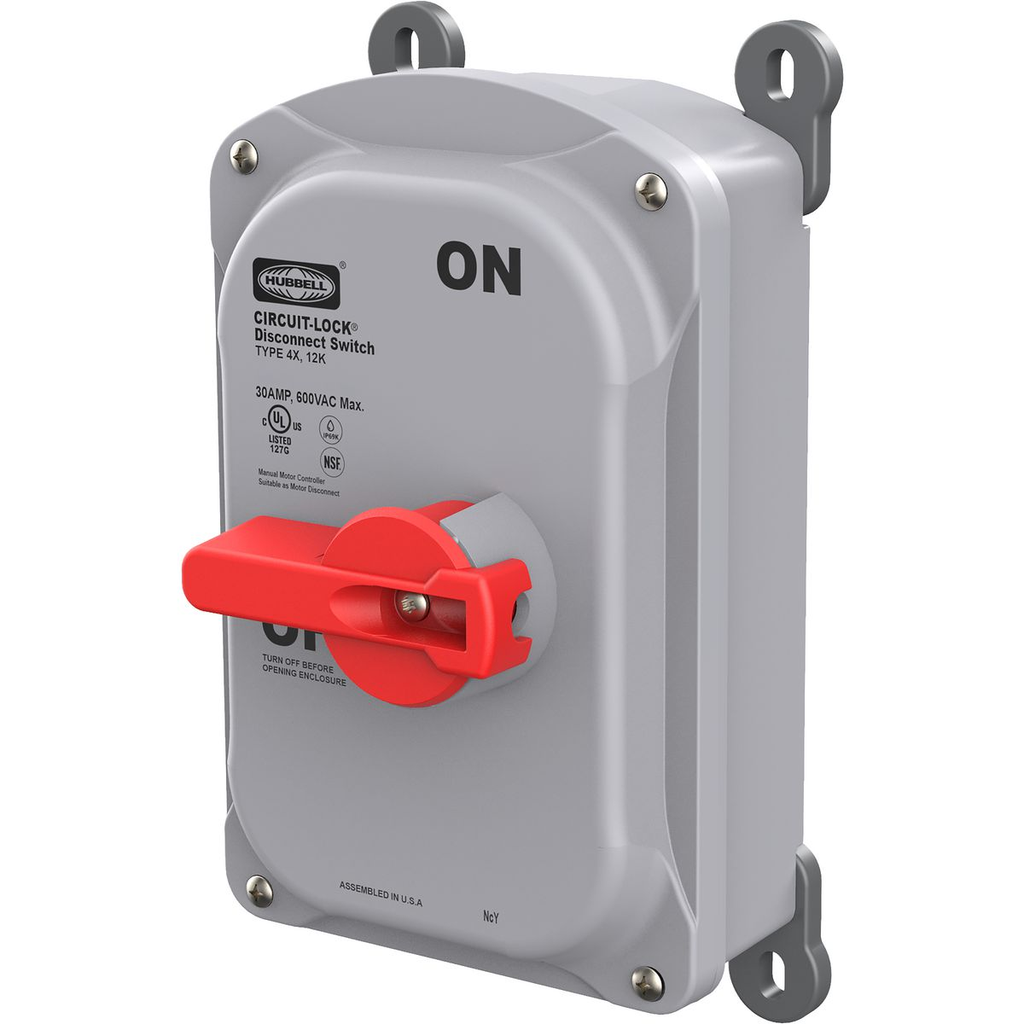

HWDK HBLDS30AC NM SLOPED DISC, 30A

Manufacturer: Hubbell Wiring Device | Catalog # HBLDS30AC | Cooper Electric Part # 2214967
$339.38/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Tuesday 7:00am ET
33 available

For Delivery

Order by Tuesday 5:00pm ET for delivery Wednesday
Not in local stock *
Check another branch
Product Spec Sheet
Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure, AC1 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A

Technical Information

Current
30 Amp
Horsepower
15 hp
Hub Size
3/4 in
Wire Size
14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585763033
Color
Gray
GTiN
00783585763033
Product UPC
78358576303
Shape
Rounded Top
Weight
2.8 lb

Dimensions

Height
4.12 Inch
Width
5.5 in

Certifications and Compliance

Country of Origin
Poland
Features
  • Constructed from corrosion and impact resistant UV stabilized non-metallic material
  • Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris
  • IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
  • Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
  • Product rating are permanently laser-marked and will not wash off

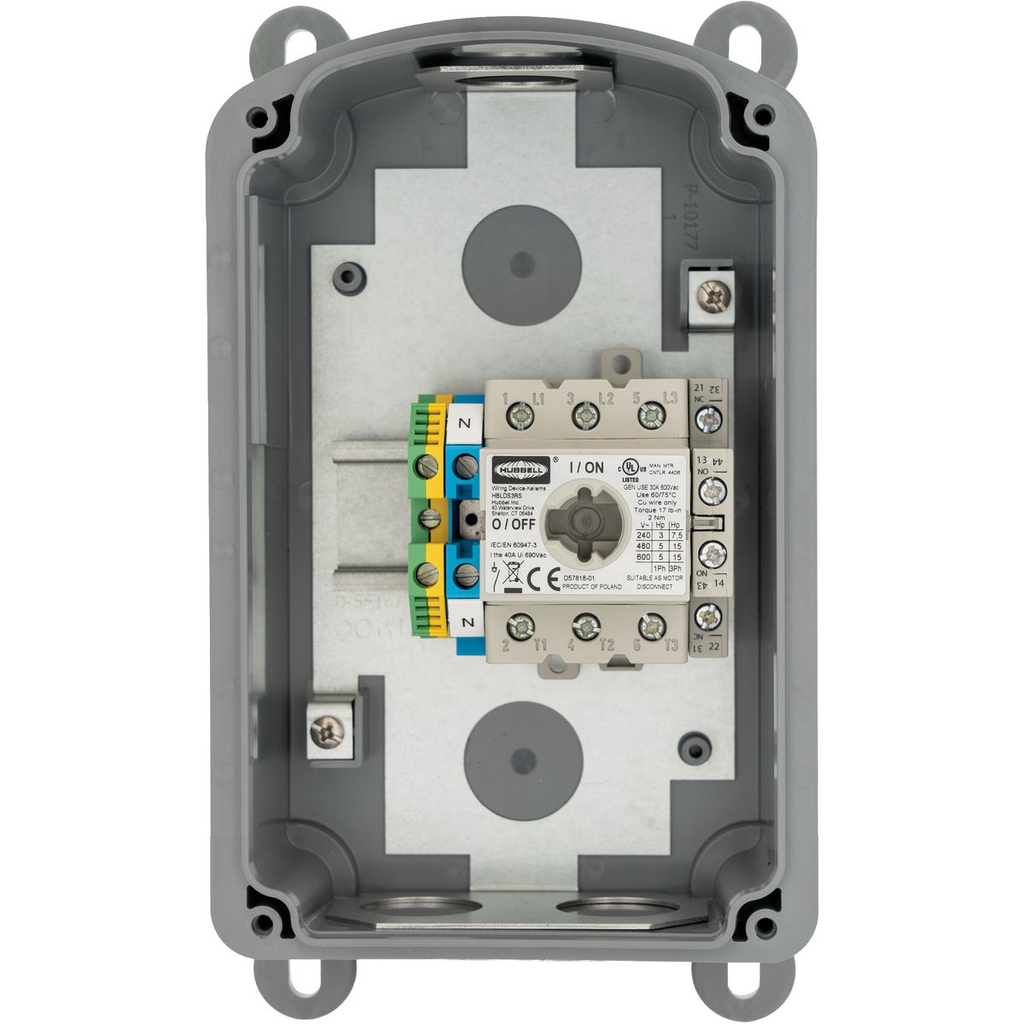

  • Factory installed HBLAC1 auxiliary contact is \"Break After Main Break\", 1 set of N/O contacts, 1 set of N/C contacts
