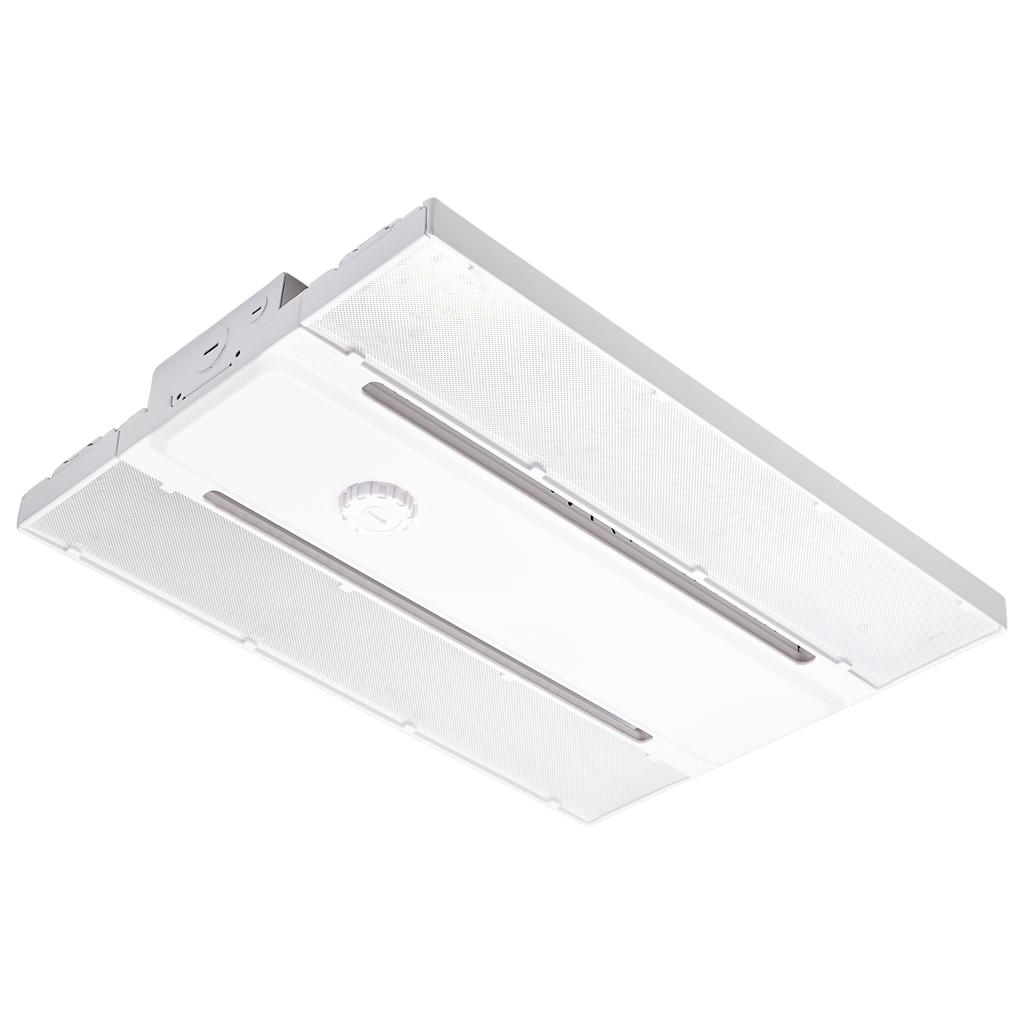

Product image for SATCO 65/1011 LED SELECTABLE LINEAR

Email

SATCO 65/1011 LED SELECTABLE LINEAR

Manufacturer: Satco | Nuvo | Catalog # 65/1011 | Cooper Electric Part # 2207241

$122.24/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Introducing SATCO|NUVO's versatile High Bay Fixture, designed for ultimate lighting adaptability. Our field selectable fixture comes with interchangeable optical lenses, offering unparalleled flexibility to meet various lighting requirements. The included 90 degrees x 90 degrees optical lens ensures even light distribution for most general applications, while optional lenses are available as accessories for specialized lighting needs. In addition to lens versatility, the 65-1011 fixture offers three wattage options (110W/130W/155W), three color temperature options (3000K/4000K/5000K), a flicker-free driver for seamless illumination, 6kV surge protection for added durability, and 0-10V dimming capability for precise control. For enhanced energy efficiency, an integrated sensor port is readily accessible, allowing seamless installation of optional PIR or microwave motion sensors. These sensors can be conveniently configured using an optional remote control. Designed for surface, suspension, and pendant mounting capabilities, this high bay is the ultimate lighting solution that adapts to all your needs.

Technical Information

Average Rated Life
50000 hr
Beam Spread
90
Color Temperature
Soft White To Natural Light
Correlated Color Temp
3000 K
Dimmable?
Yes
Indoor Outdoor
Indoor
IP Rating
IP20
Lens Material
Polycarbonate
Lumens
15,655 Lumen
Material
Aluminum
Operating Temperature
-40 degrees C
Power Factor
0.9
Technology Type
LED
Type
Linear Hi-Bay
Voltage
120 Volt
Wattage
110 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Nuvo Lighting

General Product Info

12-Digit UPC
045923657283
Finish
White
GTiN
00045923657283
Product UPC
04592365728
Weight
5.07 lb

Dimensions

Height
1.77 Inch
Length
14.17 Inch
Warranty Length
5 yr
Width
11.02 in

Certifications and Compliance

CA Prop65 Warning
Lead
Country of Origin
Vietnam
Features
  • CCT and Wattage Selectable
  • Flicker Free Driver
  • Integrated Sensor Port
  • 41-inch Suspension Kit Included
  • 6kV Surge Protection
  • 5 Year Warranty
  • White Finish
Includes
  • 41 Inch Suspension Kit
Prop 65
  • Lead
