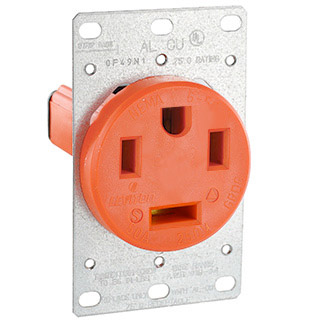

Product image for LEV 9460-IG OR REC SGL FL MNT IG 3P
Image thumbnail 0
Image thumbnail 1
Email

LEV 9460-IG OR REC SGL FL MNT IG 3P

Manufacturer: Leviton Mfg Co | Catalog # 9460-IG | Cooper Electric Part # 2206065
$190.42/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
60 Amp, 125/250 Volt, NEMA 14-60R, 3P, 4W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Isolated Ground, , Side Wired, Steel Strap, - Orange

Technical Information

Amperage
60 Amp
Applications
Commercial
Body Material
Nylon
Conductor Size
4 AWG
Connection Type
Side Wired
Device Type
Straight Blade Receptacle
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Face Material
Nylon
Flamability Class
Rated V-2 Per UL94
Grounding
Isolated Ground
Horsepower
3-1/2 hp
Material
Thermoplastic
Mounting Type
Box
NEMA
WD-6
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
3.75 H x 2.75 W x 2.10 D IN
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 - 60 degrees C
Temperature Rise
150 %
Type
Power Receptacle
Voltage
125 Volt
Wire Count
4
Wire Size
14-6 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Locking Devices

General Product Info

12-Digit UPC
078477843260
Color
Orange
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477843260
Product UPC
07847784326

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
NEMA
  • 14-60R
Features
  • Levitons line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
