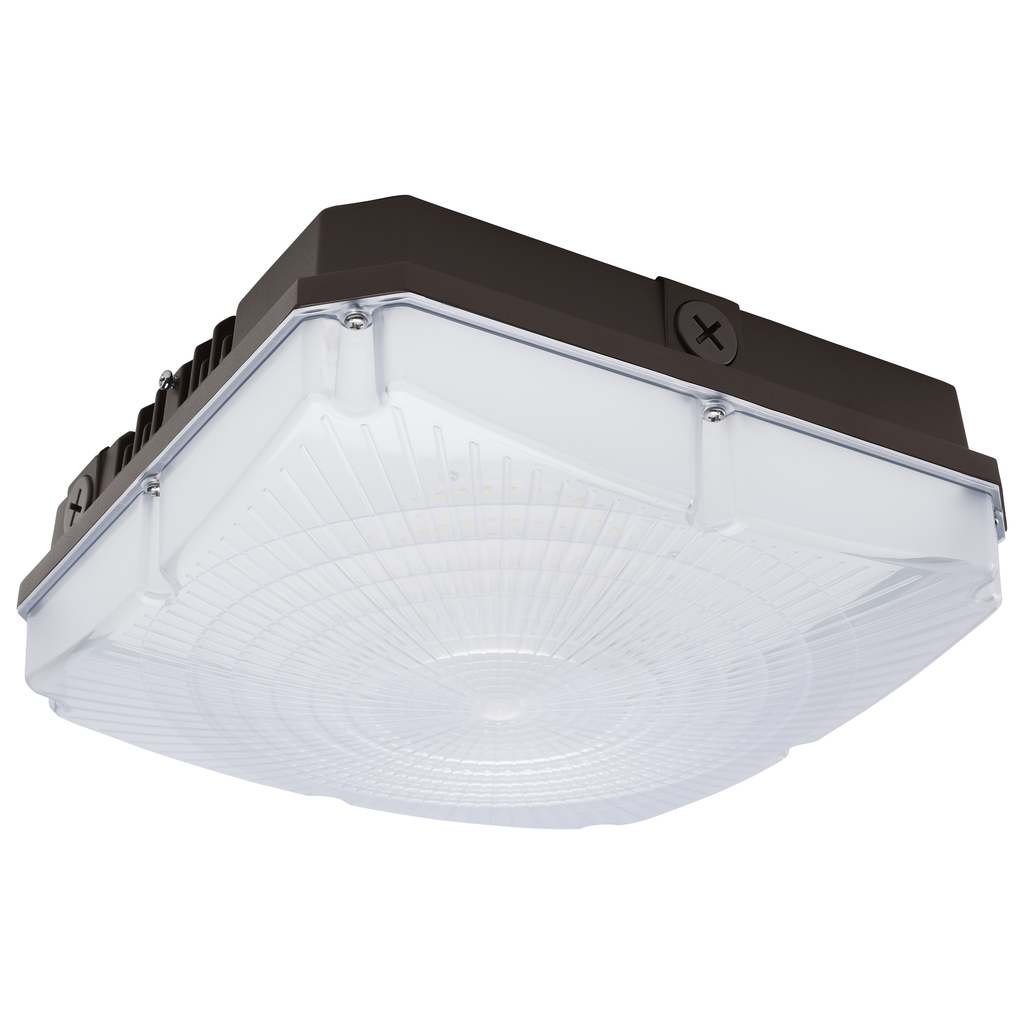

Product image for SAT 65/981 10IN 70W LT FX

Email

SAT 65/981 10IN 70W LT FX

Manufacturer: Satco | Nuvo | Catalog # 65/981 | Cooper Electric Part # 2193262

$148.81/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
SATCO|NUVO's 65-981 Field Selectable 10 inch square canopy fixture is an ideal choice for multiple applications. This fixture gives users the flexibility to choose from three wattage and three CCT options during installation. With a choice of surface mounting using the hinged universal bracket or 3/4-inch pendant mounting, installation of this luminary is a breeze. The two side knockouts allow for wiring access to be fast and efficient. The sleek bronze die-cast aluminum housing, the IK08 impact-rated vandal-resistant polycarbonate lens, and the IP65 wet location rating, ensures reliable illumination even in the most adverse weather conditions.

Technical Information

Average Rated Life
50000 hr
Beam Spread
150
Color Temperature
Soft White To Natural Light
Correlated Color Temp
3000 K
Dimmable?
Yes
Incandescent Equivalent
300 W
Indoor Outdoor
Outdoor
IP Rating
IP65
Lens Color
Clear
Lens Material
Polycarbonate
Lumens
5,625 Lumen
Material
Aluminum
Operating Temperature
-22 degrees F
Power Factor
0.9
Style
Utility
Technology Type
LED
Type
Canopy
Voltage
120 Volt
Wattage
45 Watt
Wet Location
Wet

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Nuvo Lighting

General Product Info

12-Digit UPC
045923659478
Finish
Bronze
Fixture Type
Square
Product UPC
04592365947
Weight
5.03 lb

Dimensions

Height
4.19 Inch
Length
10.06 Inch
Warranty Length
5 yr
Width
10.06 in

Certifications and Compliance

CA Prop65 Warning
Lead
Country of Origin
Vietnam
Features
  • CCT and Wattage Selectable
  • Ceiling or Pendant Mounting
  • Hinged Universal Mounting Bracket
  • 6kV Surge Protection
  • IP65 and IK08 Vandal Resistant
  • Wet Location Rated
  • 50,000 Hour Functional Life
  • 10 Inch Square Fixture
  • B3-U3-G3 Rating
  • UV stabilized powder coated finish
Prop 65
  • Lead
Accessory Products
  • 65-150
  • IP710-LFZ
  • DS710-10Z
  • SF10P
  • DF10P
  • DVSTV
  • NFTV
  • DVSCSTV
  • MS-Z101
  • MS-Z101-V
  • NTSTV-DV
  • CD4FBLW
  • ADPD4FBL3P2W4
  • RH4FBL3PTCCCV6
  • RMJS-8T-DV-B + PJ2-3BRL-GWH-L01
Replaced By Products
  • 65-142
  • 65-143
  • 65-144
  • 65-145
  • 65-146
  • 65-147
  • 65-148
  • 65-149
