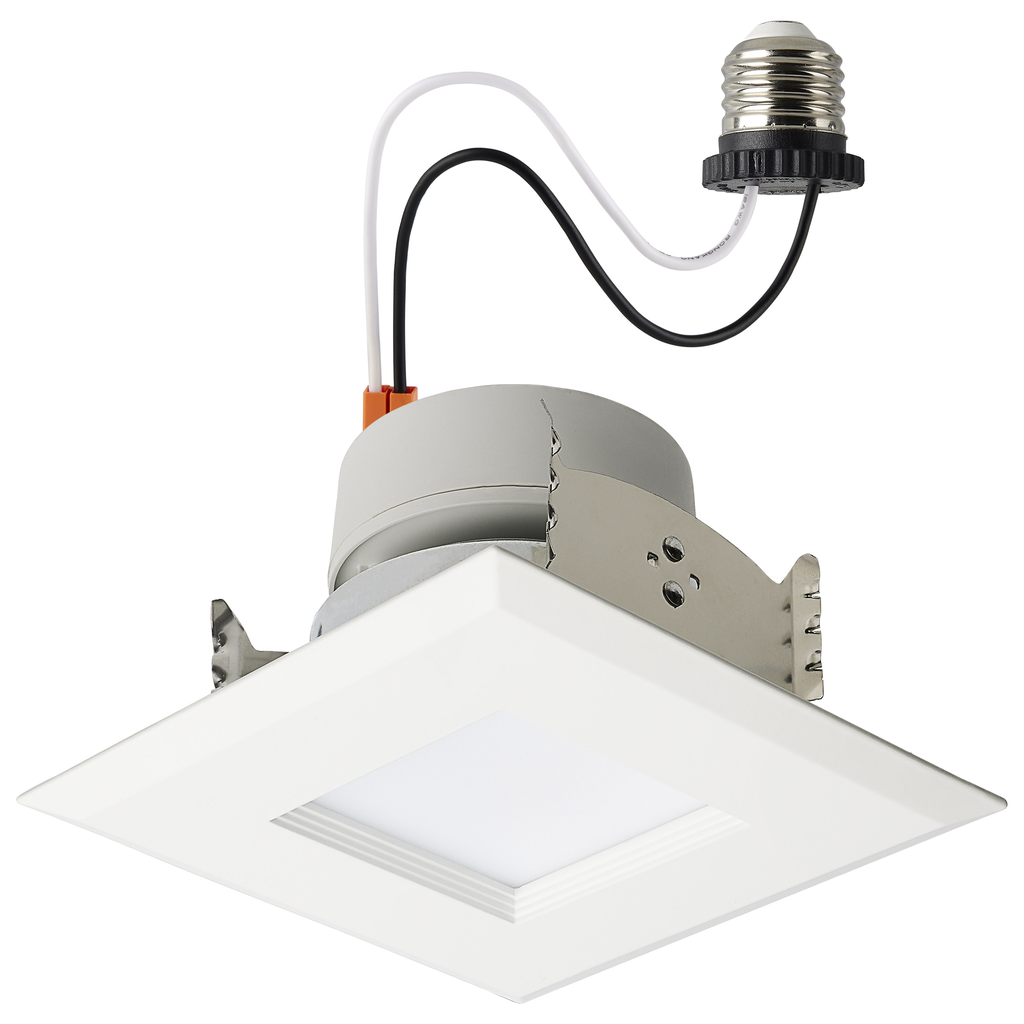

Product image for SATCO S18802 8LED/RDL/4/WS/5CCT/SQ
Email

SATCO S18802 8LED/RDL/4/WS/5CCT/SQ

Manufacturer: Satco | Nuvo | Catalog # S18802 | Cooper Electric Part # 2191969
$24.62/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
SATCO|NUVO's new S18802, LED Field Selectable Retrofit Downlight, is the effortless solution for upgrading recessed lighting in your space. With two on-unit switches, the adjustment of both the input wattage and color temperature is a breeze and allows for the perfect task driven customization of your lighting needs. This 4-inch square fixture offers a stepped baffle design reducing glare and adding dimension to your space. With its traditional look, this downlight will provide beautiful lighting in any environment.

Technical Information

Amperage
0.046/0.054/0.067 Amp
Applications
Recessed Lighting
Average Rated Life
50000 hr
Beam Spread
90
Color Temperature
Warm White To Natural Light
Correlated Color Temp
2700 K
Dimmable?
Yes
Incandescent Equivalent
60 W
Indoor Outdoor
Indoor
Lamp Type
LED
Lens Color
Frost
Lens Material
Polycarbonate
Lumens
500 Lumen
Material
Aluminum ADC12
Number of Lamps
1
Operating Temperature
-20 degrees C
Power Factor
0.9
Reflector Finish
Step
Style
Utility
Technology Type
LED
Type
Downlight Retrofit
Voltage
120 Volt
Wattage
5.5 Watt
Wet Location
Wet

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923188022
Finish
White
Fixture Type
Square
GTiN
00045923188022
Product UPC
04592318802
Weight
0.59 lb

Dimensions

Height
3.13 Inch
Length
5.31 Inch
Warranty Length
5 yr
Width
5.31 in

Certifications and Compliance

CA Prop65 Warning
Lead
Country of Origin
China
Features
  • Field Selectable (CCT and Wattage)
  • Stepped Baffle for Reduced Glare
  • 90 CRI
  • E26 Adapter Included
  • T20 and T24 Compliant
  • Aluminum Construction with Polycarbonate Lens
  • 50,000 Hour Functional Life
Prop 65
  • Lead
Includes
  • E26 Adapter included (S9001)
