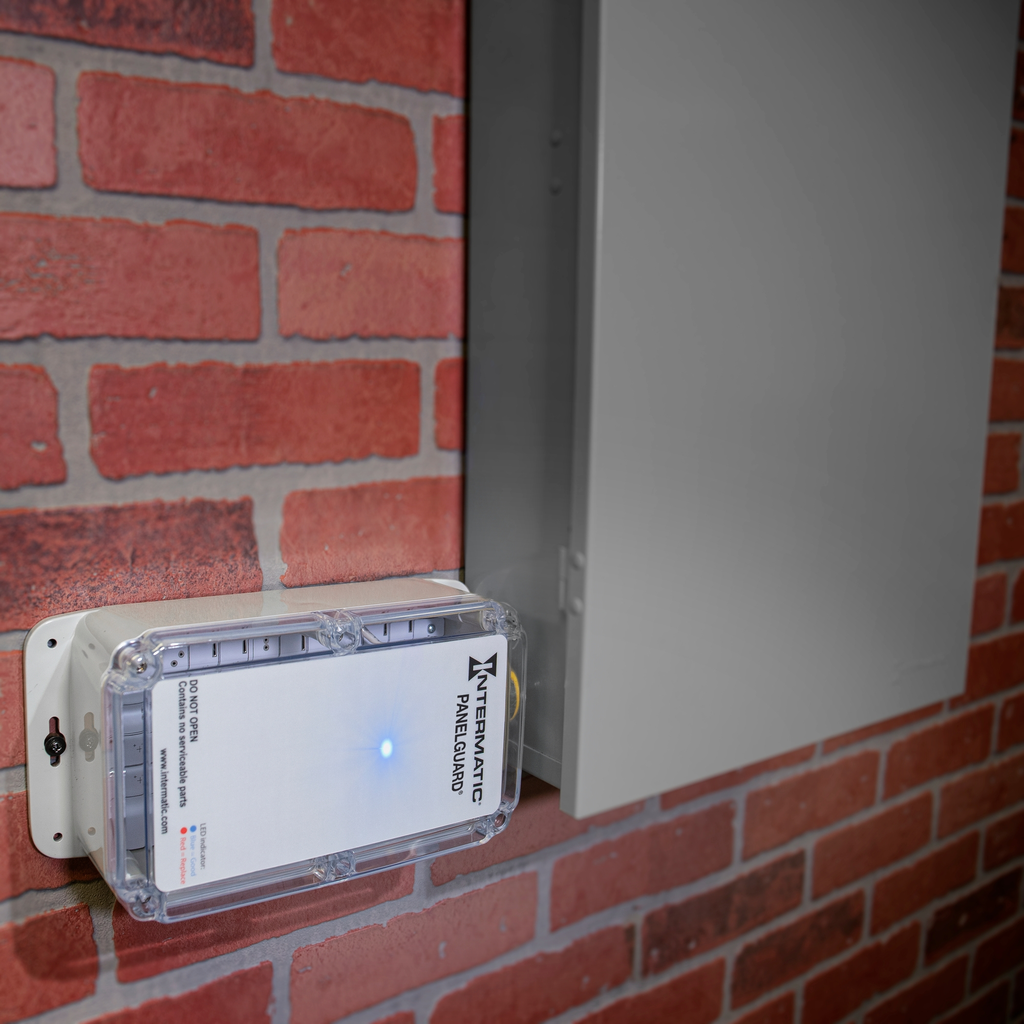

Product image for INT-MAT L10F23N4DG1 Surge Protectiv
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

INT-MAT L10F23N4DG1 Surge Protectiv

Manufacturer: Intermatic, Inc | Catalog # L10F23N4DG1 | Cooper Electric Part # 2186643
$1,855.94/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.

Technical Information

Applications
Distribution Panel,Service Entrance
Max Operating Temperature
176 degrees F
Min Operating Temperature
-40 degrees C

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275151895
Color
Gray
GTiN
00078275151895
Product UPC
07827515189
Weight
0.6 lb

Dimensions

Depth
3.29 Inch
Height
10.59 Inch
Warranty Length
5 yr
Width
5.25 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
USA
Features
  • Type 2 surge protection
  • Optional audible alarm and dry relay contacts
  • 4 Modes of protection
  • NA
  • NEMA 4X enclosure for indoor or outdoor installation
  • Individually integrated disconnect TPMOV surge protection technology
  • Optional advanced electrical noise filter (UL 1283)
  • Blue LED protection status indicator, and red LED service indicator
  • UL Listed to ANSI/UL 1449 5th Edition
