Action
BY 30A CAM,LATERAL APPROACH, 1 OR 2 PROGRAMMABLE DIRECTION,SNAP ACTION
Actuator
SPRING RETURN ROLLER LEVER METAL
Contact Configuration
1 C/O
Operating Cycles
5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
36 MM,43 MM,84-84 MM
Standard
CENELEC EN 50041,CSA C22.2 No 14,EN 60204-1,EN 60947-5-1,IEC 60204-1,IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.75...2 X 1.5 MMA
Type

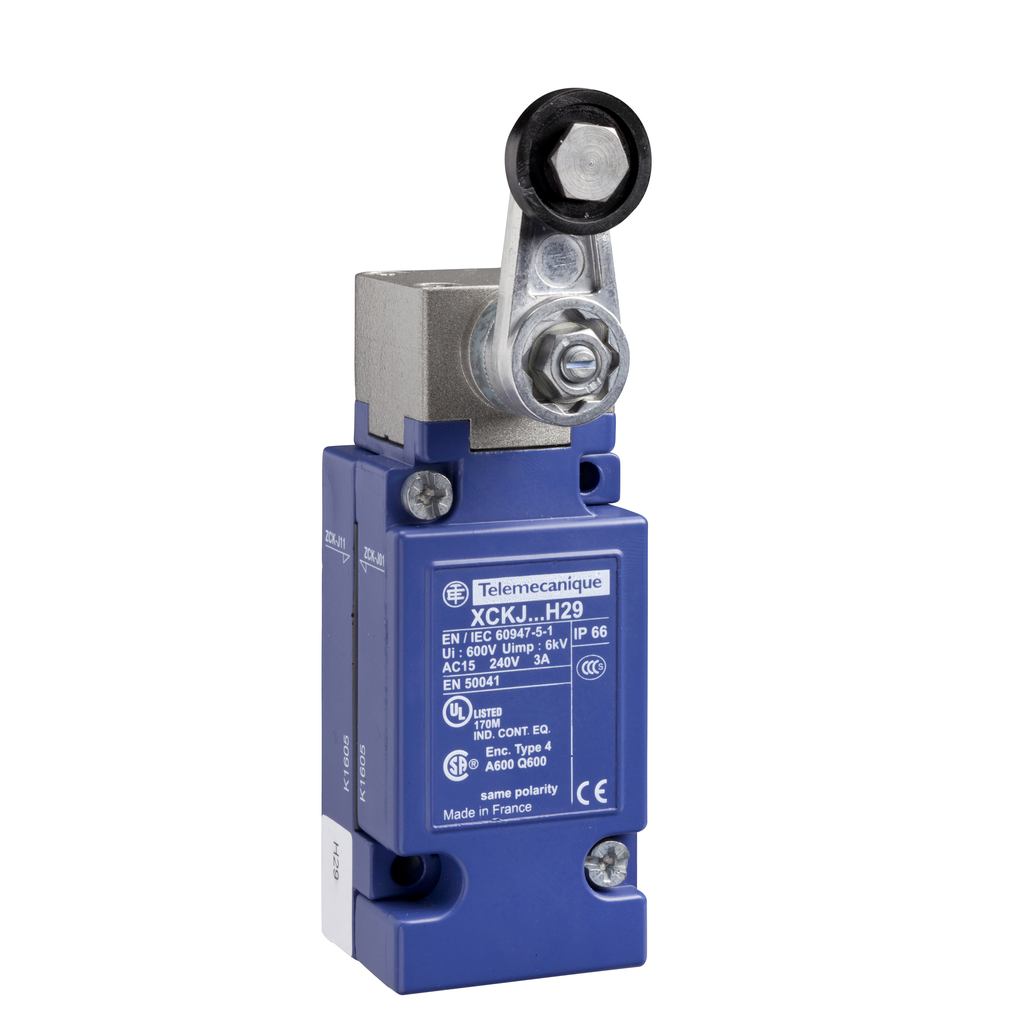

LIMIT SWITCH,ROTARY HEAD
Voltage
3 A 240 Volt, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 Volt, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
