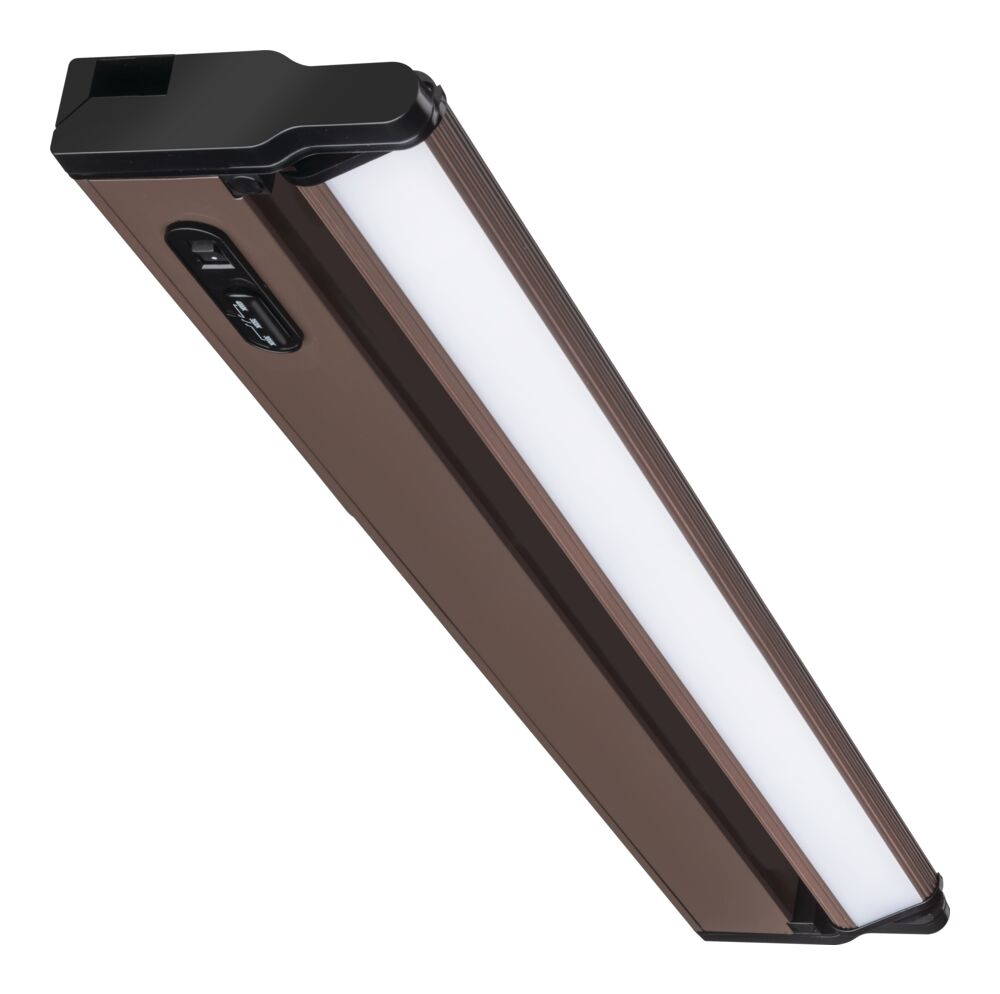

Product image for LITH UPLD 09IN SWW4 90CRI BZ M6 LED
Image thumbnail 0
Image thumbnail 1
Email

LITH UPLD 09IN SWW4 90CRI BZ M6 LED

Manufacturer: Juno Lighting | Catalog # UPLD 09IN SWW4 90CRI BZ M6 | Cooper Electric Part # 2176929
$108.36/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The UPLD Swivel LED undercabinet includes an easily accessible on/off switch plus an additional switch to select a 3000K, 3500K or 4000K color temperature. This undercabinet also has a swiveling lightbar with 20. of adjustment to highlight the backsplash or items on the countertop which is ideal for use over and under cabinets, display cases, task lighting, office lighting, coves and utility/work areas.

Technical Information

Applications
Education,Government,Healthcare,Hospitality,Offices & Banks,Residential,Retail
Color Rendering Index
90
Color Temperature
3000 ,3500 ,4000 ,Variable K
Correlated Color Temp
3000 ,3500 ,4000 ,Variable K
Dimmable?
Yes
Lamp Type
LED
Lens Color
Clear
Lens Material
Acrylic
Lumens
1,100 Lumen Lumen
Material
Steel
Mounting Type
Flush
Power Source
Hardwired,Plug-In
Type
Undercabinet
Voltage
120 Volt
Wattage
4.47 Watt

Manufacturer Information

Brand
Juno Lighting

General Product Info

12-Digit UPC
193048486735
Color
Bronze
Environmental Conditions
Indoor
Finish
Brushed
GTiN
00193048486735
Product UPC
19304848673
Shape
Rectangle
Weight
0.8 lb

Dimensions

Height
1.13 Inch
Length
9 Inch
Width
3.72 in
Features
  • YOU CHOOSE: UPLD contains a switchable white feature allowing you to choose the color temperature in your space - 3000K (Warm White), 3500K (Neutral White) or 4000K (Cool White)
  • ENERGY SAVINGS: Long-life LEDs that duplicate the light level of Fluorescent undercabinet lighitng while only consuming up to 45% of the energy
  • DIMMABLE: 0-10V driver for dimming to 10 percent
  • RATINGS & LISTINGS: Energy Star Rated, Title 24 Listed
  • \"5-MINUTE INSTALLATION: Due to the unique rear-wire access door and captive mounting screws, you can install the fixture without having to open up the wireway or remove the lens\
  • NO MAINTENANCE REQUIRED: Long life energy efficient LED
  • ACCENT YOUR SPACE: With the integrated lightbar, highlight a backsplash or countertop area by swiveling and aiming the light front to back without the use of additional hardware
  • Emergency battery back-up not included in this version
  • 5-year limited warranty
  • Height 1.13-in x Width 3.75-in x Length 9-in
Applications
  • Education
  • Government
  • Healthcare
  • Hospitality
  • Offices & Banks
  • Residential
  • Retail
Standards
  • C-UL-US
  • NOM
  • ULCA Title 24
  • ENERGY STAR
  • JA8
