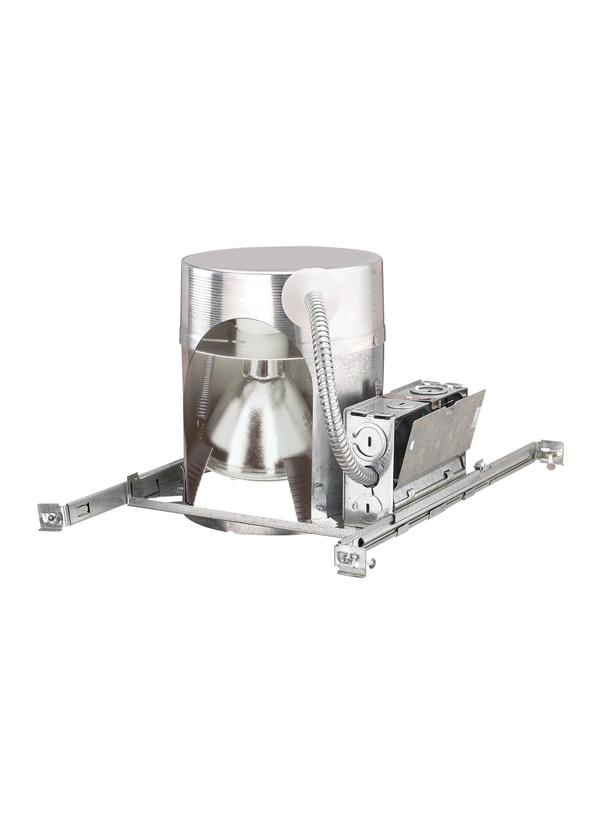

Recessed Lighting 6" New Construction IC Airtight Housing - Nickel

Manufacturer: Visual Comfort & Co. | Catalog # 1128 | Cooper Electric Part # 2160
$18.72/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
137 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet
Sea Gull Lighting designs its recessed housings for ease of installation and to exacting standards of efficiency, quality and safety. Choose from 4", 5" and 6" models for remodel or new construction projects with a variety of recessed trims for various lighting effects.

Technical Information

Bulb Included
No

Manufacturer Information

Brand
Visual Comfort

General Product Info

12-Digit UPC
785652112805
Collection
Recessed Lighting
Product UPC
78565211280
Wire Color
Black,White

Dimensions

Depth
6-3/8 Inch
Height
7-7/8 Inch
Length
13-1/2 Inch
Warranty Length
1 yr
Width
10.75 in
Features
  • Not Applicable Finish
  • Housing Adjustment: Housing adjusts vertically for various ceiling thicknesses.
  • Airtight Construction: Meets airtight requirements for 2.0 CFM or less air leakage.
  • Joist Tab: Tab to locate on bottom of joist.
  • Notch for T-Bar Ceilings: No clips required. Secure bar hanger to T-Bars with wires or screws.
  • Bar Hanger: Break-away bar hangers easily extend and will not fall out of plaster flange, providing sturdy installation.
  • Quick Hit: Integral captive nails included and positioned for fast, easy installation.
  • Hinged Door: The hinged junction box door allows full access for wiring while remaining attached to the recess housing.
  • Bar Hanger Locking Screw: Tighten screw to lock bar hangers in place.
  • Junction Box with Integral Romex Connector: Junction box with integral romex connector, quick-push and lock connector and through circuit wiring with 4 in, 4 out #12 wire, saves installation time.
  • Safe- Thermally Protected/Listed for Damp Location: IC housing is approved for use in direct contact with insulation.
