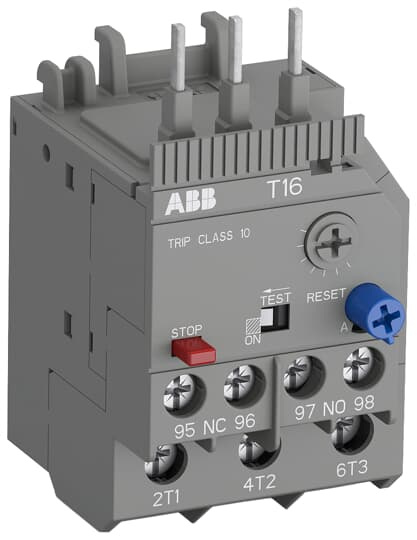

ABB T16-1.3 TOL,AS/L,B/C,CLASS-10,1

Manufacturer: ABB Low Voltage | Catalog # T16-13 | Cooper Electric Part # 2159210
$106.28/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
The T16-10 thermal overload relay is an economic electromechanical protection device for the main circuit. it offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. further features are the temperature compensation, trip contact (nc), signal contact (no), automatic- or manUAl reset selectable, trip-free mechanism, stop function and a trip indication. The overload relays are connected directly to the mini contactors or block contactors. single mounting kits are available as accessory.

Technical Information

Amperage
1-1.3 Amp
Applications
For Reliable Protection of Motors in the Event of Overload or Phase Failure
Contact Configuration
1 NO, 1 NC
Enclosure Rating
IP10
Enclosure Type
IP10
Number of Poles
3 Pole
Size
3.02x1.77x2.11 Inches
Standard
EN 60947-1IEC,EN 60947-4-1IEC,EN 60947-5-1UL 60947-1UL 60947-4-1,IEC
Temperature Rating
-25 to 60 degrees C
Type
Manual/Auto Reset
Voltage
600 VAC/VDC Auxiliary, 690 VAC Main

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
804325585422
Class
Class 10
GTiN
00804325585347
Product UPC
01361439796
Used With
B6, BC6, B7, BC7, VB6, VBC6, VB7, VBC7, AS09, AS12 and AS16 Series Contactor
