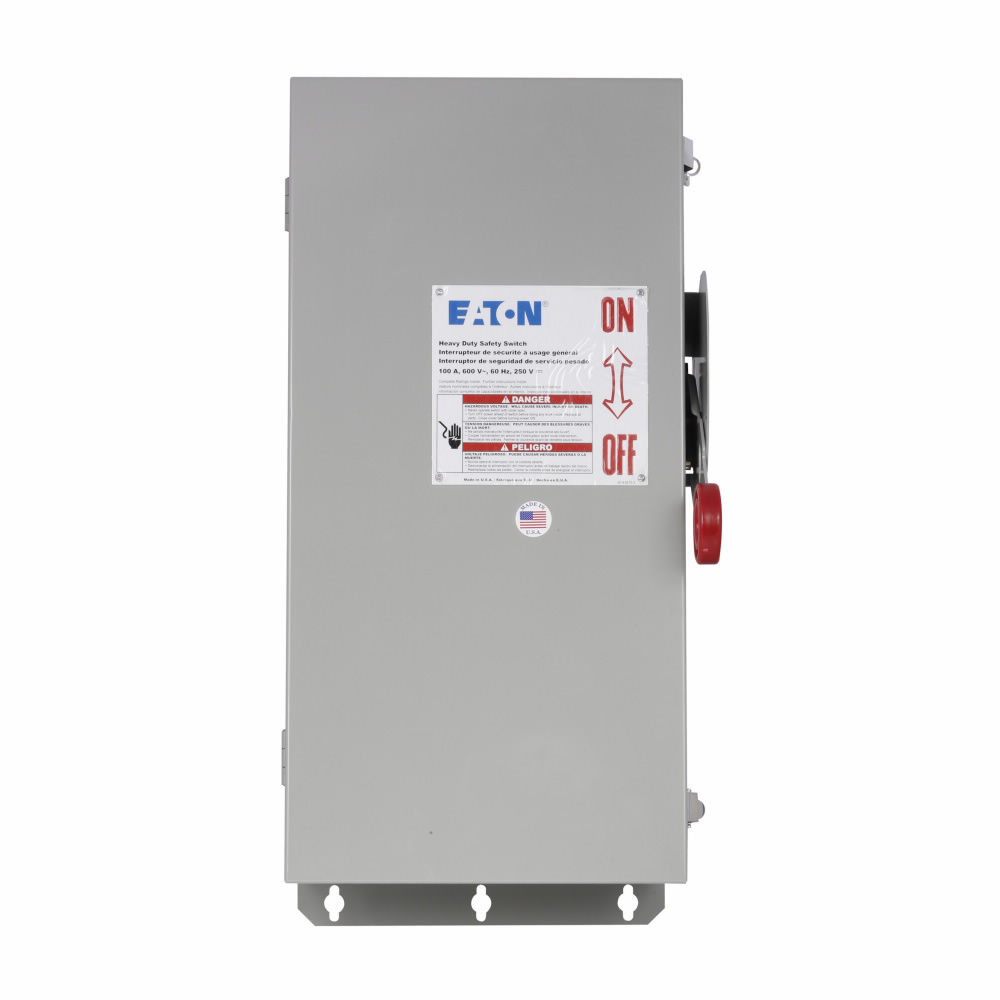

Product image for ETN DH323NDK 100A/3P HD FUS SftySw
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

ETN DH323NDK 100A/3P HD FUS SftySw

Manufacturer: Cutler-Hammer / Eaton | Catalog # DH323NDK | Cooper Electric Part # 2155155
$1,026.50/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Eaton Heavy duty single-throw fused safety switch, 100 A, NEMA 12/3R, Painted galvanized steel, Class H, Fusible with neutral, Three-pole, Four-wire, 240 V, Max Hp: 7.5, 15/ 15, 30/ 20 hp (1,3PH @Std/TD/250 Vdc), #14-#1/0 Cu/Al

Technical Information

Amperage
100 Amp
Applications
Commercial / Institutional Buildings / Structures - Power Distribution and Controls
Conductor Size
14-1/0 AWG
Enclosure
NEMA 12/3R
Enclosure Material
Steel
Material
Steel
NEMA Size
12,3R
Number of Poles
3 Pole
Number of Wires
4 Wire
Type
Heavy Duty Fusible Safety Switch
Voltage
240 Volt
Wire Size
14-0 AWG

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
782113206332
GTiN
00782113206332
Product UPC
78211320633
Weight
30 lb

Dimensions

Height
24.95 Inch
Length
10.22 Inch
