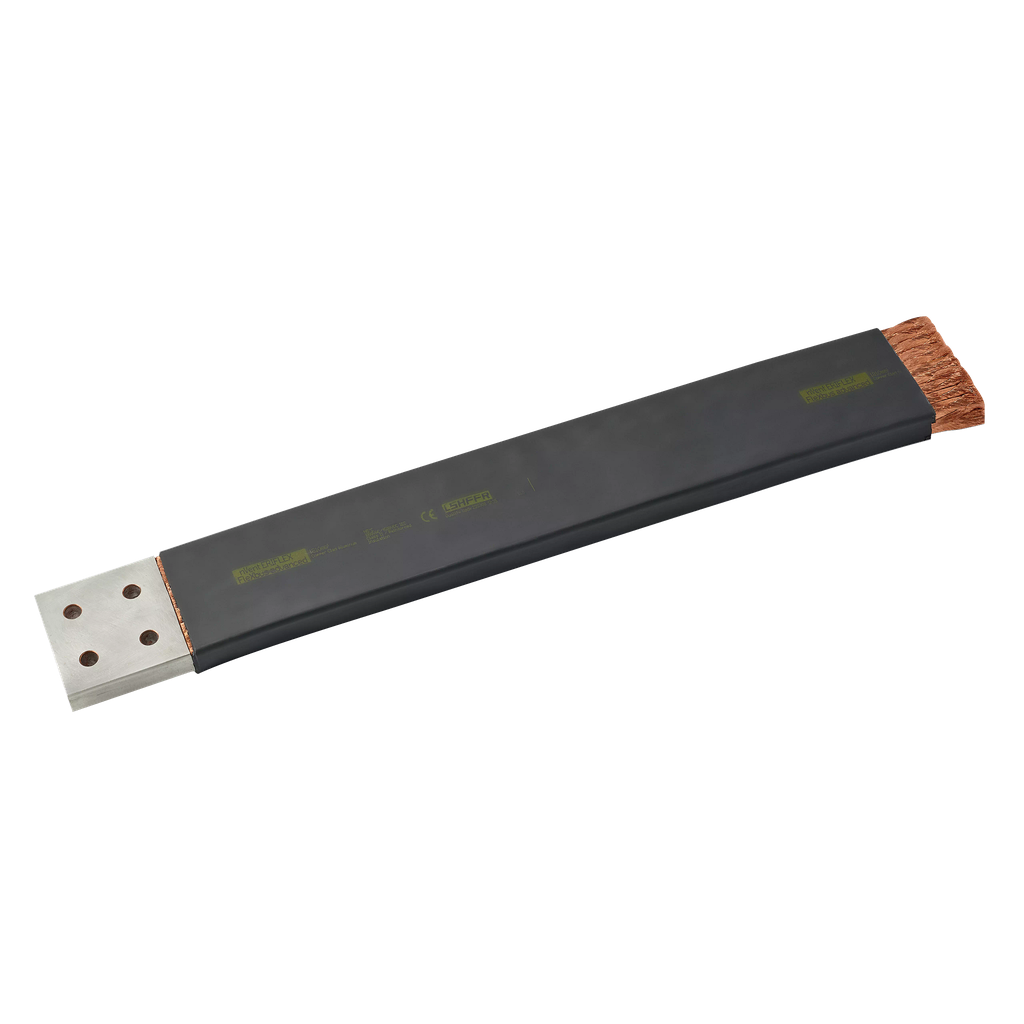

Product image for ERC 508062 4M FLEXBUS CONDUCTOR
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

ERC 508062 4M FLEXBUS CONDUCTOR

Manufacturer: Erico, Inc | Catalog # 508062 | Cooper Electric Part # 2154899
$2,797.82/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
nVent ERIFLEX FleXbus Conductor is ready-to-use from one side with direct connection to busbar or circuit-breaker palm. 2.806 in², 157.48" x 1.97" x 1.97" x 0.98" x 68.34 lb.

Manufacturer Information

Brand
nVent Eriflex

General Product Info

12-Digit UPC
784805037941
Product UPC
78480503794
Weight
31.00 kg
Features
  • Flexible insulated copper-plated, aluminum flat braid
  • Better current/ampacity than cable due to skin effect
  • Much more flexible than cable
  • No bending radius to respect

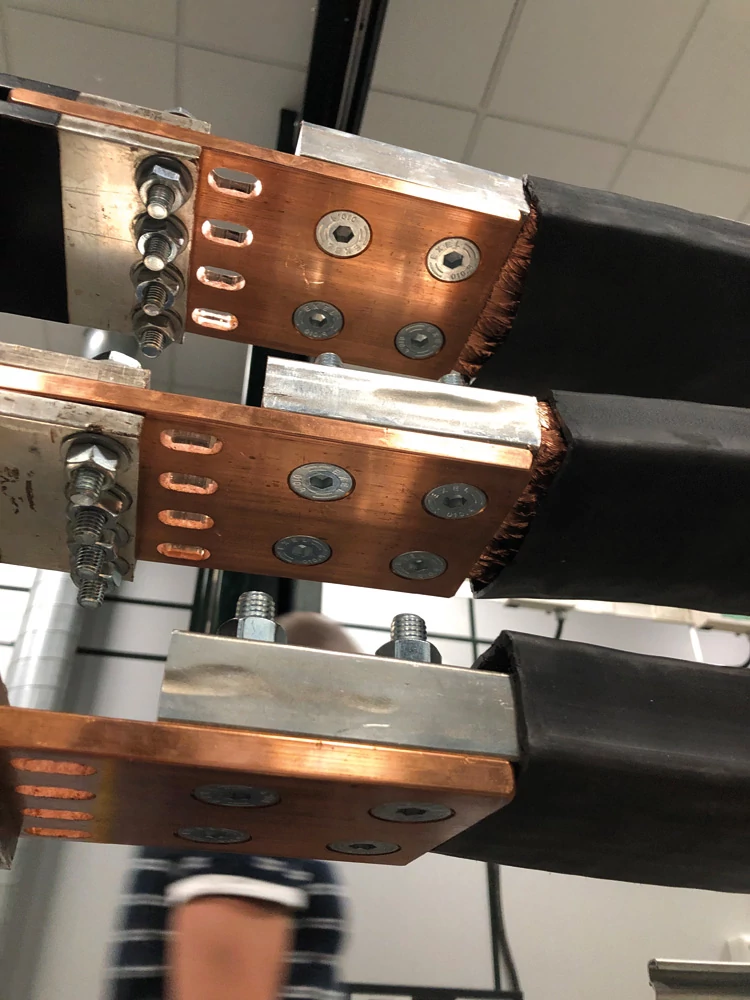

  • Ready-to-use from one side with direct connection on busbar or circuit breaker palm
  • Only one conductor per phase from 400kVA (560 A) to 1600kVA (2250 A) and two conductors per phase for 2000kVA (2800 A) to 3150kVA (4435 A)
Certifications
  • FleXbus Temp. Rise IEC 61439-1, IEC 60364
  • IEC 60695-2-12 IEC 60695-2-12
  • CE, ERIFLEX FleXbus EN IEC 61439-1; EN IEC 60364; EN IEC 61914
  • IEC 61439-1:2011 CL2 IEC 61439-1:2011
  • ERIFLEX UV IEC 60364-5-52, ISO 4892-2
  • ERIFLEX FleXbus LSHFFR?? IEC 61034-2; ISO 5659-2; UL 2885; IEC 60754-1; IEC 62821-2; UL 94; IEC 60695-2
  • IEC 61439-1 Class II ERIFLEX FleXbus Conductor IEC 61439-1 Class II
  • IEC 61439-1 ERIFLEX FleXbus Conductor IEC 61439-1 Class II
  • IEC 61439-1 FleXbus IEC 61439-1
  • UR, AVLV2.E316390, FleXbus ANSI/UL 758
  • UR, QEUY2.E125470, FleXbus Conductor ANSI/UL 67, ANSI/UL 891?
