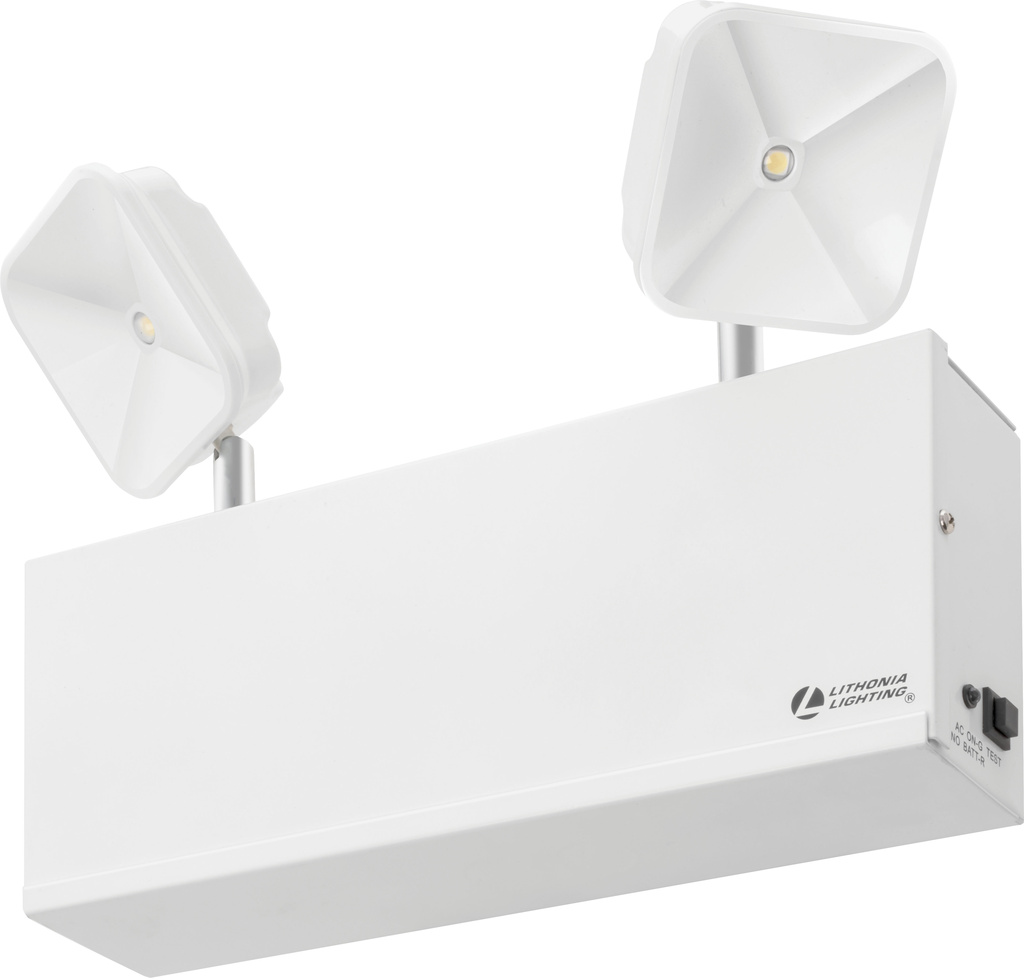

Product image for LITH TCU 750L M4 Commercial Steel U
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

LITH TCU 750L M4 Commercial Steel U

Manufacturer: Lithonia Lighting | Catalog # TCU 750L M4 | Cooper Electric Part # 2150937
$133.83/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The TCU Commercial Steel Light provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power to meet and exceed code required emergency lighting. Ideal for applications where steel housing emergency lighting is required. Meets City of Chicago Requirements.

Technical Information

Applications
Parking Garage,Special Applications,Sports And Recreation,Warehouses
Color Rendering Index
80
Color Temperature
6500 K
Correlated Color Temp
6500 K
Lamp Type
LED
Lumens
750 Lumen
Material
Thermoplastic
Mounting Type
Surface
Type
Emergency Lighting Unit
Voltage
120 Volt
Wattage
5 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
196182367922
Color
White
Construction
New Construction
Environmental Conditions
Indoor
Finish
Matte
GTiN
00196182367922
Product UPC
19618236792
Weight
3.91 lb

Dimensions

Height
2-1/2 Inch
Length
12.59 Inch
Width
9.58 in
Standards
  • CSA
  • NFPA 101
  • NFPA 70
  • ULCA Title 20
  • Chicago Life Safety
  • FCC 47CFR Part 15 Consumer
Features
  • APPLICATIONS: Provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power to meet and exceed code required emergency lighting, Ideal for applications where steel housing emergency lighting is required
  • COMPATIBILITY: Chicago Approved
  • RATINGS: UL damp location listed at 32-104°F (0-40°C), Meets or exceeds all applicable requirements for UL 924, NFPA 101, NFPA 70, California Energy Commission Title 20, Listed and labeled to comply with Canadian Standards C22.2 No 141-10
  • VOLTAGE: UVOLT (120 thru 347V, 50/60hz), Current-limiting charger maximizes battery life and minimizes energy consumption to provide low operating costs
  • HOURS OF LIFE: The typical life of the LED lamp is 10 years
  • DESIGN: 20-gauge steel housing, finished with corrosion-resistant instrument enamel
  • BATTERY: Nickel Metal Hydride battery (9.6V)
  • WARRANTY: 5-year limited warranty (Battery is prorated)

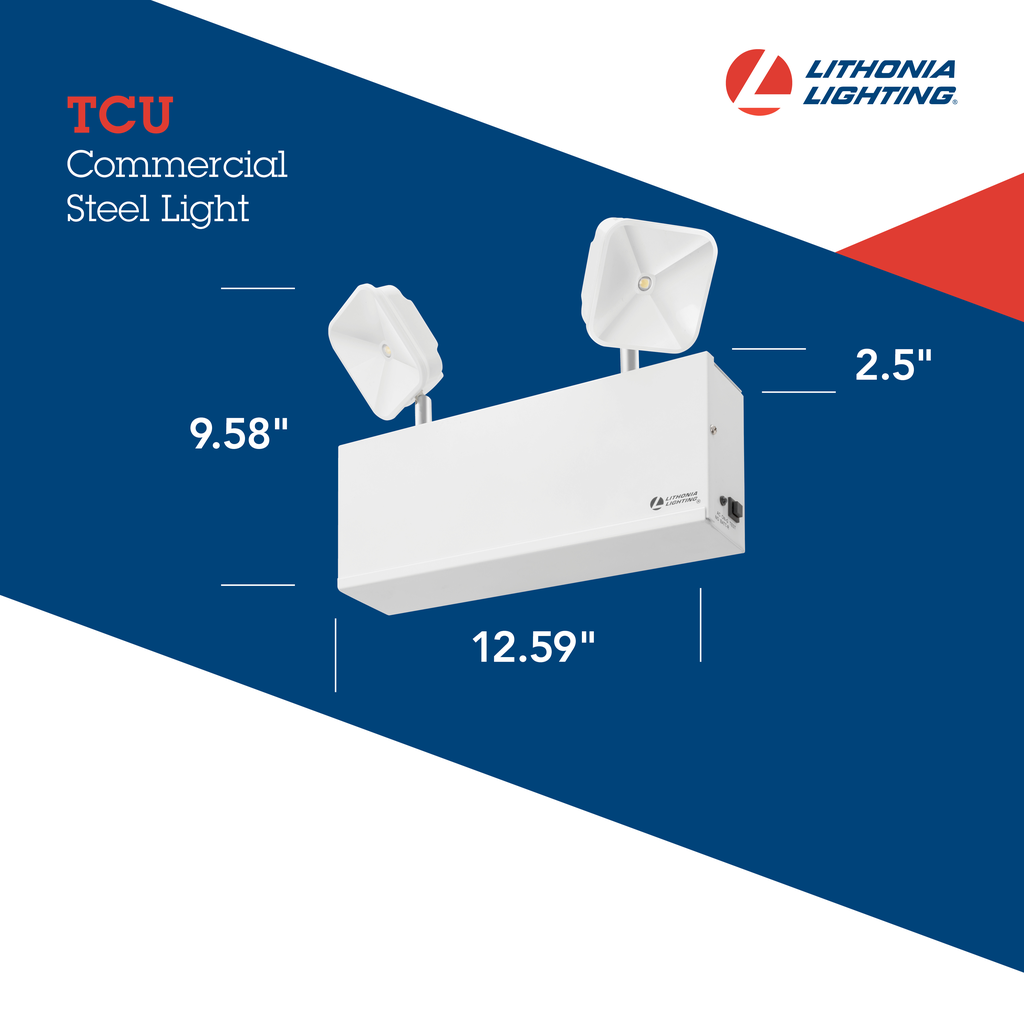

  • DIMENSIONS: Length: 12.59\" x Height 9.58\" x Width 2.5\
Applications
  • Parking Garage
  • Special Applications
  • Sports and Recreation
  • Warehouses
