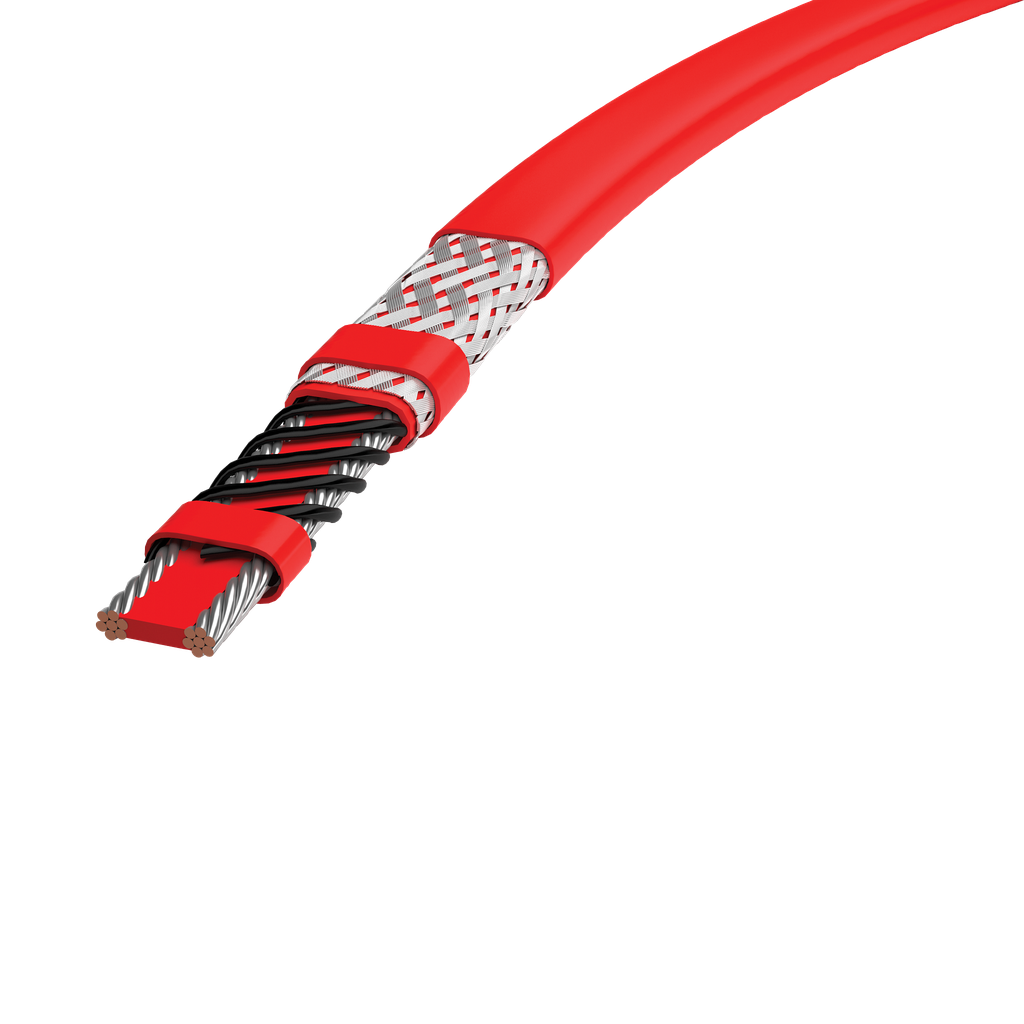

Product image for NVENT RAY 2000003074 Heating Cable
Email

NVENT RAY 2000003074 Heating Cable

Manufacturer: Raychem | Catalog # 2000003074 | Cooper Electric Part # 2149079
$33.42/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
Freeze protection and continuous operation up to 302°F/150°C. Maximum exposure 482°F/250°C. Safe and hazardous area. 120 V, 10 W/ft at 50°F/10°C, Fluoropolymer jacket.

Technical Information

Applications
Formed 14-gauge steel. Continuously welded seams. Larger sizes include door and body stiffeners. Welded brackets provide for enclosure mounting. Formed lip on door and enclosure exclude flowing liquids and contaminants. Cutouts and holes are provided to suit the flange handle operating mechanism. Continuously hinged doors may be removed by pulling the stainless steel hinge pin. Door is secured with easily operated stainless steel clamps. Cover interlock bracket is welded to the door. Collar studs are provided for mounting inner panels. A removable 12 gauge inner panel is included. Seamless poured-in place gasket. A bonding stud is provided on the door and a grounding stud is provided in the enclosure. A literature pocket is provided for the inside of the door.
Conductor Material
Tin Plated Copper
Type
Self-Regulating

Manufacturer Information

Brand
nVent Raychem

General Product Info

12-Digit UPC
715629421562
Color
Red
GTiN
00715629421562
Product UPC
71562942156
Features
  • High power retention (HPR) heating core
  • Power retention: At least 95% after 10 years
  • Design life: 30 years or more depending on application
  • Simplified design in hazardous area: T3 Unconditional or T6-T4 System classification
  • Longer circuit lengths due to larger cross section conductors
  • Fast installation: cut-to-length, multiple overlaps allowed, meter markings, user-friendly connections kits
  • Safe and efficient in operation: no overheating, uniform pipe temperatures, energy saving technology
  • Reliable during long life: 10 year product warranty available, maintenance free
