LUT ST-FSQ-N-IV SUNNATA FAN CONTROL

Manufacturer: Lutron | Catalog # ST-FSQ-N-IV | Cooper Electric Part # 2138761

$103.28/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
The Sunnata touch fan speed control provides 4 quiet speeds for one AC ceiling fan up to 1.5A. This innovative decorator-style fan control is single pole and requires a neutral connection. It features a large intuitive paddle to turn ceiling fans On/Off and has a sleek light bar you can touch to set the fan.s speed. The soft glow light bar also doubles as a locator light in dark rooms . myLevel programming is available to customize the brightness or disable the lightbar. Ceiling fans with integrated fan speed light modules, proprietary remotes, or DC motors are not compatible with this control. Create a cohesive look across your home by adding the Sunnata touch fan control to complement Lutron Sunnata LED+ dimmers and switches. Install as a 2-gang with a Sunnata LED+ touch dimmer to control a fan light kit. Available in 20+ colors. Coordinates perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Technical Information

Amperage
1.5 Amp
Mounting Type
2 1/2 in
Number of Poles
1 Pole
Operating Temperature
104 degrees F
Voltage
120 Volt

Manufacturer Information

Brand
Sunnata

General Product Info

12-Digit UPC
784276312752
Color
Ivory
Finish
Gloss
GTiN
00784276312752
Product UPC
78427631275

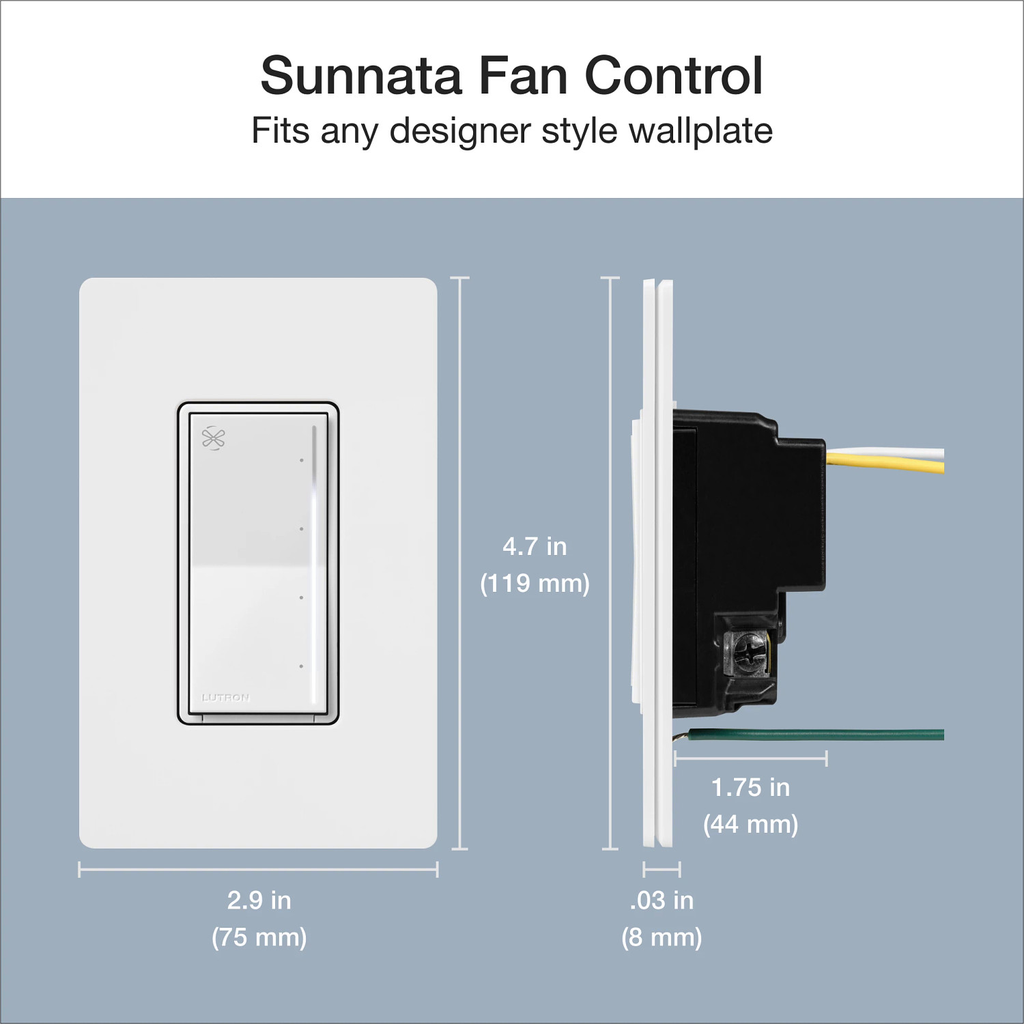

Dimensions

Height
4.687 Inch
Length
2.937 Inch
Width
0.312 in
Features
  • Includes (1) Sunnata touch fan control, Gloss finish
  • Works with up to 1.5A single ceiling fan with AC motor; Not compatible with fans with proprietary remotes or DC motors
  • Single Pole, neutral required; 120V
  • Intuitive paddle rocker fits standard designer wall plate openings

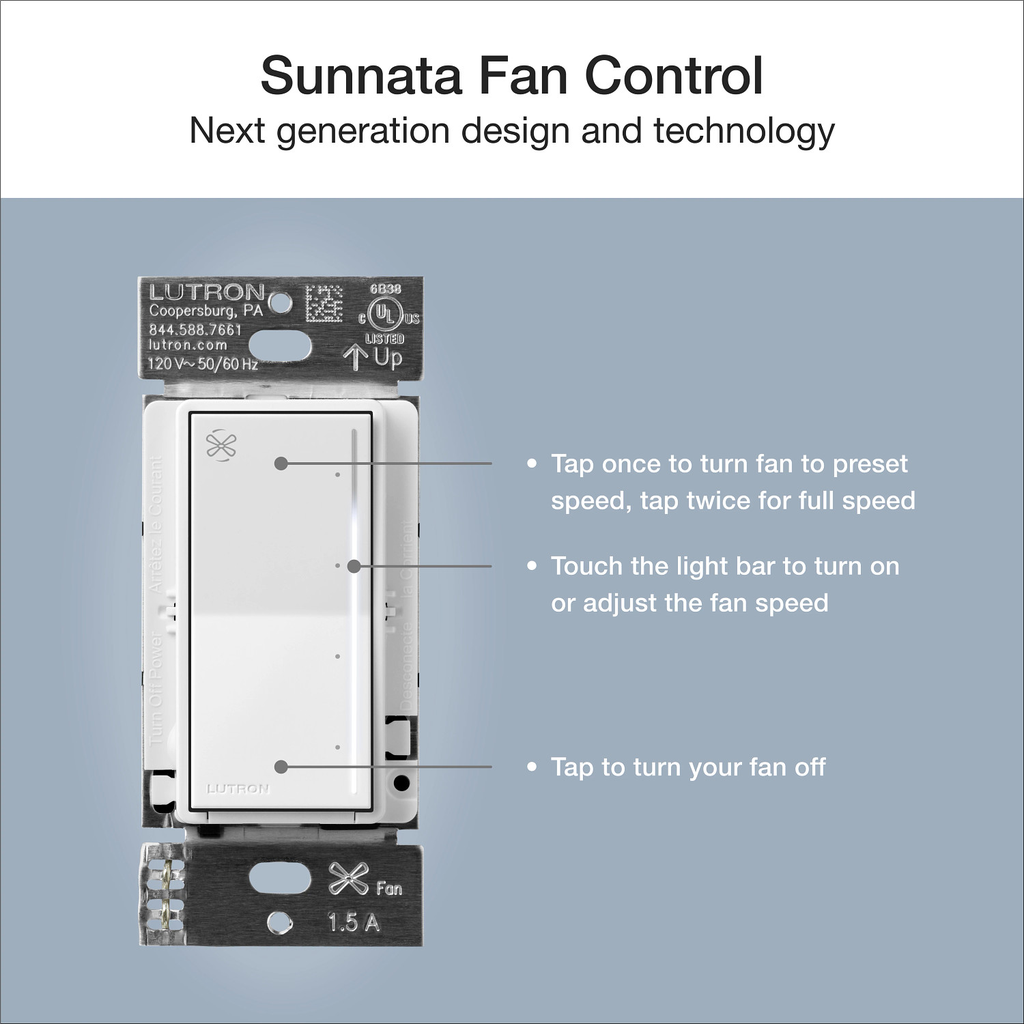

  • Touch or swipe anywhere on the light bar to turn the fan on at any of the 4 speeds
  • Soft-glow light bar helps find the fan control in the dark
  • MyLevel Personalization allows for customization; Adjust the brightness of the light bar, enable/disable the locator light, and set as favorite fan speed (?)
  • Compliments the design of Sunnata touch LED+ dimmers for a cohesive look
  • Available in 20+ colors; Coordinates perfectly with Lutron Claro wall plates
  • 24/7 lifetime technical support at 1-844-Lutron1
  • Use to control one paddle-type ceiling fan
  • Not for use with DC motor fans, fans with remote controls or Wi-Fi only fans
  • Not for use with bathroom or kitchen exhaust-type fans or to control lighting loads on a fan.
Standards and Certifications
  • UL
  • CSA
  • NOM
  • UL R Listed to U.S. and Canadian safety requirements (UL 1472 /CSA C22.2 184.1)
  • NEMA SSL-7A-2015 forward-phase compliant
