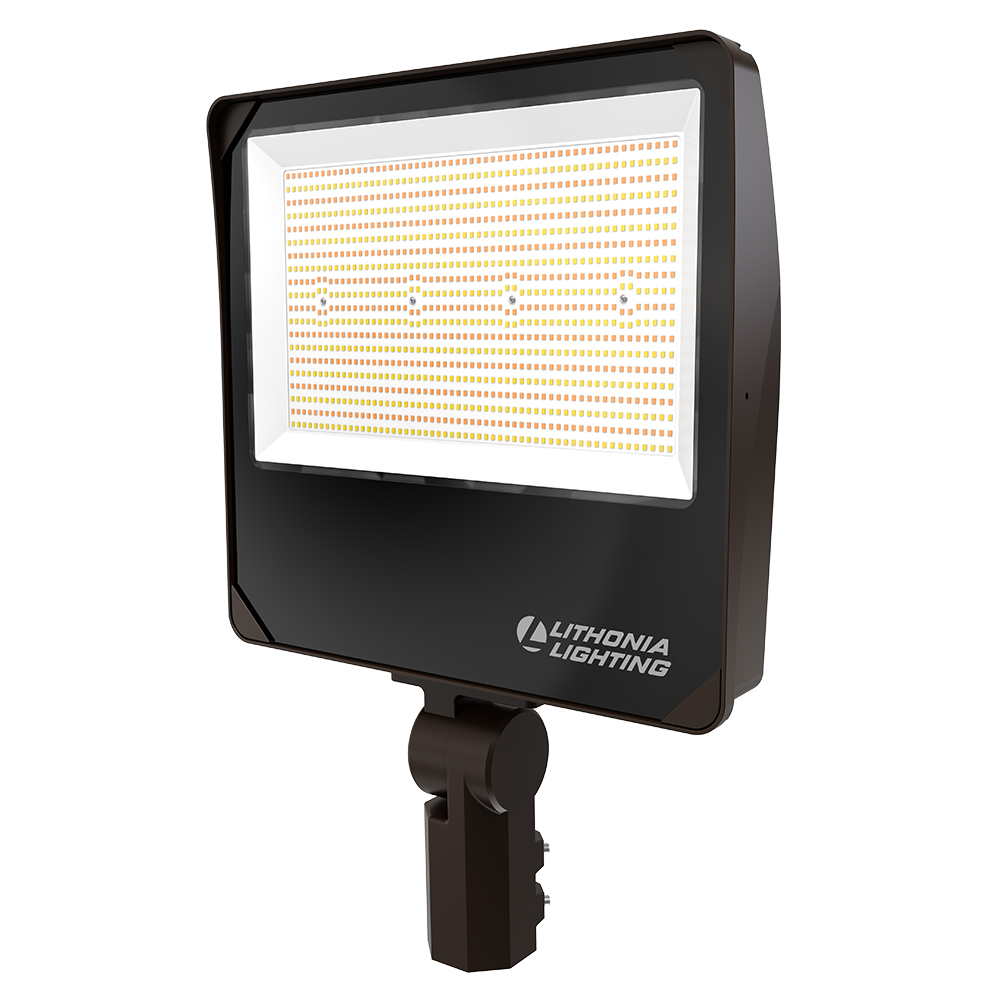

Product image for LITH ESXF5 ALO SWW2 XVOLT YS DDB ES
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

LITH ESXF5 ALO SWW2 XVOLT YS DDB ES

Manufacturer: Lithonia Lighting | Catalog # ESXF5ALOSWW2XVOLTYSDDB | Cooper Electric Part # 2132364
$753.34 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The Lithonia Lighting® ESXF5 LED all-in-one floodlight gives you the superior illumination you want. ESXF5 delivers easy access to adjustable lumen output, color switching, and a selectable photocell, so you always have the luminaire you need on the spot. Choose your mounting with two popular mounting options standard in each box; yoke or slipfitter. ESXF5 is a true replacement for 1000W HID luminaires and delivers up to 50,000 lumens.

Technical Information

Applications
Automotive & Parking,Decorative,Education,Entertainment,Food Service,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Parking Garage,Residential,Retail
Average Rated Life
36,000 hr
Color Rendering Index
80
Color Temperature
3000 K
Correlated Color Temp
3000 K
Dimmable?
Yes
Lamp Type
LED
Lumens
50,000 Lumen
Material
Aluminum
Mounting Type
Tenon Slipfitter,Yoke
Standard
C-UL-US
Voltage
277 Volt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
197589243734
Color
Bronze
Environmental Conditions
Outdoor
Finish
Gloss
GTiN
00197589243734
Product Type
Floodlight
Product UPC
19758924373
Shape
Rectangle
Weight
20 lb

Dimensions

Height
3.5 in
Length
24.5 in
Width
16 in

Certifications and Compliance

Country of Origin
Vietnam
Features
  • The Lithonia Lighting® ESXF5 LED all-in-one floodlight gives you the superior illumination you want. ESXF5 delivers easy access to adjustable lumen output, color switching, and a selectable photocell, so you always have the luminaire you need on the spot. Choose your mounting with two popular mounting options standard in each box; yoke or slipfitter. ESXF5 is a true replacement for 1000W HID luminaires and delivers up to 50,000 lumens.
  • TECHNOLOGY: Adjustable Lumen Output (ALO), Switchable White (SWW) and a Switchable Photocell (PE) allow for the ESXF5 LED Floodlight to offer 36 potential configurations within one fixture
  • ENERGY SAVINGS: Energy-efficient LEDs, coupled with a high-efficiency driver, provide exceptional illumination for extended service life
  • SELECTABLE: Adjustable Lumen Output (30,000 - 40,000 - 50,000 lumens), Switchable CCT (3000K - 4000K - 5000K) and Dusk-to-Dawn Photocell (On - Off)
  • RATINGS: IP66 Rated aluminum housing, DLC Premium Certified, CSA certified to US and Canadian standards
  • VOLTAGE: XVOLT 277-480V
  • INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources
  • INSTALLATION: Include a yoke mount for solid surface mounting and an integral slipfitter that mates with standard 2 3/8\" tenons for pole-top mounting, models ship standard with 18 SO cord
  • CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements
  • WARRANTY: Five-year limited warranty
