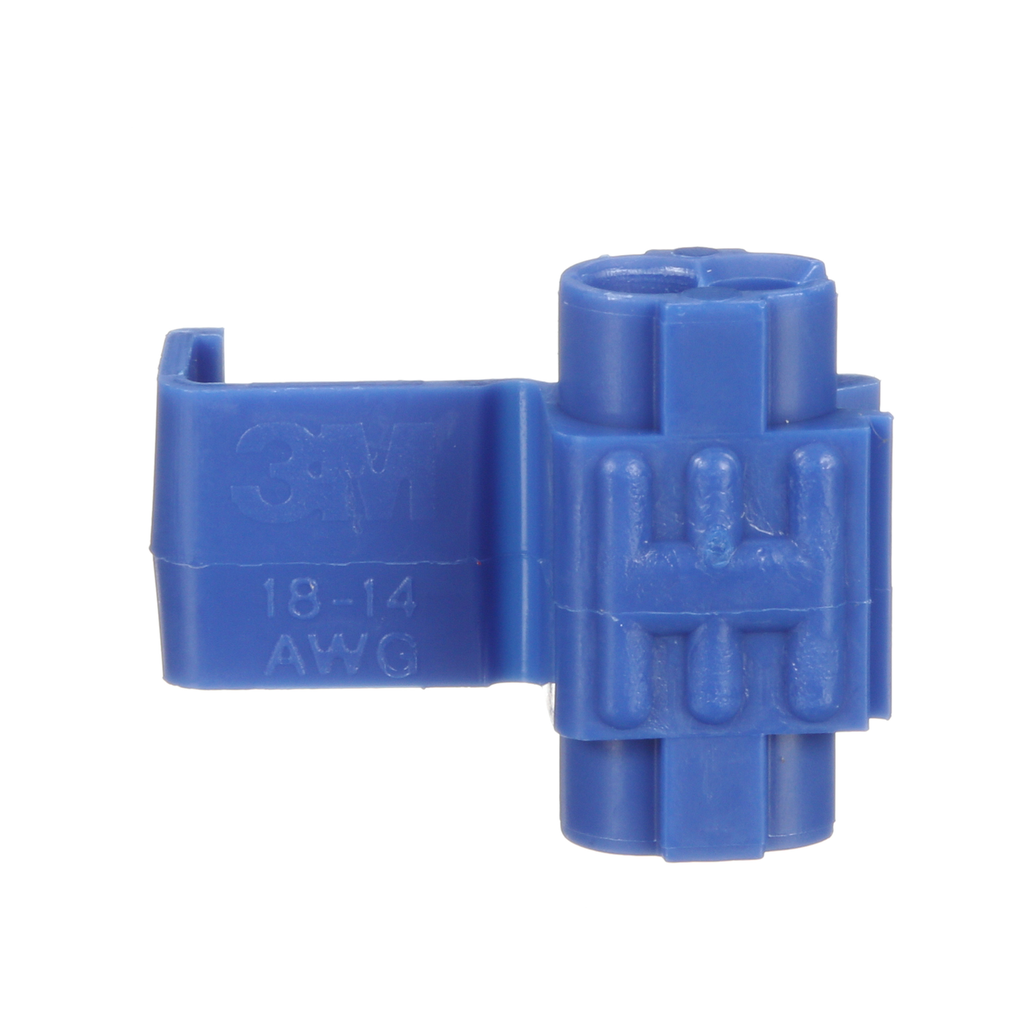

Product image for 3M 7100166938 560B-POUCH Scotchlok Electrical Insulation Displacement Connectors (IDC), Blue, 18.16 AWG (solid/stranded), 14 AWG (stranded) (100/pouch - 1000/case)
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

3M 7100166938 560B-POUCH Scotchlok Electrical Insulation Displacement Connectors (IDC), Blue, 18.16 AWG (solid/stranded), 14 AWG (stranded) (100/pouch - 1000/case)

Manufacturer: 3M | Catalog # 7100166938 | Cooper Electric Part # 212678
$0.74 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

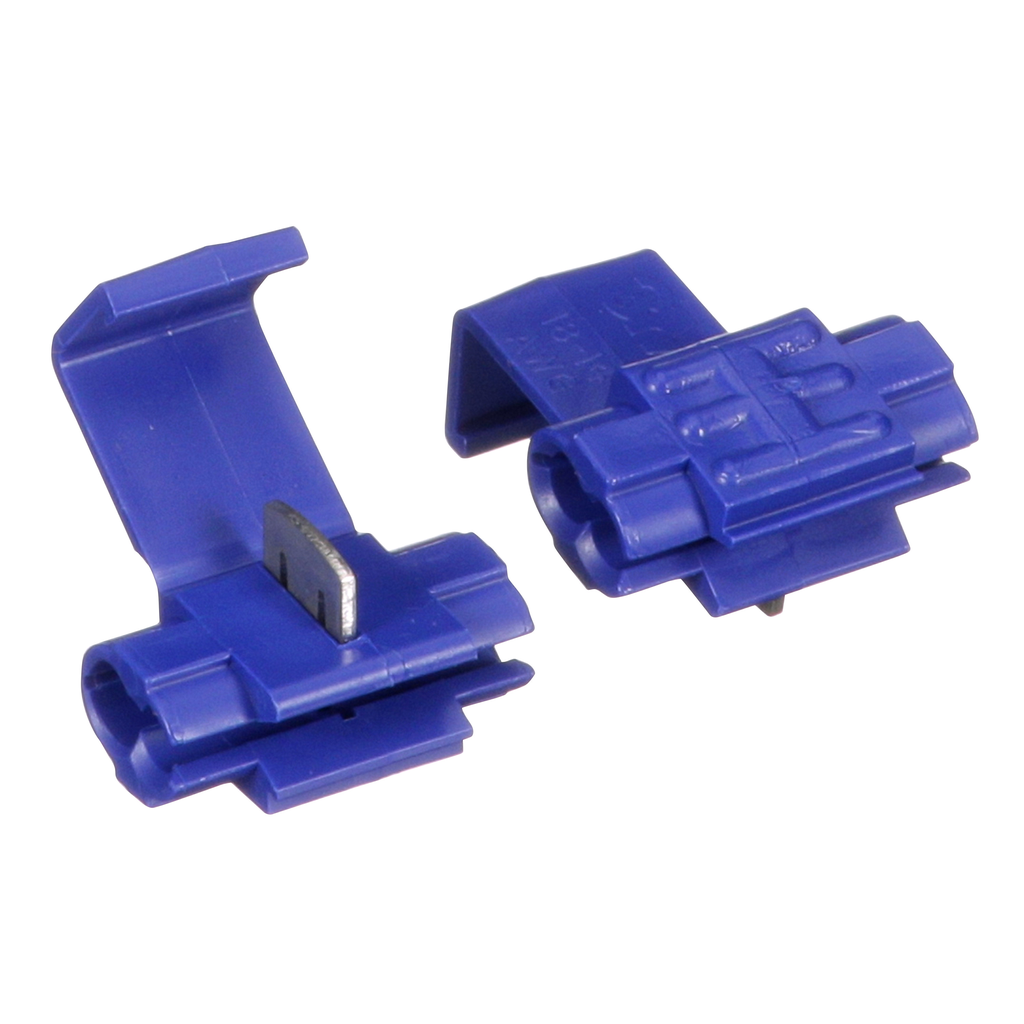

3M™ Scotchlok™ 560B IDC Double Run or Tap Connector electrically connects a tap wire to a run (through) wire while insulating the connection. This connector insulation is manufactured from polypropylene and is ideal for tap or parallel splicing. It is 600V-rated for building wire and 1000V-rated for signs, fixtures and luminaires. It withstands temperatures of 194 degrees F (90 degrees C).

Technical Information

Conductor Size
18-16 AWG/18-14 AWG
Max Operating Temperature
105.0 degrees C
Temperature Rating
194 F
Type
Insulation Displacement
Voltage
600 Volt
Wire Size
18-16 AWG / 14 AWG Stranded

Manufacturer Information

Brand
Scotchlok
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
054007200901
Color
Blue
GTiN
10054007200908
Product Type
Double Run Or Tap
Product UPC
05400720090

Certifications and Compliance

Country of Origin
USA
Features

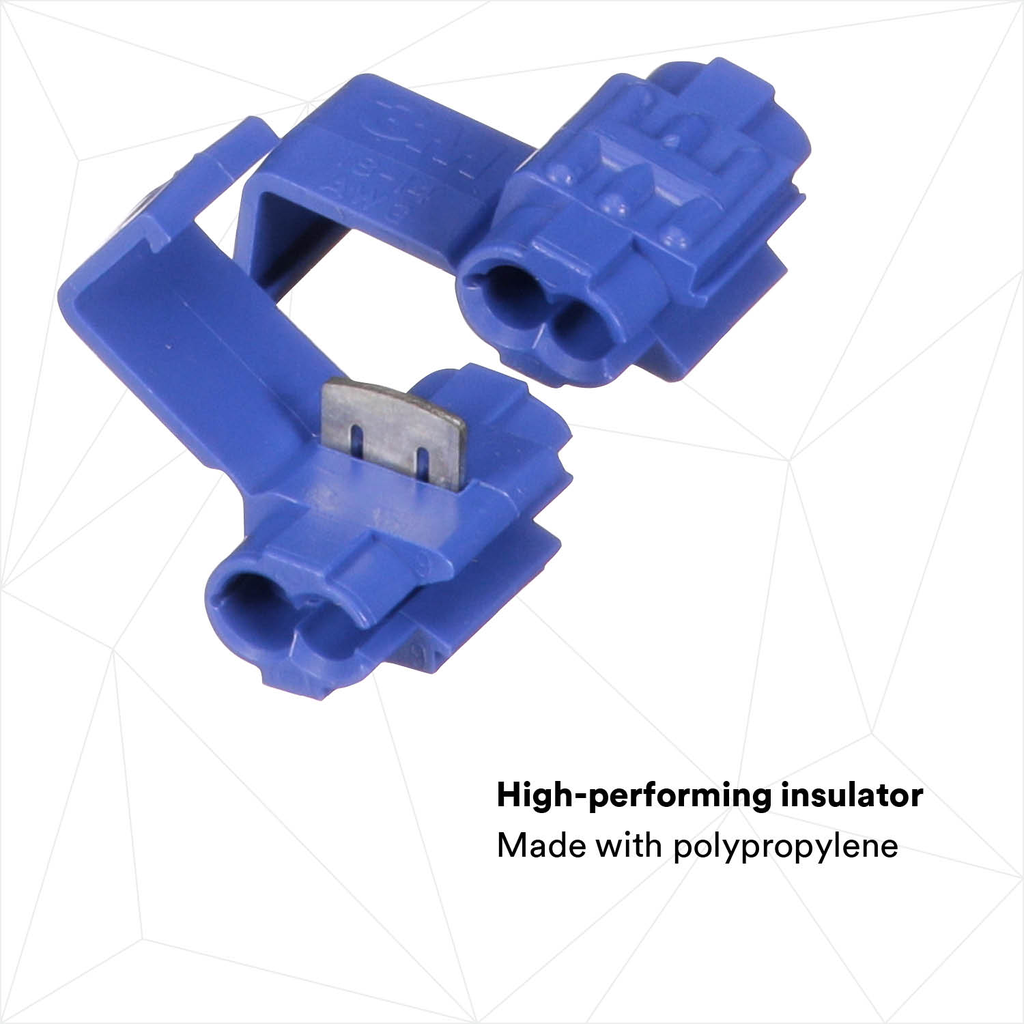

  • Blue, polypropylene-insulated connector is suitable for tap or parallel splicing
  • Helps provide a moisture-resistant seal
  • Accommodates 22 to 14 AWG solid/stranded

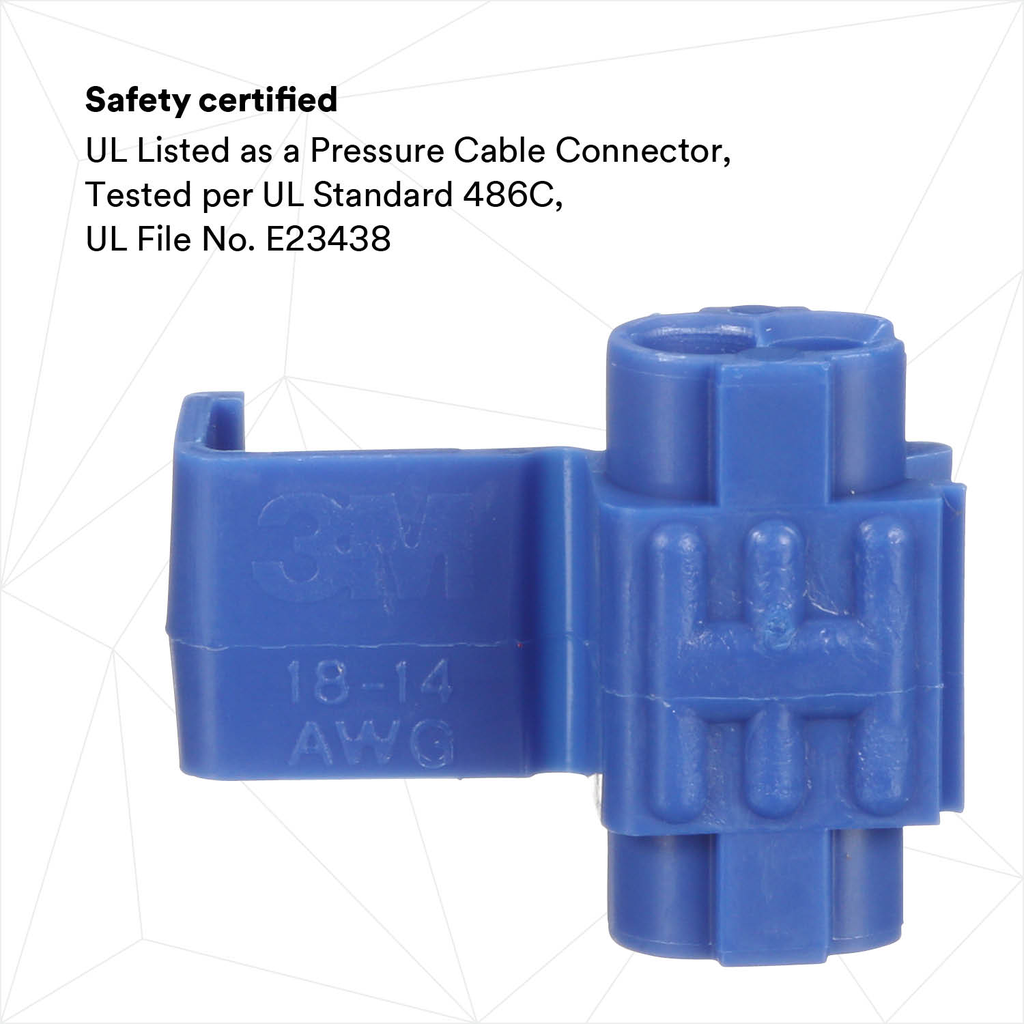

  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
