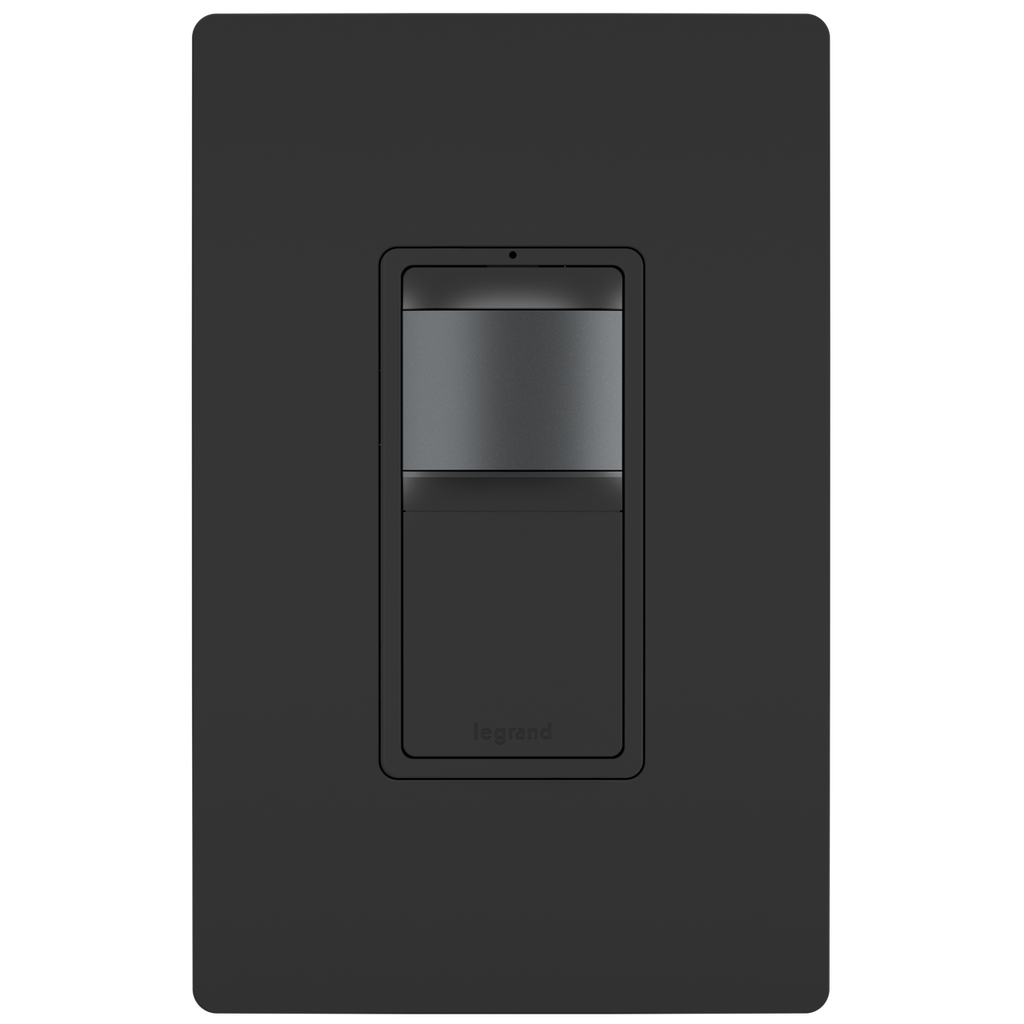

Product image for P&S RRW600UBK RADIANT OCC SENSOR 2-
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

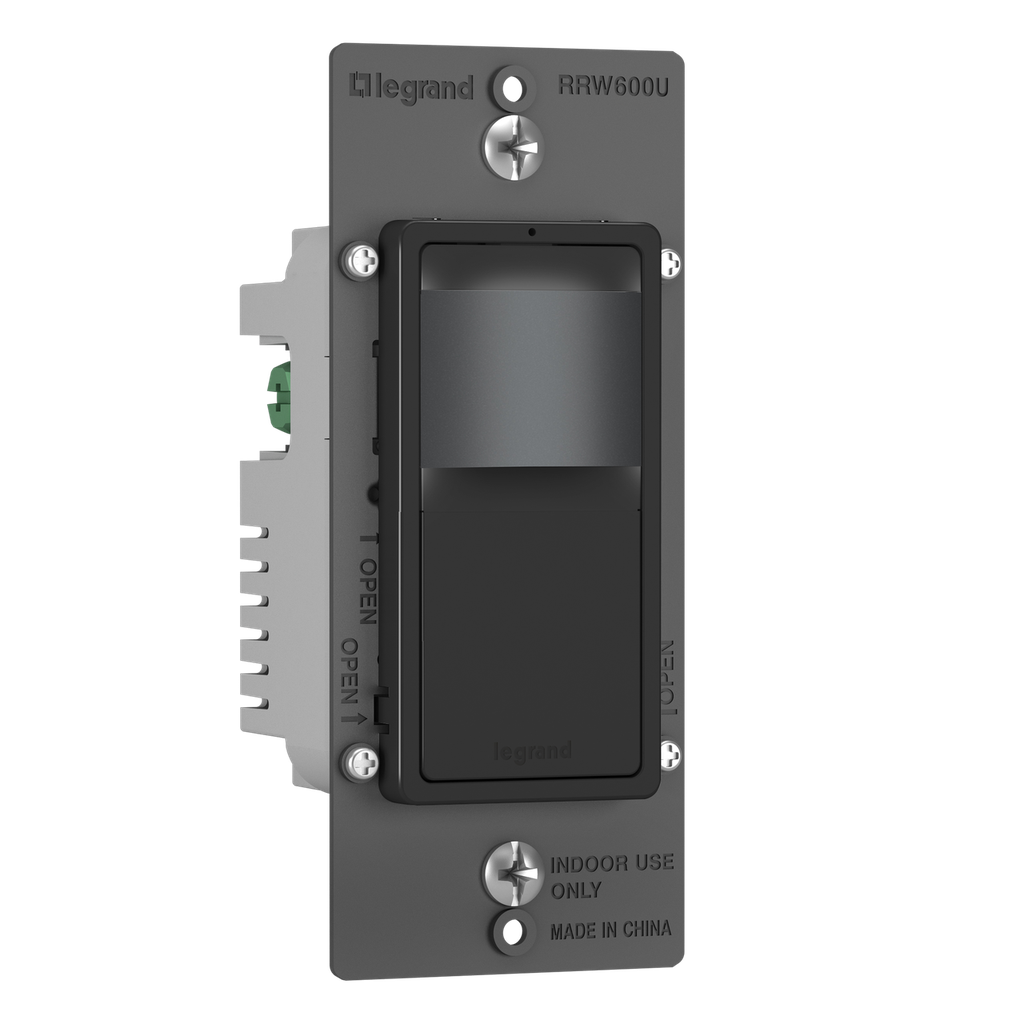

P&S RRW600UBK RADIANT OCC SENSOR 2-

Manufacturer: Pass & Seymour / Legrand | Catalog # RRW600UBK | Cooper Electric Part # 2125527
$42.46/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Simplify control while saving energy, with the radiant® Occupancy Sensor. Automatically turning the light on when someone enters a room, and shutting it off when the room is empty, this sensor includes an adjustable timed delay for shut off, as well as additional settings for more flexible control. Part of the radiant® Collection, it features clean lines and smooth paddle action for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Amperage
5 Amp
Indoor Outdoor
Indoor
Input Voltage
120 VAC
Load Rating
120V 600W (Incandescent), 120V 600W (Halogen), 120V 5A 600W (LED), 120V 600VA (Fluorescent), 120V 600VA (MLV), 120V 5A (ELV), 120V 5A 600W (CFL)
Load Type
Fan Motor, LED, CFL, Incandescent:Fluorescent, Halogen
Material
Polycarbonate, Steel
Mounting Type
Wall Box
Number of Poles
Multi,Location, 1 3 Way
Sensor Type
Occupancy, Vacancy
Switch Type
Motion Sensor, sofTap
Type
Switch
Wattage
600 Watt

Manufacturer Information

Brand
Legrand
Sub Brand
radiant

General Product Info

12-Digit UPC
785007446432
Color
Black
Finish
Matte
GTiN
00785007446432
Product UPC
78500744643

Dimensions

Depth
1.88 Inch
Height
2.63 Inch
Width
1.69 in

Certifications and Compliance

Country of Origin
China
Features
  • Passive infrared (PIR) sensor switch technology with 180° coverage up to 600 sq. ft. Rated for up to 600W (5A) of LED lighting.
  • Works with virtually any bulb/fixture, including: LED, incandescent, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp.
  • Turn the light on when you enter, and let it turn itself off automatically after you leave for true convenience. Perfect for bathrooms, hallways, closets, garages, and more.
  • Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
  • Features an adjustable time delay to off after no motion is detected. Delay settings range from 30 seconds to 20 minutes after the room is vacated (default 5 minute delay).
  • Auto ON/Auto OFF functionality as default. Easily configurable to Manual ON/Auto OFF to meet any need or preference in the home.
  • Replace any basic light or fan switch in 15 minutes or less. Supports single pole and multi-location installs. No neutral required.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
Certifications
  • UL Listed
  • cULus Listed
