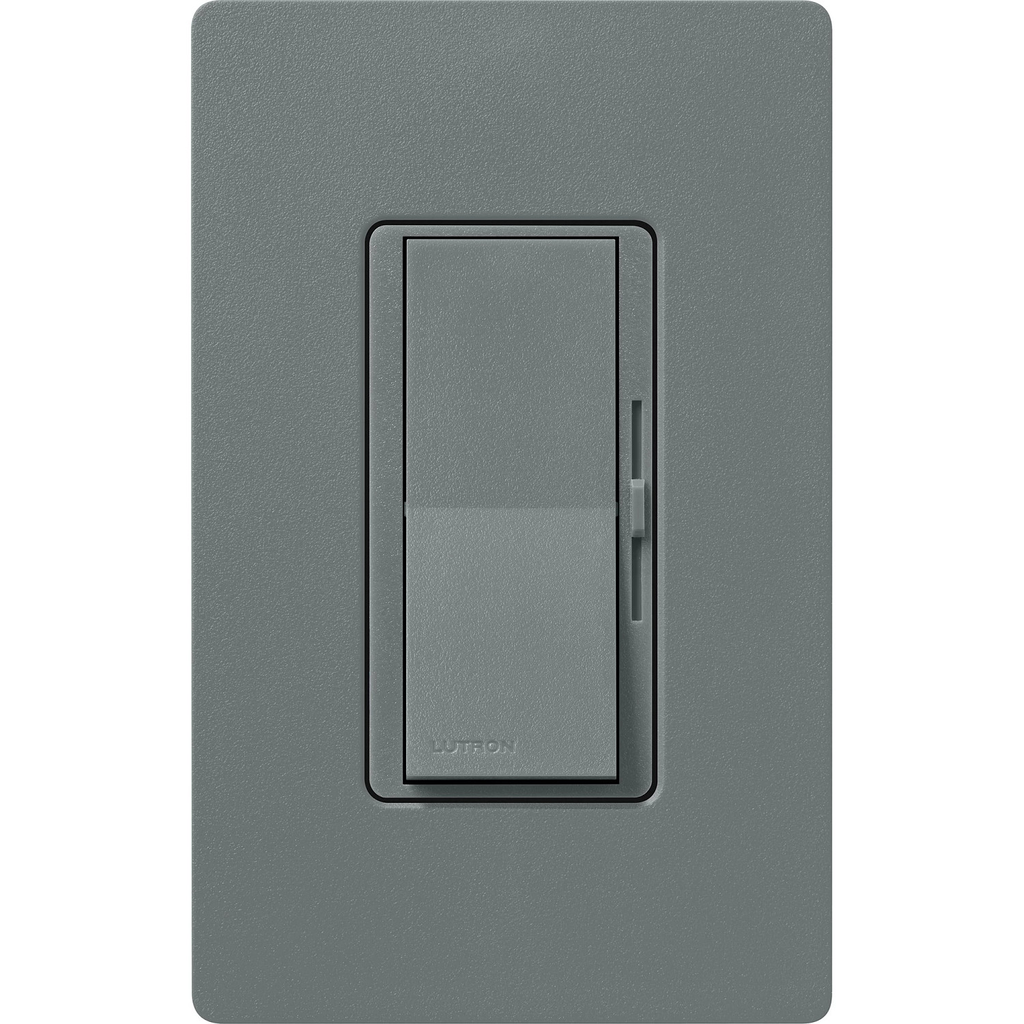

Product image for LUT DVSCCL-253P-SL DIVA 250W DIM SL
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

LUT DVSCCL-253P-SL DIVA 250W DIM SL

Manufacturer: Lutron | Catalog # DVSCCL-253P-SL | Cooper Electric Part # 2105626
$86.84/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

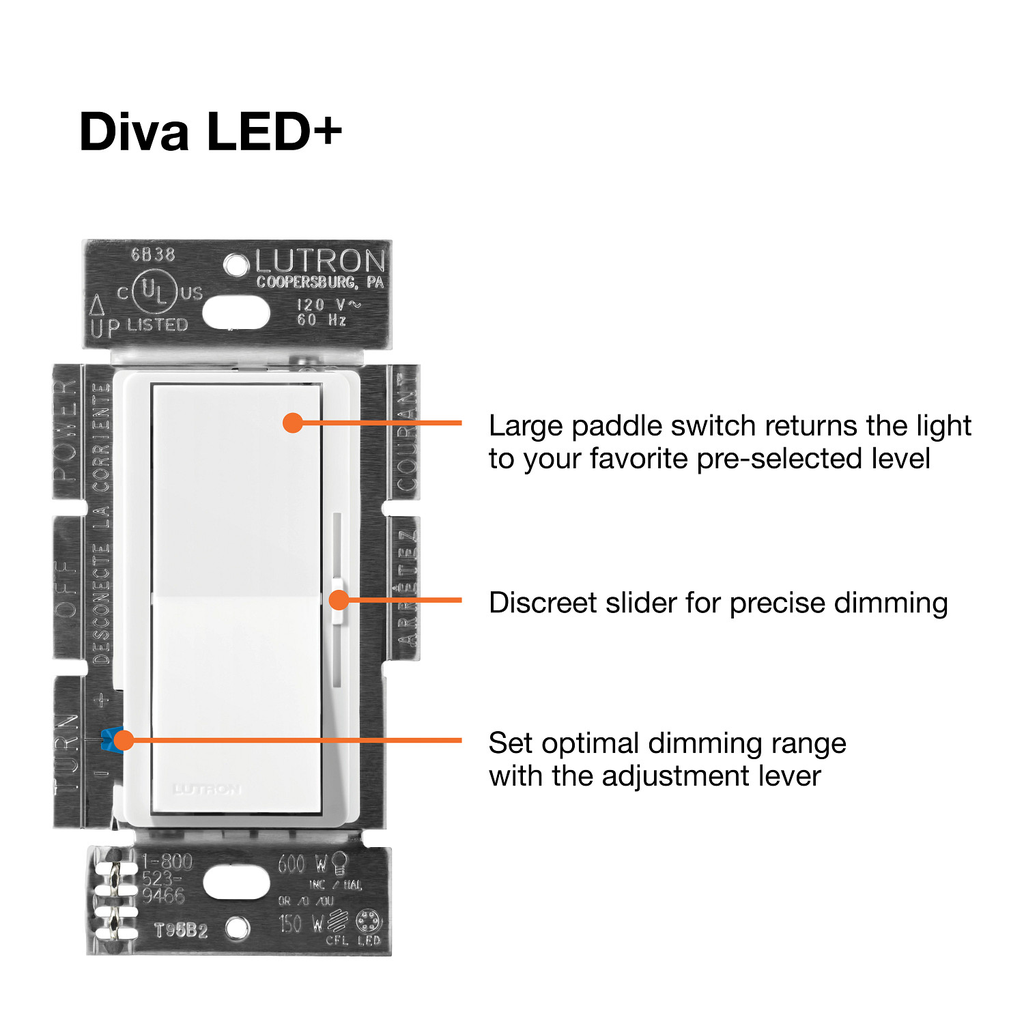

The Lutron Diva 250W LED+ dimmer switch includes the most advanced technology for superior dimming for up to 250W of dimmable LED, 600W of Incandescent/Halogen, or 350W Lutron Hi-Lume A-Series LTE LED Driver. The Diva LED+ dimmer switch features a large paddle switch to turn the lights ON/OFF and smooth and linear slider to dim or brighten the lights. Set a favorite preset level with the slider before turning on. The Diva 250W LED+ Dimmer switch also features an easy low-end trim adjustment directly on the dimmer, which eliminates complicated programming or having to turn the power off. Available in 20+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Technical Information

Actuator
Paddle Switch
Applications
Lighting
Connection Type
Wire Leads,Wire Leads
Enclosure Material
Plastic
Frequency
60 Hz
Insulation Material
Plastic
Material
Metal
Mounting Type
Wallbox
Number of Poles
1 Pole
Operating Temperature
32 To 104 degrees F
Size
75 in
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Diva

General Product Info

12-Digit UPC
784276289306
Color
Slate
Finish
Satin
GTiN
00784276289306
Product UPC
78427628930
Standards and Certifications
  • UL
  • CSA
  • NOM
  • NEMA SSL-7A Type 2
Features
  • Includes (1) Diva 250W LED+ Dimmer Switch; Satin Finish
  • Rated for up to 250W LED or 600W Incandescent/Halogen
  • No Neutral Required; 120v
  • Single Pole or 3-Way compatible; Wire lead installation
  • Minimum load requires 1 compatible LED or 10W Incandescent/Halogen
  • Easy low-end trim adjustment lever; No complicated programming or turning off power to set
  • Rocker switch turns lights on/off to favorite preset light level
  • Linear slider dims and brightens the lights
  • Available in 20+ colors
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
  • Controls 250 W dimmable LED/CFL (screw-base), 600 W incandescent/halogen or 350 W Hi-Lume 1 percent 2-wire LED driver loads
  • Paddle turns on/off
  • Slide up to brighten, down to dim
  • Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
