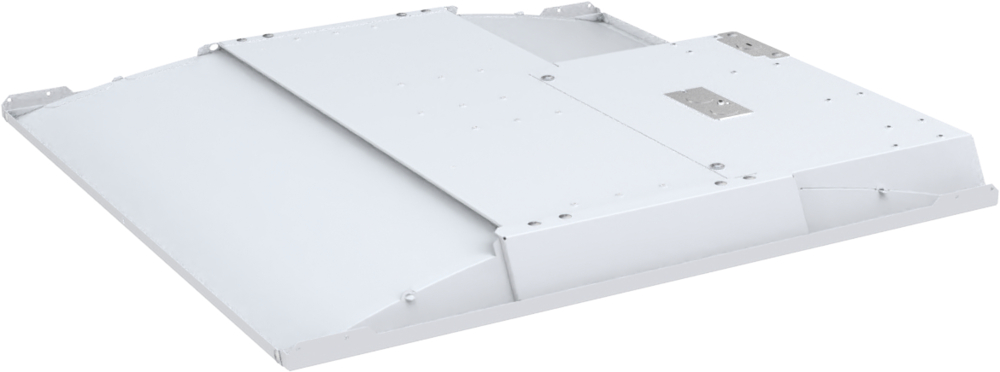

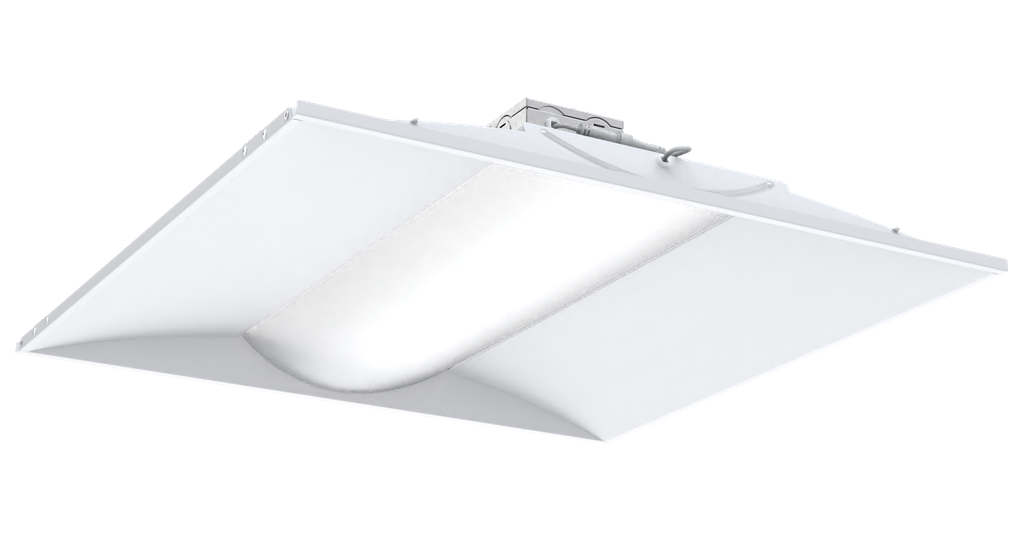

LITH STAKS 2X2 ALO3 SWW7 IE10WCP Re

Manufacturer: Lithonia Lighting | Catalog # STAKS2X2ALO3SWW7IE10WCP | Cooper Electric Part # 2101516
$863.62/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
STACK Switch with Emergency Battery Backup provides both functionality and efficiency. Selectable lumens (4000, 5000, 6000) allows for a variety of mounting heights and switchable color temperature (3500K, 4000K, 5000K) allows you to fine-tune the look of your space. It is the fully switchable version of the next generation family of products. The Emergency Battery Back Up switches automatically to emergency mode with 90 minute run time. STACK Switch is the perfect choice for schools, commercial office spaces and many more applications.

Technical Information

Applications
Education,Government,Healthcare,Hospitality,Offices & Banks
Color Temperature
3500 K
Correlated Color Temp
3500 K
Dimmable?
Yes
Lamp Type
LED
Lens Color
White
Lens Material
Polycarbonate
Lumens
3,000 Lumen,4000 Lumen,5000 Lumen,Switchable Lumen
Material
Steel
Number of Lamps
1
Power Source
Hardwired
Style
Traditional
Voltage
120-277 Volt
Wattage
41 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
197589843996
Color
White
Construction
New Construction,Remodel
Environmental Conditions
Indoor
Finish
Matte
GTiN
00197589843996
Product Type
Troffer
Product UPC
19758984399
Shape
Square
Weight
9.26 lb

Dimensions

Height
3-1/2 Inch
Length
23.8 Inch
Warranty Length
5 yr
Width
23.9 IN

Certifications and Compliance

Country of Origin
USA
Application
  • Education
  • Government
  • Healthcare
  • Hospitality
  • Offices & Banks
Features
  • DESIGN: Wide 7 lens and curved reflector give STACK a high-end aesthetic
  • ENERGY SAVINGS: Ultra-efficient LEDs and Drivers lead to maximum energy savings
  • DIMMING: 0-10V dimming allows for you to get the brightness of your space just right
  • VOLTAGE: MVOLT functions with 120v or 277v; Easy installation in T-grid ceilings, Surface mount boxes, or, drywall grid adapters
  • HOURS OF LIFE: 80% LED lumen maintenance at 60,000 hours (L80/60,000)
  • INSTALLATION: Shallow (<2) depth allows for mounting in constricted plenum spaces
  • BATTERY: Emergency battery backup - switches automatically to emergency mode with 90 minute run time
  • WARRANTY: 5-year limited warranty
Mounting
  • Recessed
Standard
  • CSADLC Standard
