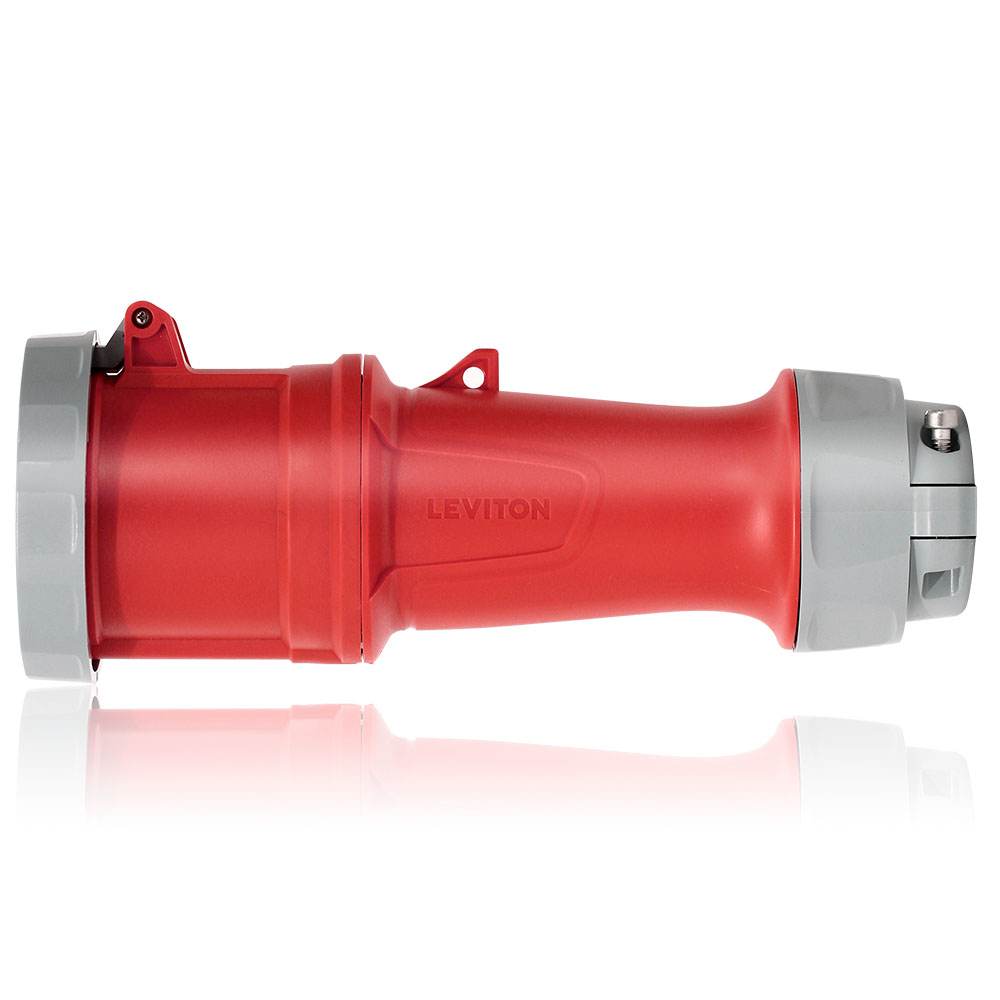

Product image for LEV 4100C7WLEV 100 Amp Pin & Sleeve
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

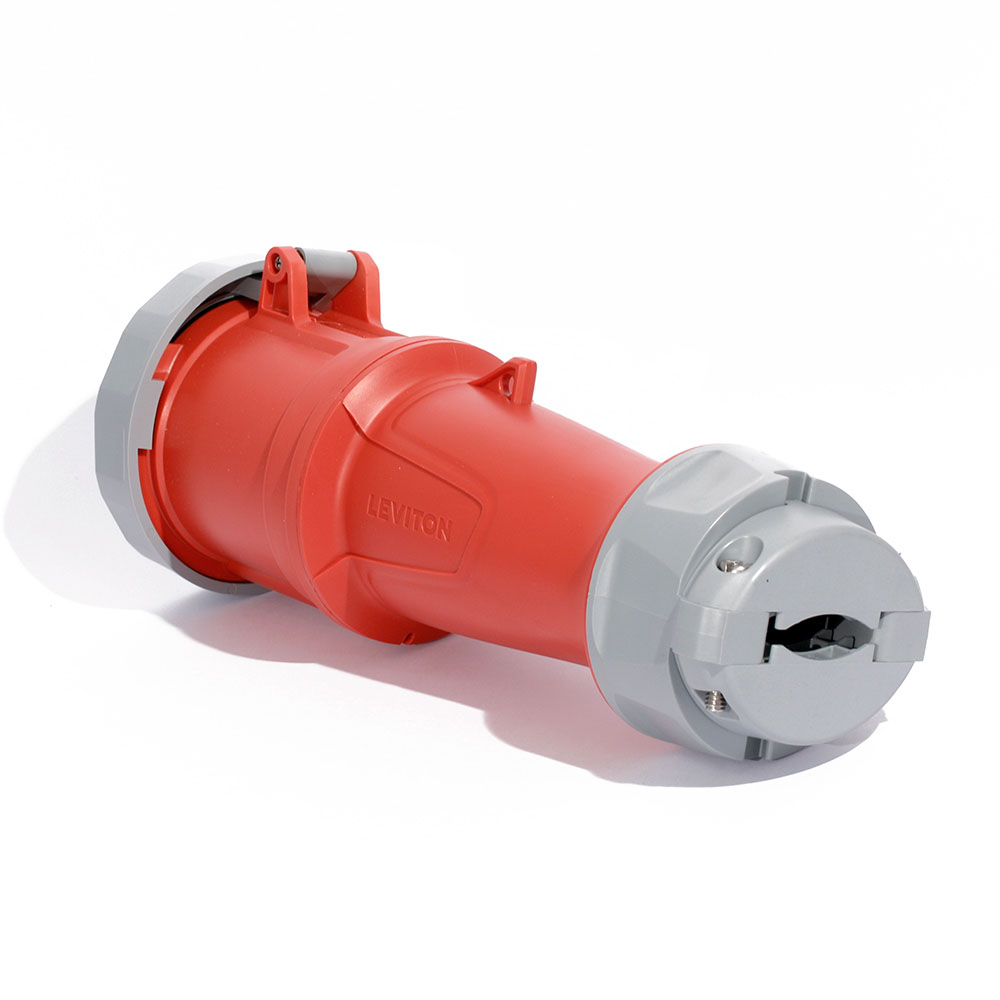

LEV 4100C7WLEV 100 Amp Pin & Sleeve

Manufacturer: Leviton Mfg Co | Catalog # 4100C7WLEV | Cooper Electric Part # 2098137
$721.06/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
100 Amp, 480 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Connector, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Red

Technical Information

Amperage
100 Amp
Device Type
Connector
Dielectric
3000 V
Flamability Class
Rated HB Or Better Per UL94,Rated V-0 Perf UL 94
Horsepower
20 hp
Max Voltage
600 V
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-35 degrees C
Temperature Rise
30 degrees C

Manufacturer Information

Brand
Leviton
Sub Brand
PIN AND SLEEVE DEVICES

General Product Info

12-Digit UPC
078477251829
Color
Red
GTiN
60078477251821
Housing Material
Impact Modified Nylon
Product UPC
07847725182

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • LEV Series IEC 60309 Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and outlast the competition:

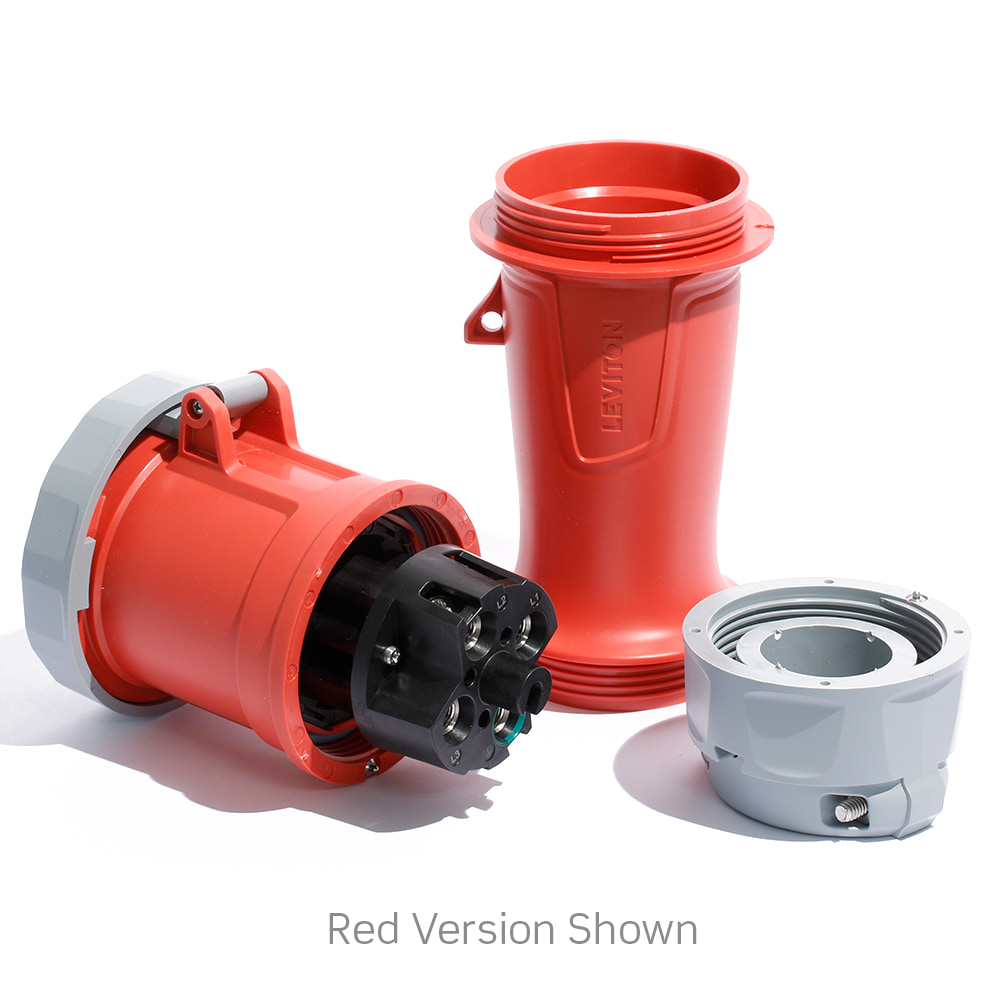

  • Improved speed of assembly with threaded housings that have less screws for reduced installation time
  • Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive submersible IP68
  • Best in class 5-year limited warranty! Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007.
Patents
  • US10431922
  • US11271342
