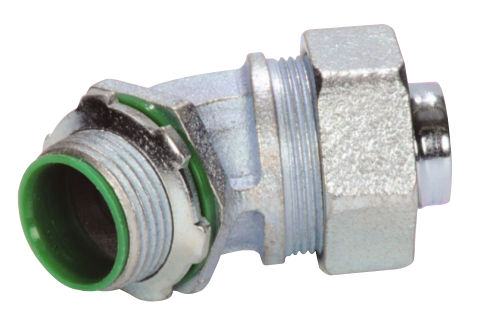

Steel Electric Products Co. SLT65-45T 2-1/2 Inch Zinc Plated Steel 45 Degrees Liquidtight Flexible Conduit Connector

Manufacturer: Steel Electric Products | Catalog # SLT65-45T | Cooper Electric Part # 209641
$12,898.49/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Steel Electric Products Co. SLT65-45T 2-1/2 Inch Zinc Plated Steel 45 Degrees Liquidtight Flexible Conduit Connector

Technical Information

Trade Size
2-1/2 Inch

Manufacturer Information

Brand
Steel Electric Products

General Product Info

12-Digit UPC
785994148654
Product UPC
78599414865
Features
  • Tapered threaded male hub NPT

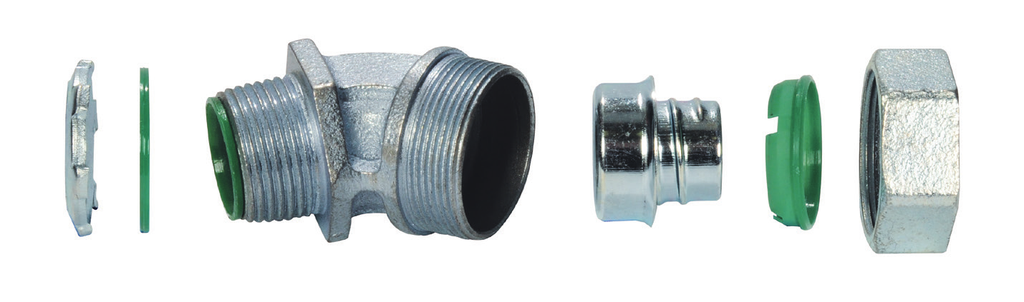

  • Compact, slim diameter with small turning radius Furnished with Insulated throat, steel locknut,
  • and sealing ring
  • Liquidtight/Raintight/Concrete tight/Oiltight
  • Suitable for grounding
  • Long ferrule prevents pull-out and tight bend conduit pop-out
  • UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8 through 1-1/2 under NEC 35I-I.
Optional Finish
  • For additional corrosion protection, specify Mechanical Galvanized. Add suffix MG to Malleable Iron catalog number. Example SLT35- 45TMG. For more information, see page 18.
UL Listed
  • E198258
Application
  • To secure, ground and seal Liquidtight Flexible Metal conduit to boxes and enclosures.
Standard Materials
  • Malleable Iron/Steel Furrule
Standard Finish
  • Zinc Plated
