SQUARED DPE12G7 IEC contactor,Easy

Manufacturer: Square-D / Schneider | Catalog # DPE12G7 | Cooper Electric Part # 2095215
$32.18/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1

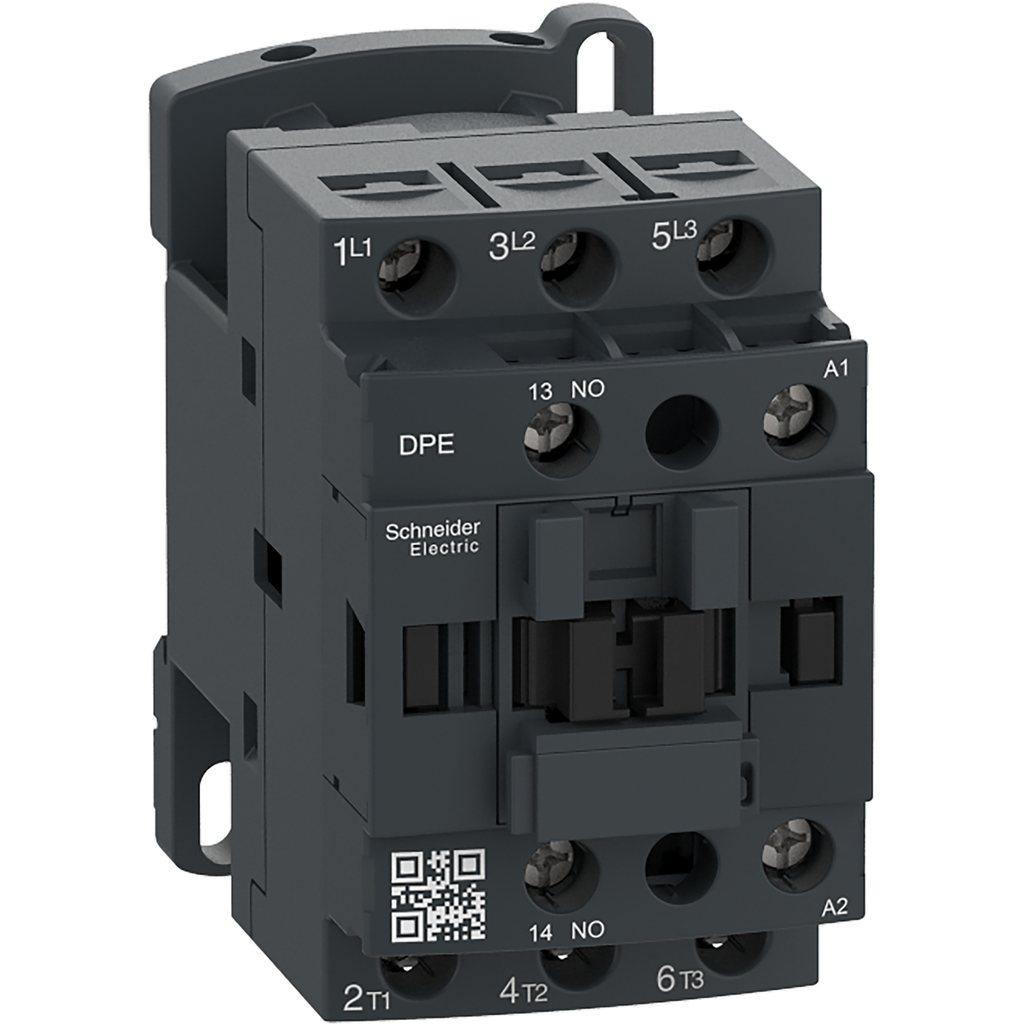

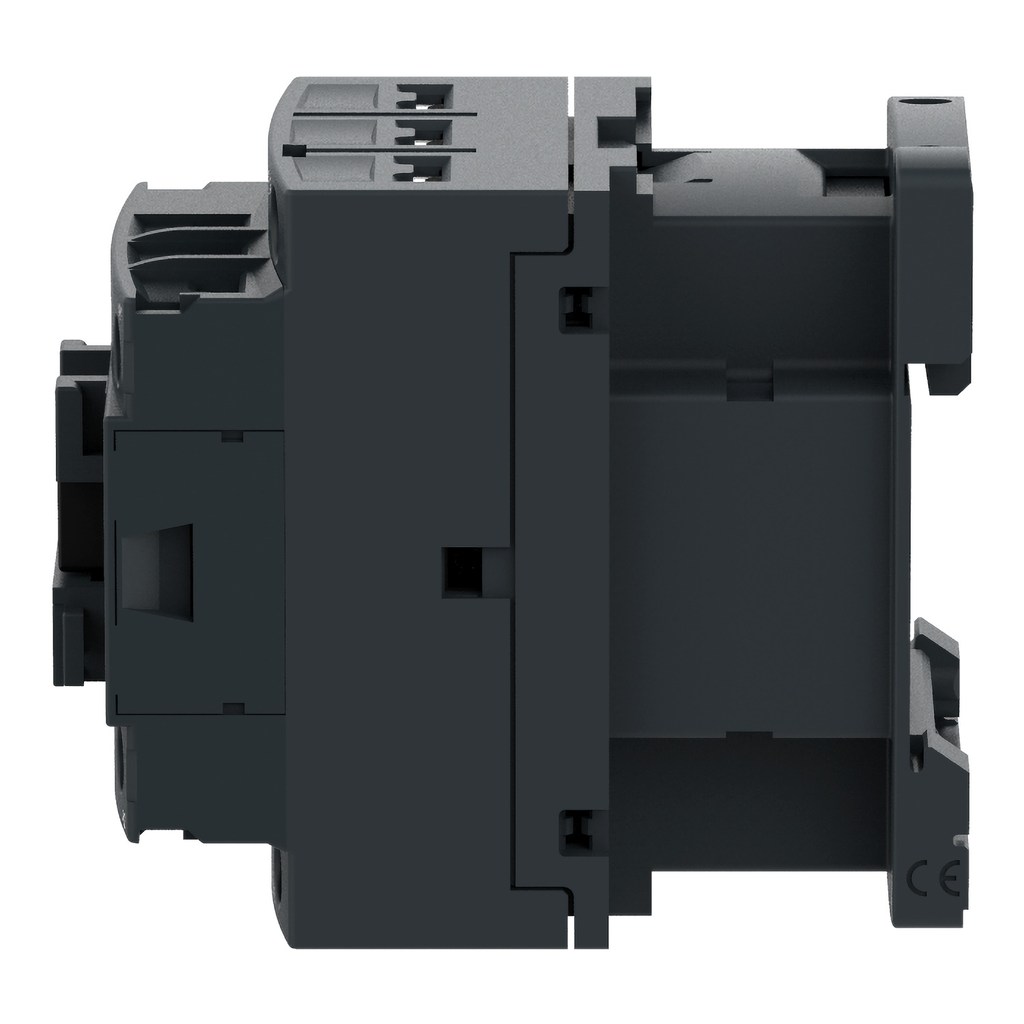

Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5 HP@480V). It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA).

Technical Information

Contact Configuration
1 NO,3 NO
Impedance
2.5 MOhm - Ith 25 A 50 Hz For Power Circuit
Net Weight
0.32 kg
Standard
CSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,UL 60947-4-1
Storage Temperature
-60-80 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

GTiN
03606481063182
Weight
0.32 kg

Dimensions

Depth
86 mm
Height
77 mm
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
