Erico TDX200M120240 Modular TDX Panel Protector, 200 kA, 120/240 V Un, 1Ph 3W+G Distribution System

Manufacturer: Erico, Inc | Catalog # TDX200M120240 | Cooper Electric Part # 2091999
$2,186.85/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Modular TDX Panel Protector, 200 kA, 120/240 V Un, 1Ph 3W+G Distribution System

Technical Information

Applications
Power Connections; Surge Protection
Enclosure Material
Metal
Enclosure Rating
IP 65
Type
Transient Discriminating Panel Protectors

Manufacturer Information

Brand
nVent Erico

General Product Info

12-Digit UPC
782856593331
GTiN
00782856593331
Product UPC
78285659333
Weight
2.00 kg

Dimensions

Depth
78-78
Height
240-240
Width
130-130
Features
  • Transient Discriminating (TD) Technology provides increased service life

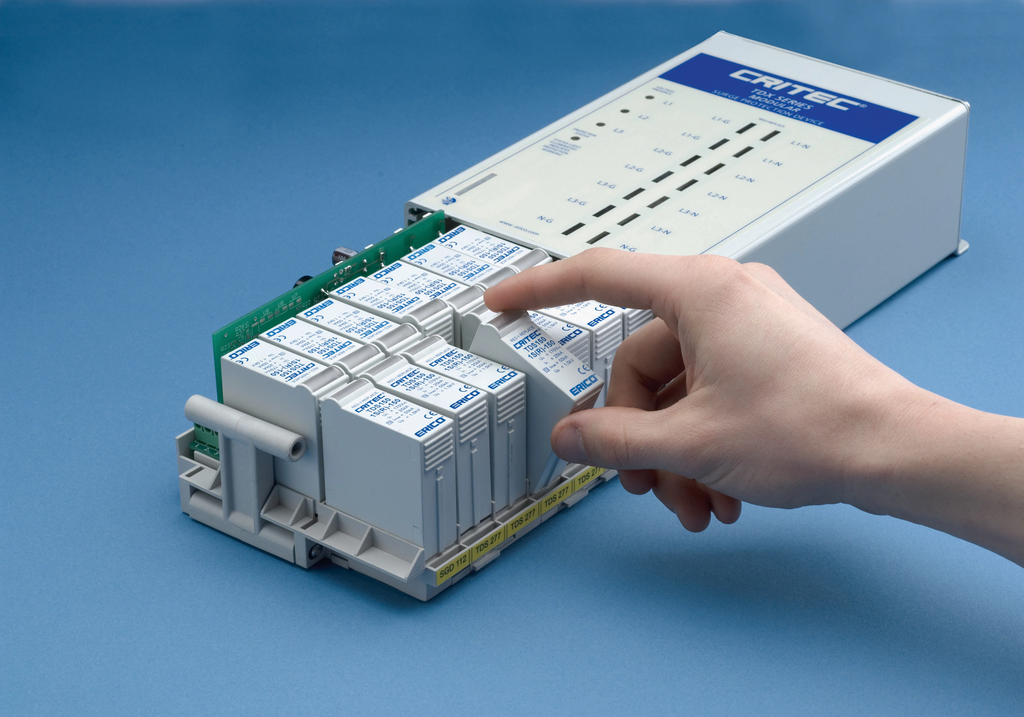

  • Modular design allows easy replacement of surge modules
  • Built-in features include TD Technology, thermal protection and short circuit current fusing

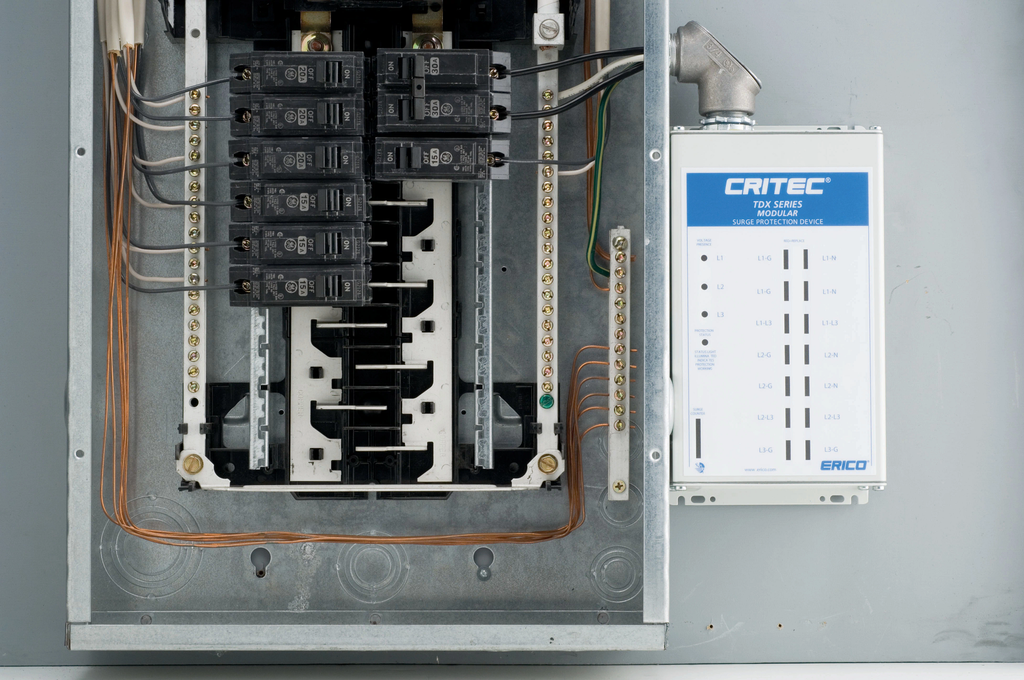

  • Compact NEMA®-4 enclosure design can be flush mounted or installed in a small space
  • Status indication flag per mode, voltage presence LEDs, audible alarm and voltage-free contacts providing remote status monitoring
  • 200kA 8/20?s maximum surge rating provides protection suitable for service entrance, main-distribution panels and highly exposed applications
Certifications
  • UL ANSI/UL 1449
