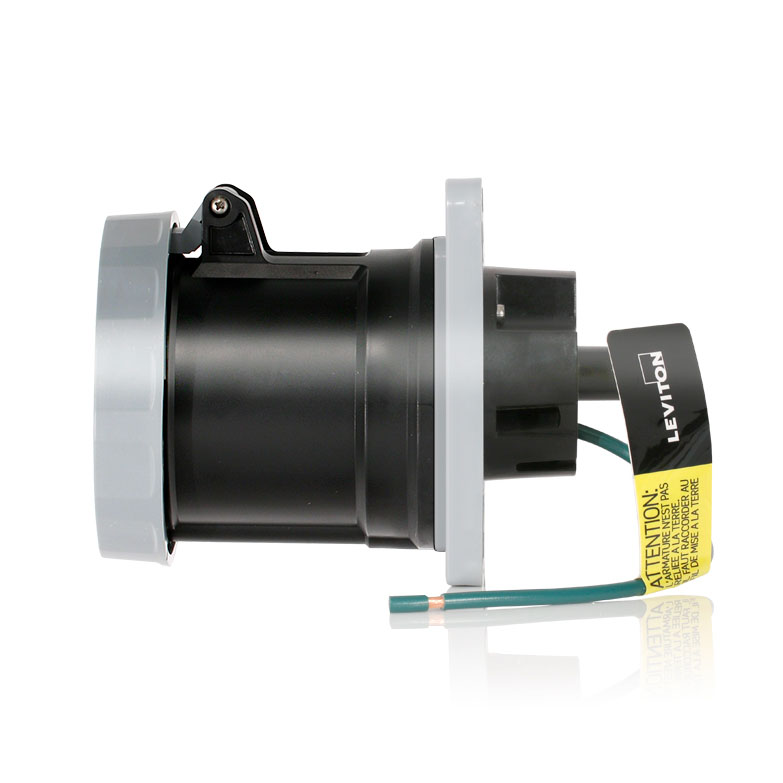

Product image for LEV 4100R5WLEV 100 Amp Pin & Sleeve
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

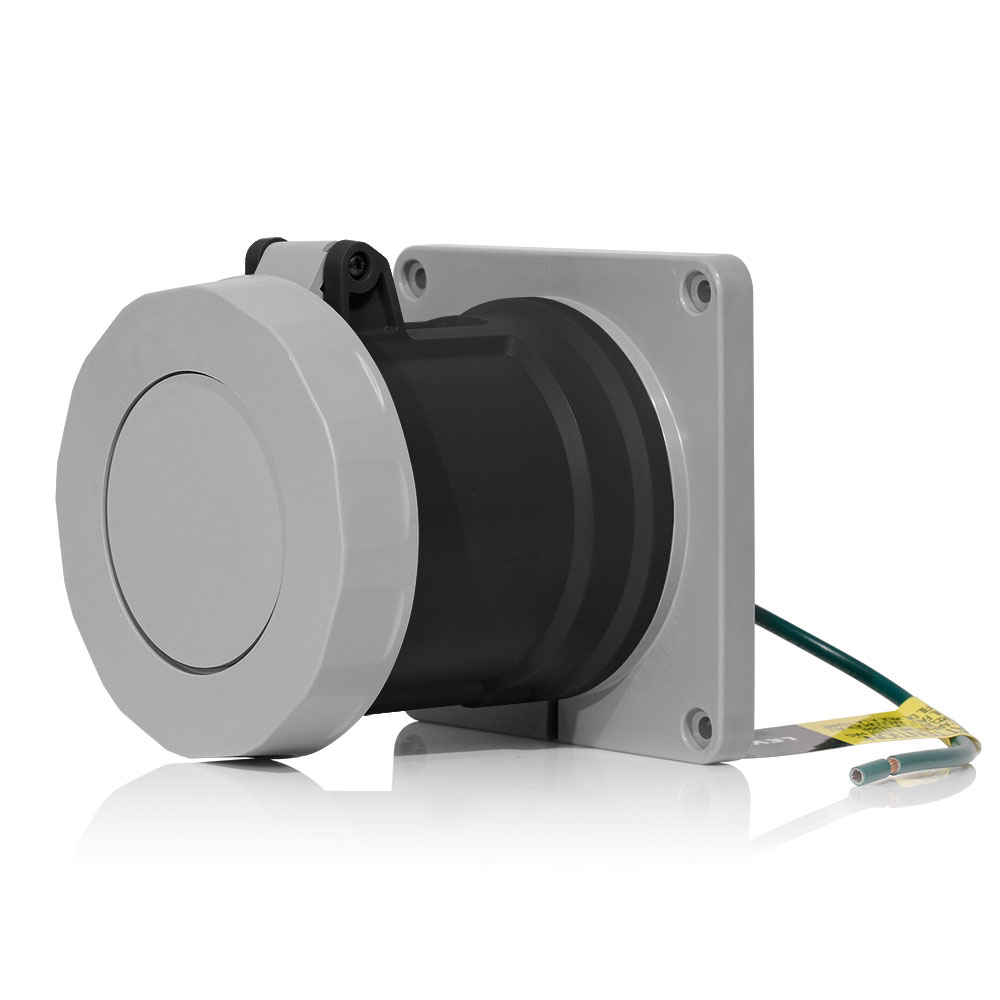

LEV 4100R5WLEV 100 Amp Pin & Sleeve

Manufacturer: Leviton Mfg Co | Catalog # 4100R5WLEV | Cooper Electric Part # 2091577
$516.84/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
100 Amp, 600 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Receptacle, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Black

Technical Information

Amperage
100 Amp
Device Type
Receptacle
Dielectric
3000 V
Flamability Class
Rated HB Or Better Per UL94,Rated V-0 Perf UL 94
Horsepower
30 hp
Max Voltage
600 V
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-35 degrees C
Temperature Rise
30 degrees C

Manufacturer Information

Brand
Leviton
Sub Brand
PIN AND SLEEVE DEVICES

General Product Info

12-Digit UPC
078477665725
GTiN
60078477665727
Housing Material
Impact Modified Nylon
Product UPC
07847766572

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • LEV Series IEC 60309 Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:
  • Nickel-plated pins and sleeves are self-cleaning and corrosion-resistant
  • Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
  • NSF certified sanitary design trusted for use in food & beverage facilities Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007.
Patents
  • US10431922
