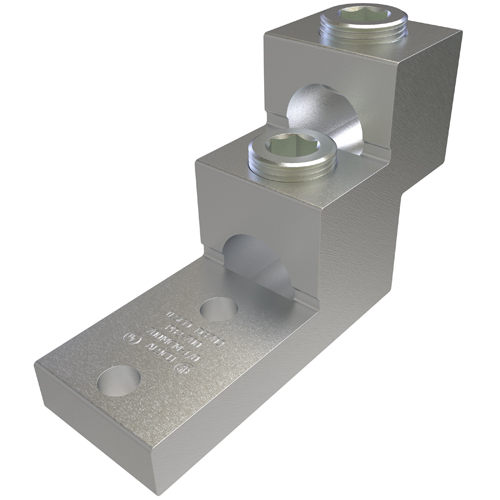

Product image for Ilsco PB2-750 Aluminum Panelboard Lug, Dual Rated, Conductor Range 750-1/0, 2 Ports, 2 Holes, 3/8in Bolt Size, 1-3/8in Hole Spacing, Tin Plated, UL, CSA
Email

Ilsco PB2-750 Aluminum Panelboard Lug, Dual Rated, Conductor Range 750-1/0, 2 Ports, 2 Holes, 3/8in Bolt Size, 1-3/8in Hole Spacing, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PB2-750 | Cooper Electric Part # 209131
$142.88/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Tuesday 7:00am ET
18 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet
ILSCO Panelboard Lug, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting bolt/stud size 3/8 in, mounting hole spacing 1.375 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 750 kcmil - 1/0 Str, 2 conductors, 2 ports/wireways, Drive Type Main 1/2 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
For Terminating Connector
Bolt Size
3/8 in
Conductor Material
Aluminum,Copper
Conductor Size
1/0 AWG-750 kcmil
Conductor Type
Aluminum and Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
13/32 in
Number of Conductors
2
Number of Holes
2 Hole
Number of Ports
2
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
PB:PANELBOARD STACK LUG
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669195408
Color
Silver
Finish
Electro-Tin Plated
GTiN
00783669195408
Product UPC
78366919540
Weight
0.97 lb

Dimensions

Height
2.96 Inch
Length
4.91 Inch
Width
1.688 in
