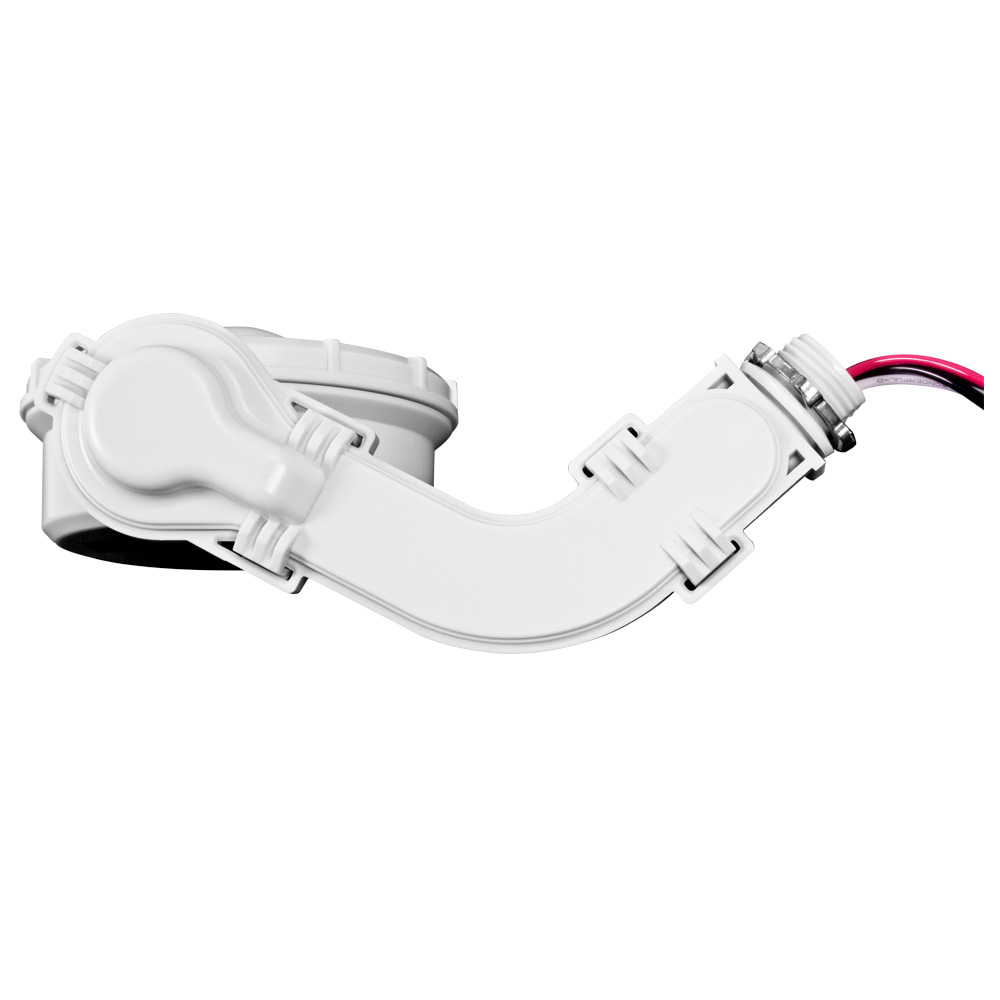

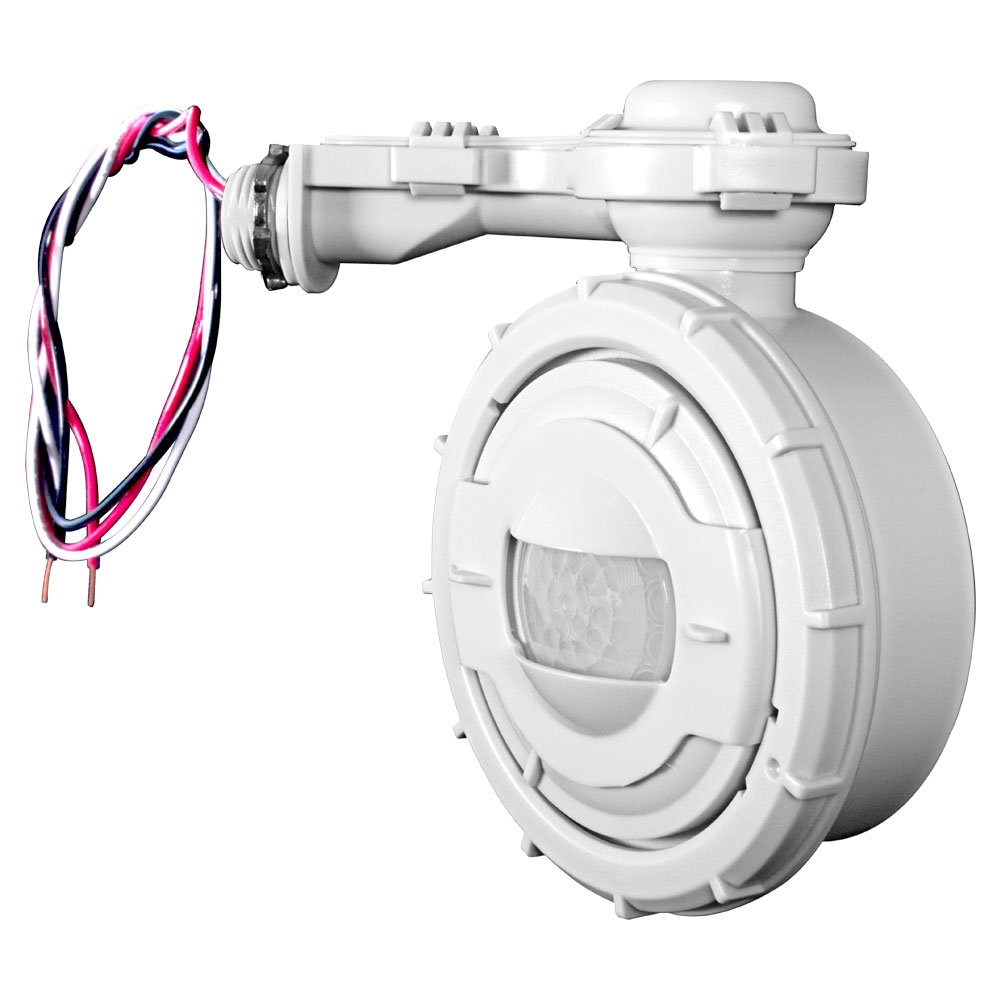

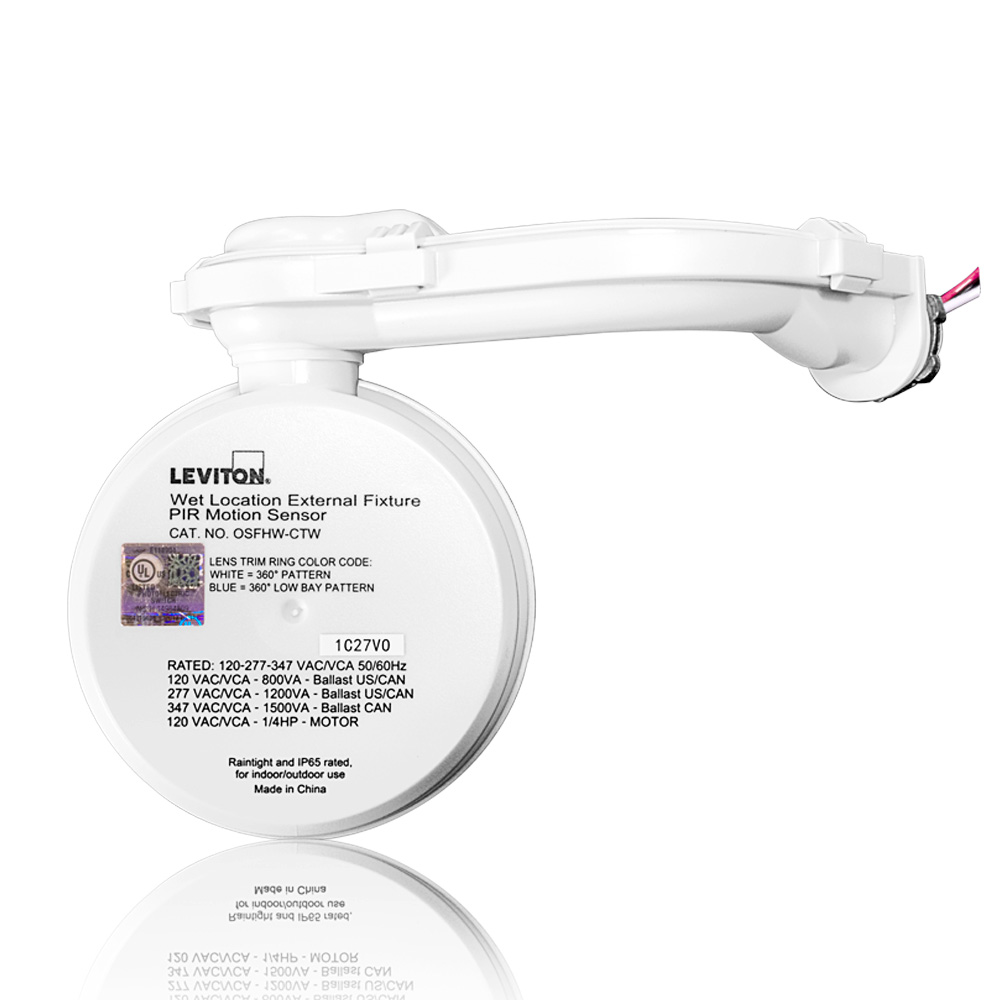

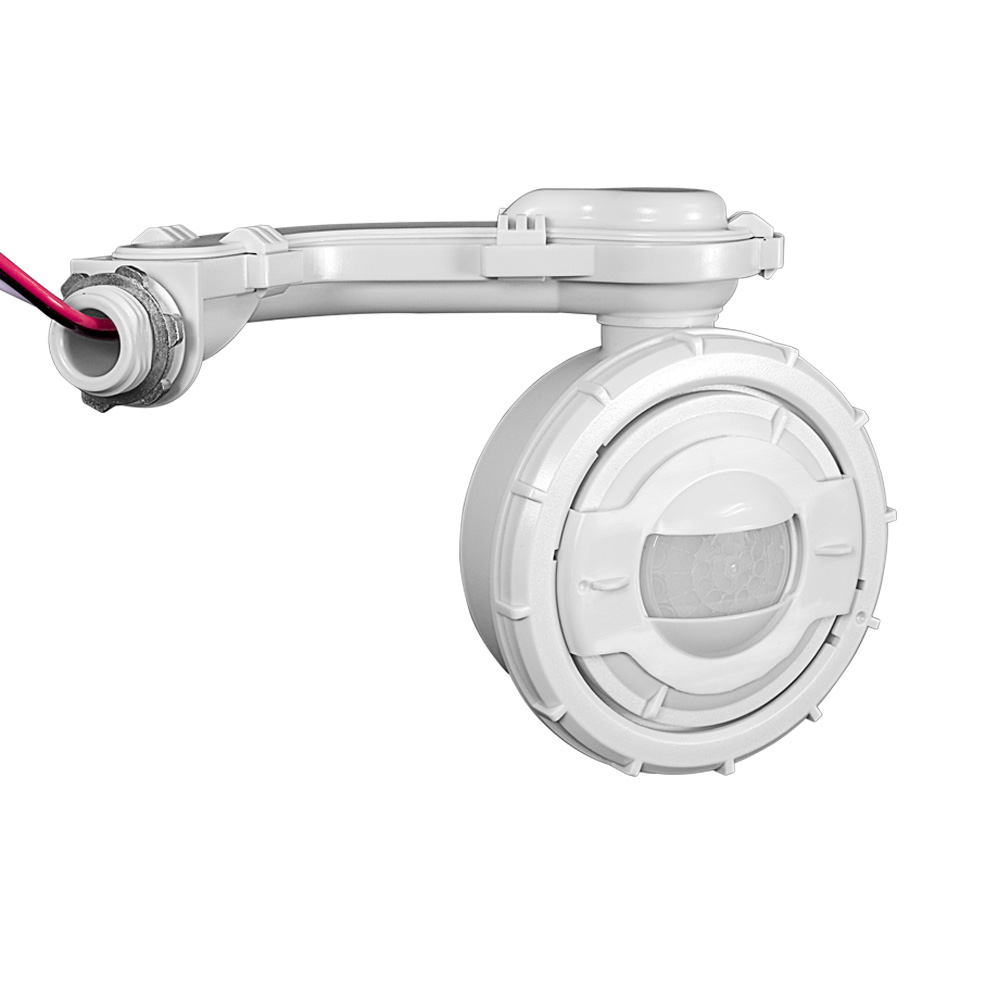

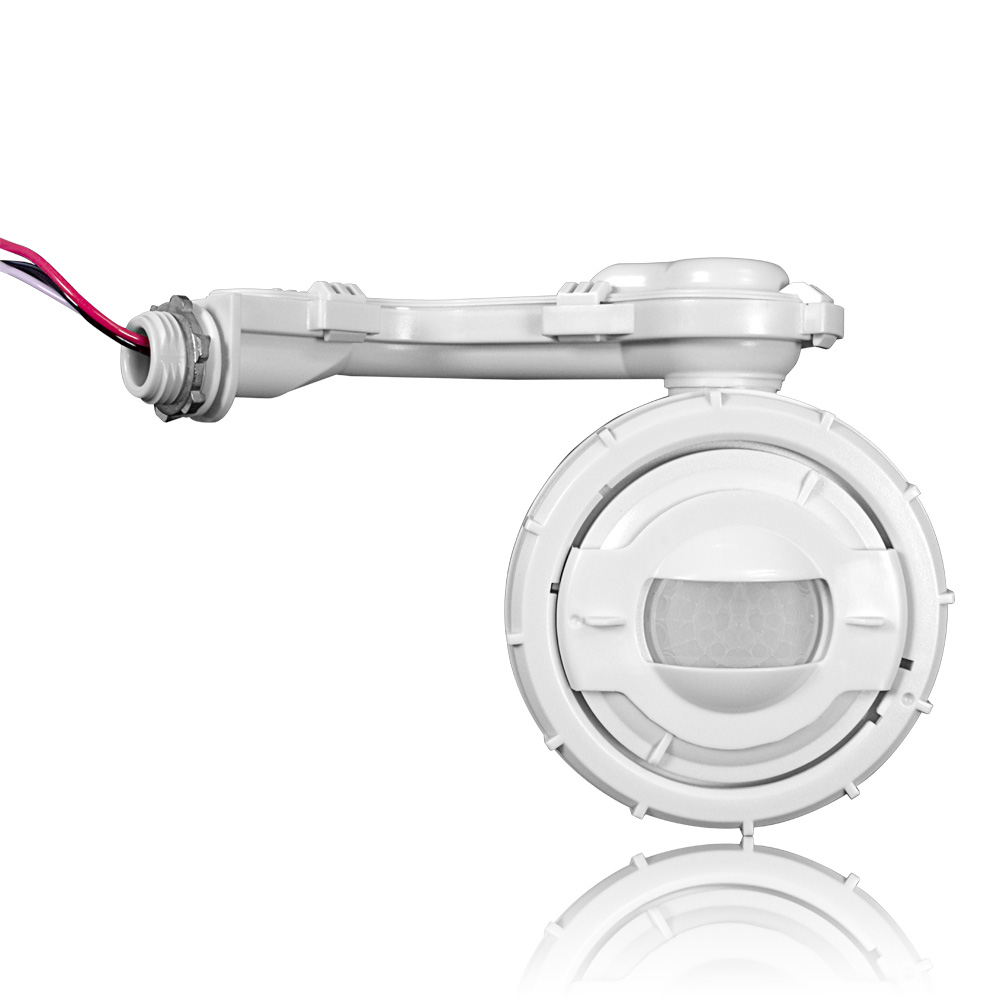

Product image for LEV OSFHL-CTW WH ASS OSFHW-CTW+OSSF
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

LEV OSFHL-CTW WH ASS OSFHW-CTW+OSSF

Manufacturer: Leviton Mfg Co | Catalog # OSFHL-CTW | Cooper Electric Part # 2090759
$86.07/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Safety Data Sheet
Outdoor PIR Occupancy Sensor with IP65 Offset Adapter, Fixture Mounted, 21" wire lead length, Interchangeable Adjustable 360. Low Bay (8'-20'), and High Bay (20'-40') Lenses, Aisle Mask, 120V (800VA), 277V (1200VA), 347V (1500VA), 120/208/220/230/240/277/347V; 50/60Hz. IP65, Instant Start-up, Return-to-last state after power outage, Auto-Sensitivity gain from temperature increase, False-detection protection, Super Bright Green LED. CEC Title 20/24 compliant. Color: White

Technical Information

Applications
High-Bay Lighting
Frequency
50 Hz
Grade
Commercial
Mounting Type
Fixture
Sensor Type
Fixture Mount
Size
1.58 in
TC Connection
Wire
Type
Adapter
Voltage
120/208/220/230/240/277/347 Volt

Manufacturer Information

Brand
ENERGY MANAGEMENT
Sub Brand
C/I OCCUPANCY SENSORS

General Product Info

12-Digit UPC
078477834800
Color
White
GTiN
60078477834802
Product UPC
07847783480

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • IP65 Rated
  • Quicksnap locking mechanism built into the 1/2 nipple allows for the fastest and easiest mounting not requiring a threaded lock-nut
  • Unit includes interchangeable 360° high-bay (20-40) and 360° low-bay (8-25)lenses and an aisle mask accessory
  • Time delay can be set can be set at any time without requiring power to the sensor; time delay is variable from 30 sec-30 min
  • Instant ON closing relay fires lamps in under 5 seconds
  • Zero crossing circuitry optimizes relay operation for reliable, long-life operation?robust mechanical latching relay is durable for all load types
  • Automatically adjusts the PIR sensitivity as ambient temperature rises to increase detection of heat movement through the field-of-view
  • For safety and energy savings, the OSFHW contains a latching relayin the event that power is lost to the device, the device will return to the last known state of the relay
  • For increased energy savings and to mitigate nuisance tripping, the super-bright LED indicates advanced detection has been activated and the lights will only turn ON when true occupancy has been determined
