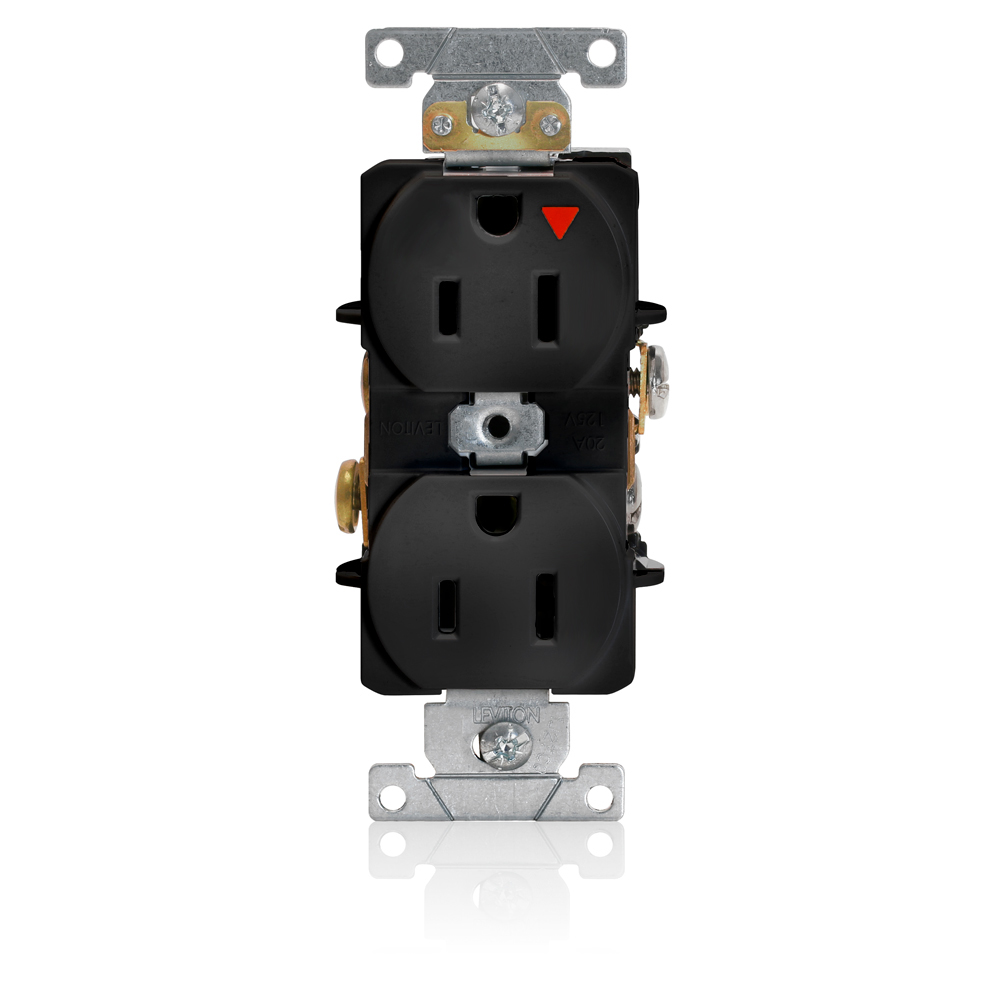

Product image for LEV 5262-IGE EB DUPL REC 2P3W IG GR
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

LEV 5262-IGE EB DUPL REC 2P3W IG GR

Manufacturer: Leviton Mfg Co | Catalog # 5262-IGE | Cooper Electric Part # 2089838
$38.16/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face,15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Black

Technical Information

Amperage
15 Amp
Applications
Industrial
Body Material
PBT,Polyester Blend
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
PBT,Polyester Blend
Flamability Class
Rated V-0 Per UL 94
Grade
Industrial
Grounding
Isolated
Horsepower
1/2 hp
Material
Thermoplastic
Mounting Type
Wall Box
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.33 W x 1.12 D IN
Standard
ANSI C-73
TC Connection
Back and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Type
Heavy Duty, Narrow Body
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
068679186104
Color
Black
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00068679186104
Product UPC
06867918610

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Leviton's line of Heavy-Duty Industrial Grade receptacles are available with a number of wiring options and features. The beauty, durability and versatility of Decora® brand devices and surge suppression receptacles are perfect for a variety of industrial applications.
Color Variations
  • Orange
NEMA
  • 5-15R
