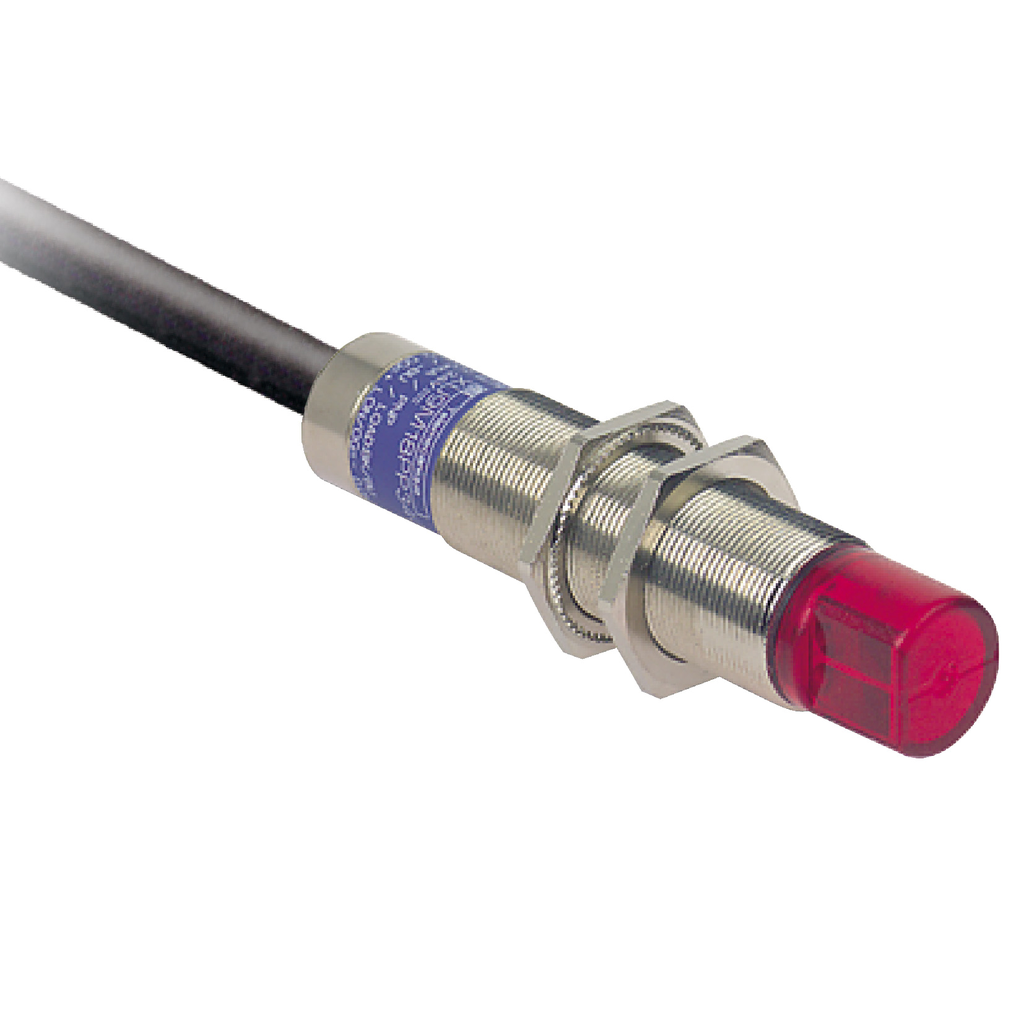

Product image for TES XU8M18MA230W Photoelectric sensors XU, XU8, BGS, 90?, Sn 0.12 m, 24...240VAC/DC, cable 2 m
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

TES XU8M18MA230W Photoelectric sensors XU, XU8, BGS, 90?, Sn 0.12 m, 24...240VAC/DC, cable 2 m

Manufacturer: TES Electric | Catalog # XU8M18MA230W | Cooper Electric Part # 2078672
$187.45/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TES XU8M18MA230W Photoelectric sensors XU, XU8, BGS, 90?, Sn 0.12 m, 24...240VAC/DC, cable 2 m

Technical Information

Amperage
10...200 MA-BE USED WITH 0.4 Amp QUICK-BLOW FUSE IN SERIES WITH THE LOAD)
Applications
-
Enclosure
IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,NICKEL PLATED BRASS
Enclosure Material
Brass
Material
Metal
Net Weight
0.15 kg
Operating Cycles
<= 25 Hz
Operating Temperature
-25-55 degrees C
Output
1 NO;Solid state;Discrete
Sensing Range
0.12-0.12 M DIFFUSE WITH BACKGROUND SUPPRESSION,> 0...0.98 FT (> 0...0.3 M)
Size
0.71 in
Storage Temperature
-40-70 degrees C
TC Connection
CABLE
Type
Diffuse with background suppression;Photo-electric sensor;Cylindrical M18;General purpose single mode
Voltage
24...240 Volt AC/DC

Manufacturer Information

Brand
Telemecanique

General Product Info

12-Digit UPC
891108961382
Product UPC
89110896138
Weight
0.33 lb

Dimensions

Cable Length
2 m
Diameter
18 mm
Length
97 mm
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
France
