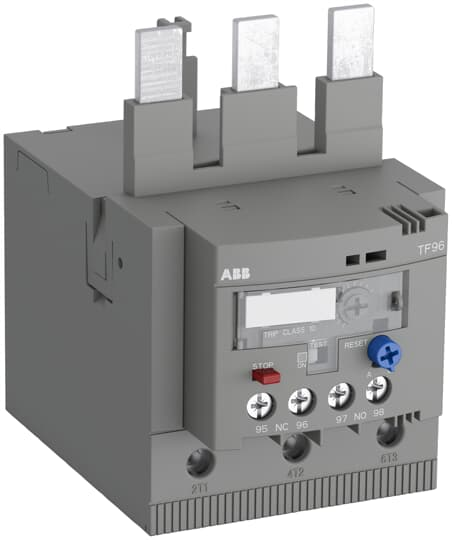

ABB TF96-78 TOL,AF80-96,CLASS-10,65

Manufacturer: ABB Low Voltage | Catalog # TF96-78 | Cooper Electric Part # 2075575
$360.62/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The TF96-68 thermal overload relay is an economic electromechanical protection device for the main circuit. it offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. further features are the temperature compensation, trip contact (nc), signal contact (no), automatic- or manUAl reset selectable, trip-free mechanism, stop function and a trip indication. The overload relays are connected directly to the block contactors. single mounting kits are available as accessory.

Technical Information

Amperage
65-78 Amp
Conductor Size
8-1 AWG/8-3 AWG
Contact Configuration
1 NO, 1 NC
Enclosure Rating
IP10, IP20
Enclosure Type
IP20, IP10
Number of Poles
3 Pole
Power Rating
2.7 - 3.8 W
Standard
EN 60947-1IEC,EN 60947-4-1IEC,EN 60947-5-1UL 60947-1UL 60947-4-1,IEC
Temperature Rating
-40 to 70 degrees C
Voltage
690 VAC/440 VDC Main Circuit, 600 VAC/VDC Auxiliary Circuit
Wire Size
(1) 8-1 AWG, (2) 8-3 AWG Flexible, (1) 8-1 AWG, (2) 8-3 AWG Stranded (Mains), 1/2 x 18-12 AWG Flexible, 1/2 x 18-12 AWG Stranded (Auxiliary)

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
888614001879
Class
Class 10
GTiN
00888614001879
Used With
AF80, AF96 Contractor
