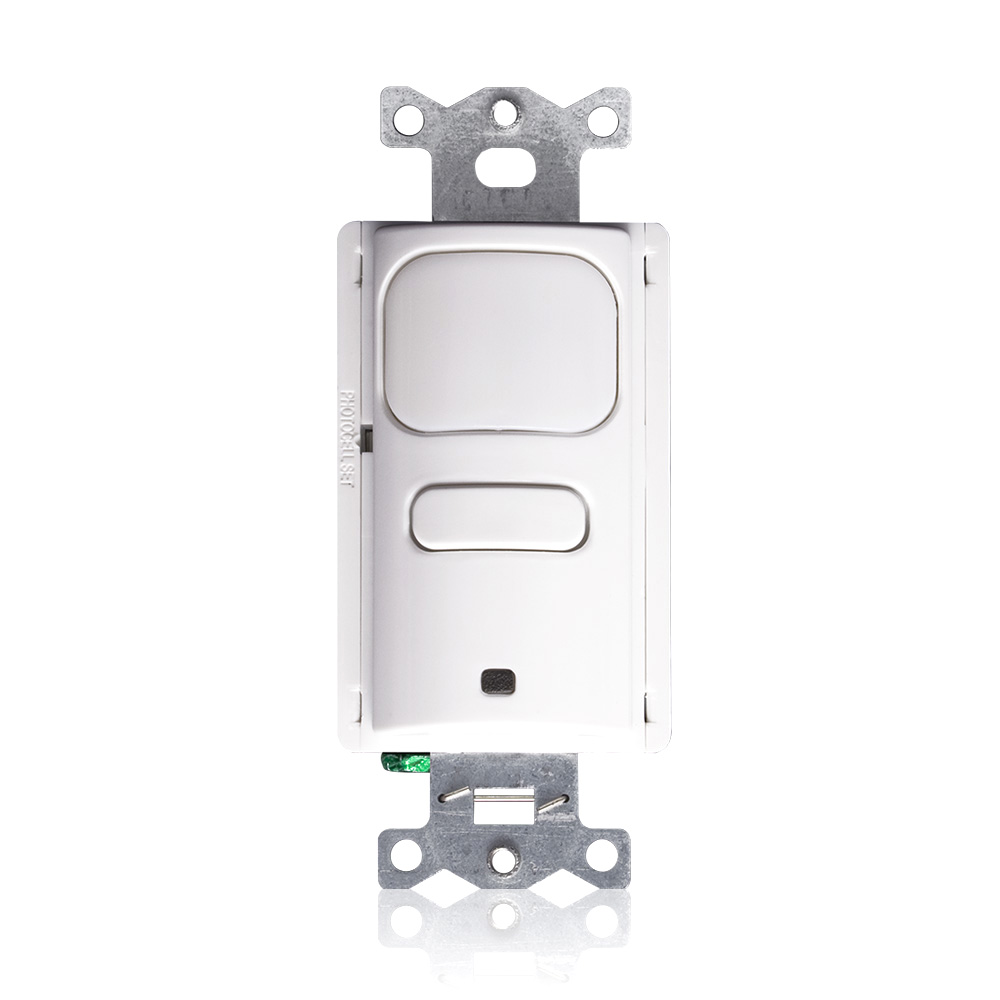

Product image for LEV OSS24-I0W WH PIR 24V WL SW SENS
Image thumbnail 0

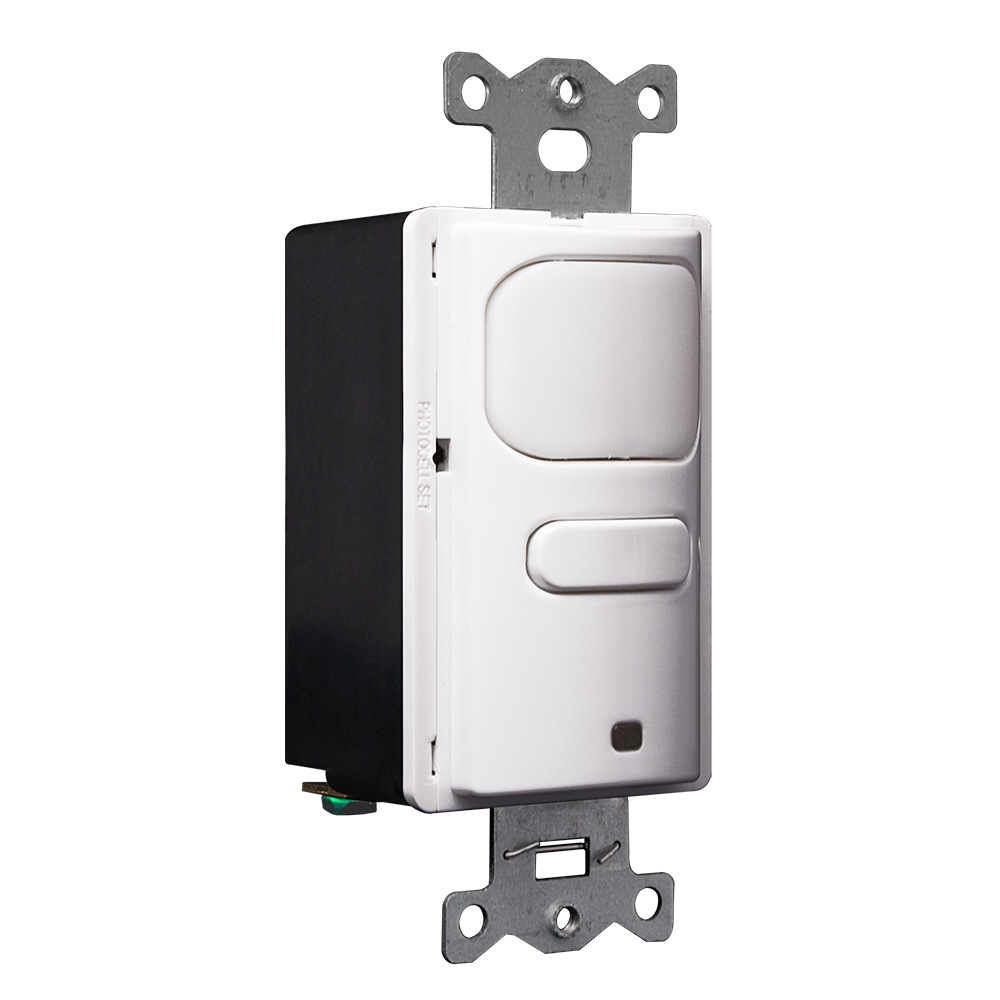

Image thumbnail 1

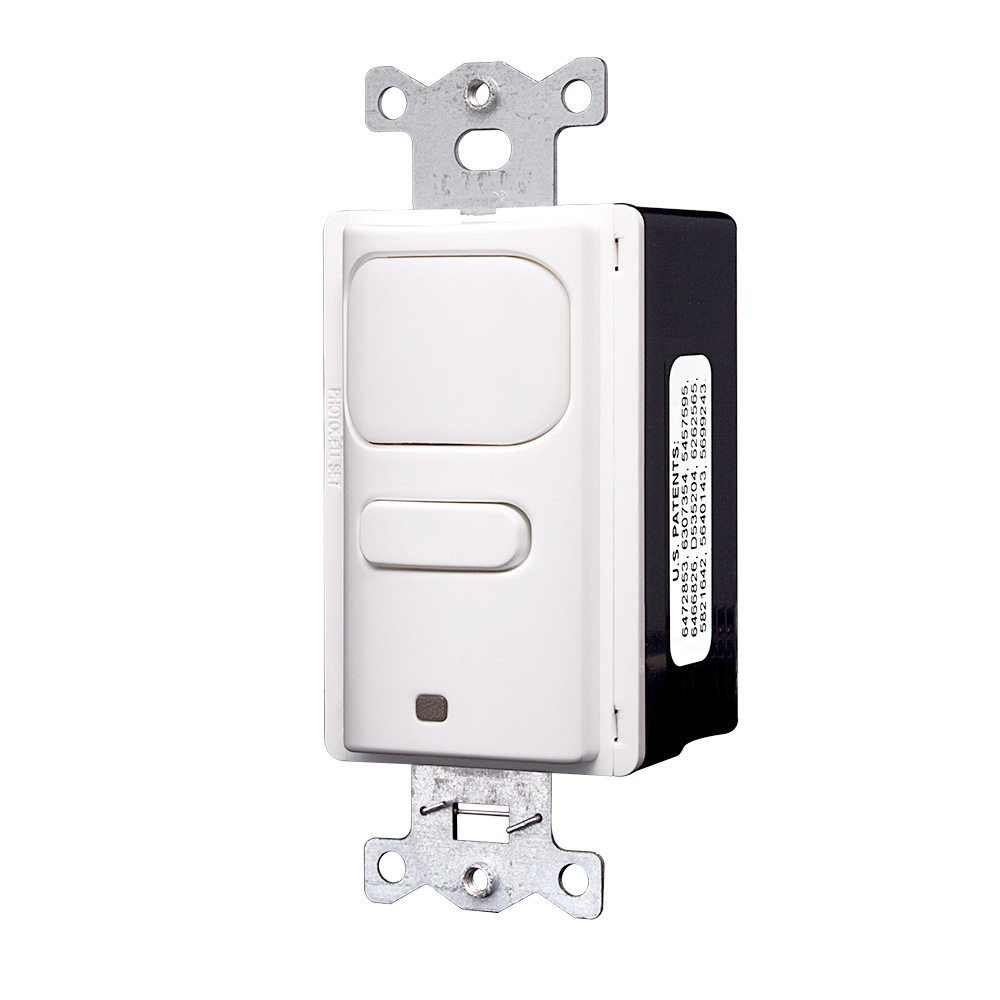

Image thumbnail 2
Image thumbnail 3
Email

LEV OSS24-I0W WH PIR 24V WL SW SENS

Manufacturer: Leviton Mfg Co | Catalog # OSS24-I0W | Cooper Electric Part # 2066409
$169.95/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
24V Passive Infrared (PIR) Wall Switch Sensor lighting control. Occupancy (auto-on) and Vacancy (manual-on) operating modes, 1 relay mode for single-level switching, 1,000 square-foot, 180 degree coverage. 24VDC, no minimum load requirement, zero arc point switching. Title 24 and IECC and ASHRAE 90.1 Compliant. UL and cUL Listed. Color: White

Technical Information

Amperage
33 mA
Applications
The OSS24 Delivers Automatic Lighting Control for Energy Savings and Convenience in a Variety of Commercial Applications including Lobbies, Small Offices, Small Meeting Rooms, Restrooms
Coverage
1000 sq-ft
Grade
Commercial
Lens Type
Impact Resistant
Material
Plastic
Mounting Type
Wall
Number of Poles
1 Pole
Operating Temperature
40 degrees C
Sensor Type
Passive Infrared
Size
45.42 mm
Standard
Title 24
Switch Type
Single-Pole
Temperature Rating
32 - 104 degrees F
Type
Wall Switch, Automatic/Manual-On/Off, Indoor
Voltage
24 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
C/I OCCUPANCY SENSORS

General Product Info

12-Digit UPC
078477767474
Color
White
GTiN
00078477767474
Product UPC
07847776747

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Meets energy code requirements for ASHRAE 90.1 and California Title 24, IECC, UL and cUL listed
  • Self-adaptive technologyno manual adjustment required
  • Occupancy (auto-ON) and vacancy (manual-ON) modes
  • False detection timer: PIR sensitivity scans for movements and shuts lights OFF after a set amount of time preventing false triggers
  • 180° field-of-view provides approximately 1,000 square feet of coverage
  • Adjustable time delays
  • The OSS24 provides a maintenance free, install-and-forget operation with selectable operating modes
  • Five-year limited warranty
  • The Leviton Passive Infrared (PIR) Indoor Wall Switch Sensor uses passive infrared detection technology to monitor a room and automatically switches lights ON and OFF. The OSS24 uses a built-in photocell for automatic daylight harvesting and smart software to analyze the controlled area and make digital adjustments to sensitivity and timer settings.
