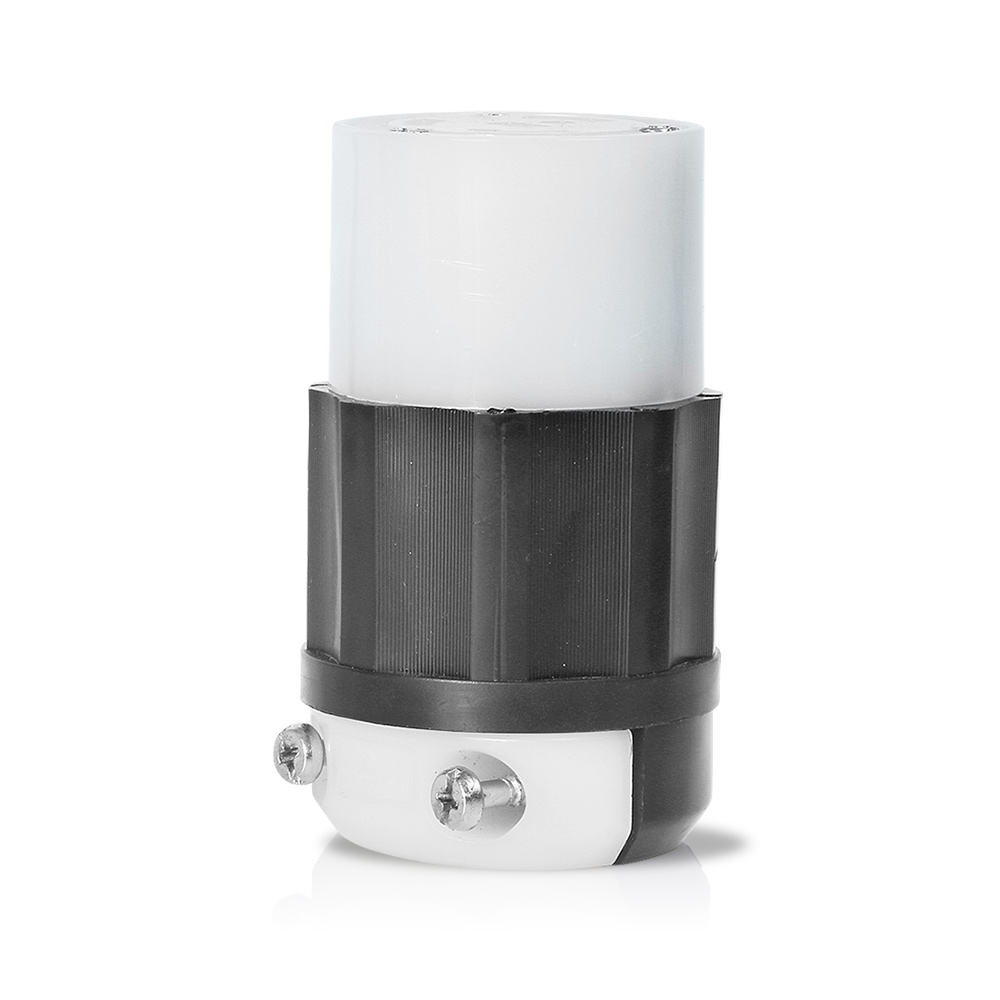

Product image for Leviton 4729-C 15 Amp 125 Volt 2-Pole 3-Wire NEMA L5-15R 1/2 Hp Black/White Nylon Grounding Locking Connector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

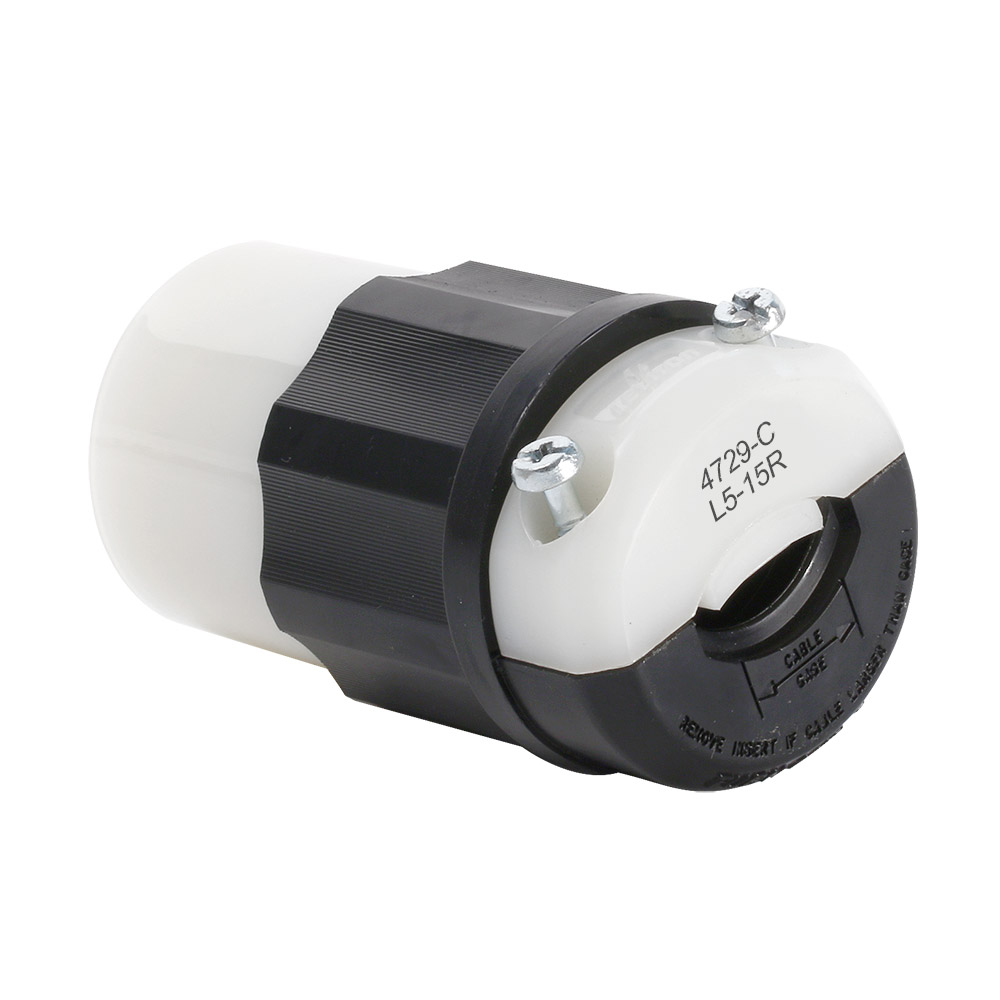

Leviton 4729-C 15 Amp 125 Volt 2-Pole 3-Wire NEMA L5-15R 1/2 Hp Black/White Nylon Grounding Locking Connector

Manufacturer: Leviton Mfg Co | Catalog # 4729-C | Cooper Electric Part # 20630
$73.61/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
15 Amp, 125 Volt, NEMA L5-15R, 2P, 3W, Locking Connector, Industrial Grade, Grounding - Black/White

Technical Information

Amperage
15 Amp
Applications
Commercial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG
Connection Type
Screw
Contact Material
Solid Brass
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Flamability Class
Rated HB Or Better UL94
Grounding
Grounding
Horsepower
1/2 hp
Insulation Material
Nylon
Material
Nylon
NEMA
WD-6
Number of Conductors
3
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 to 60 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
1.53 Dia x 2.76 H IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
10 lb-in
Type
Straight
Voltage
125 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477795521
Color
Black and White
Environment
Dry
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477795521
Product UPC
07847779552

Dimensions

Diameter
1.53 Inch
Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features

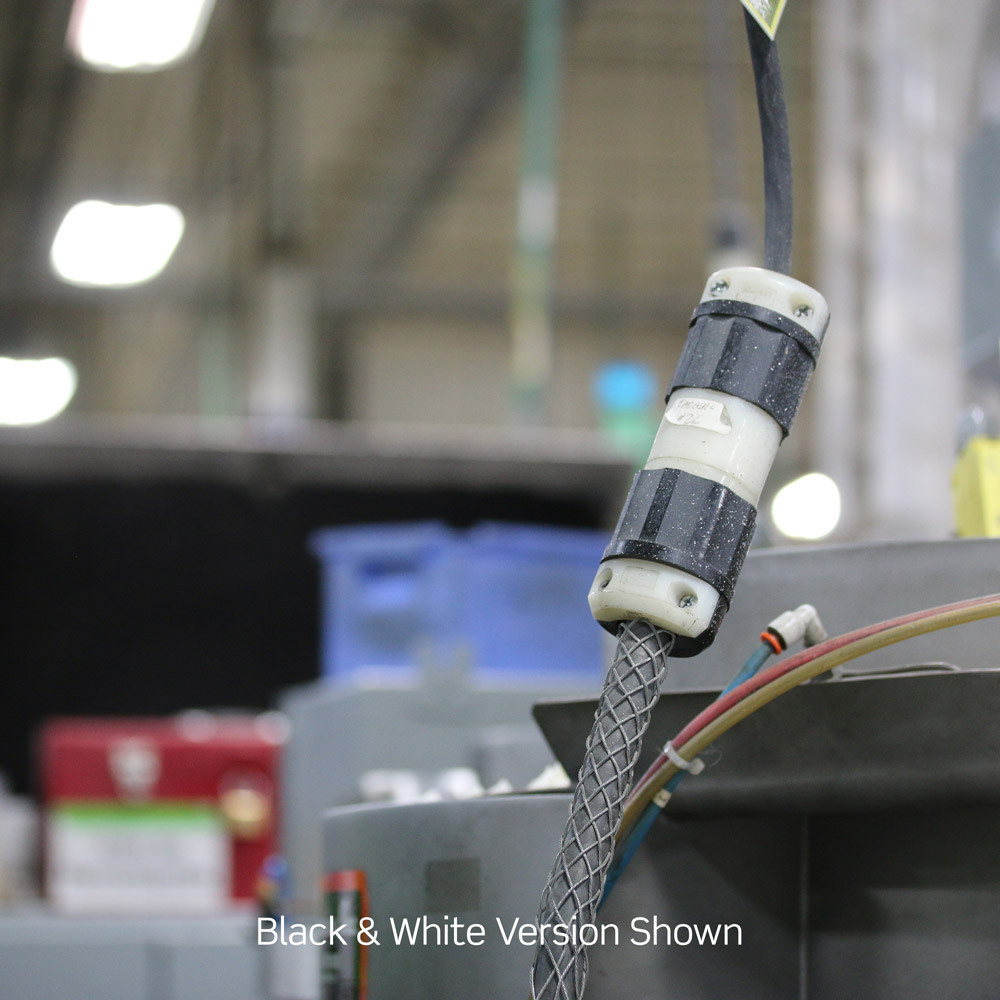

  • Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
  • One piece contacts reduce friction and overheating
  • Unique cord clamp accepts wide range of cord sizes
  • Rugged nylon construction resists impact, sunlight, chemicals, and rough use
  • Industry exclusive limited lifetime warranty
NEMA

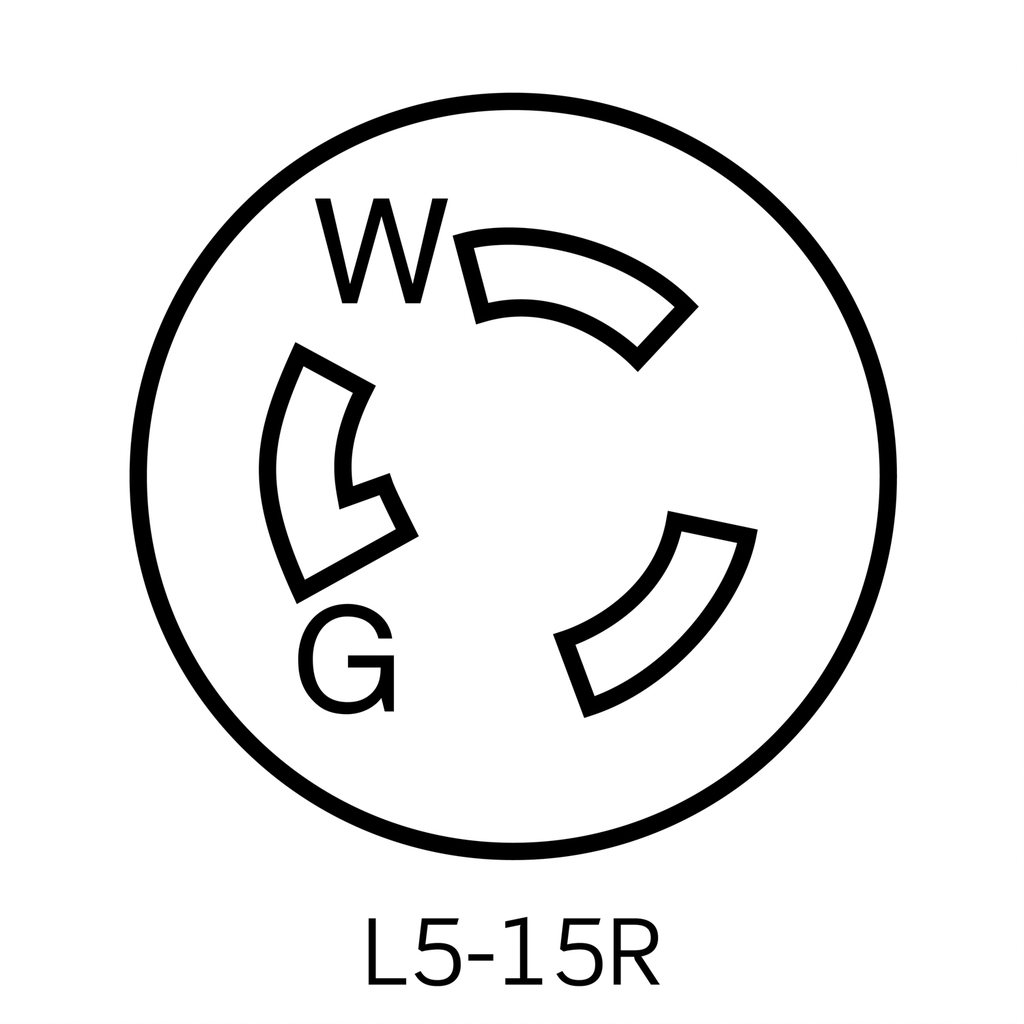

  • L5-15R
