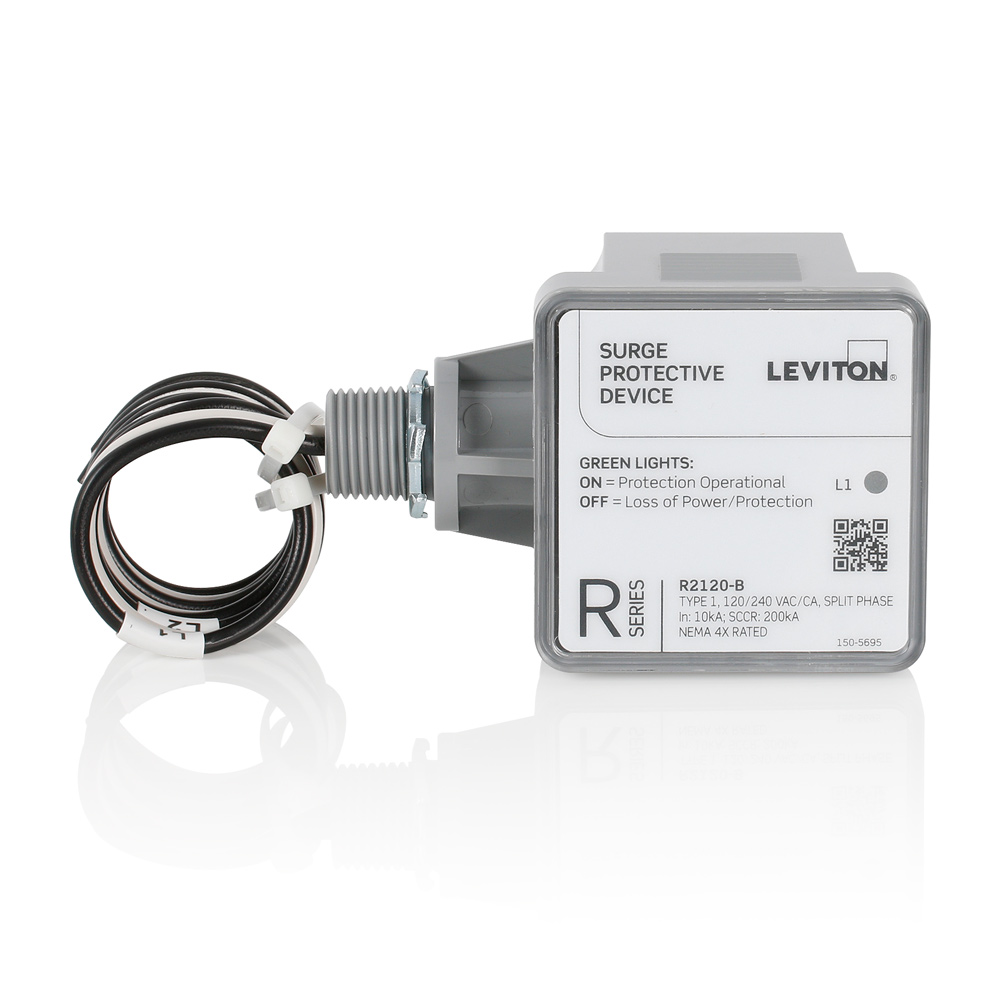

Product image for LEV R2120-B SPD PANEL R SPLIT 120/2
Image thumbnail 0

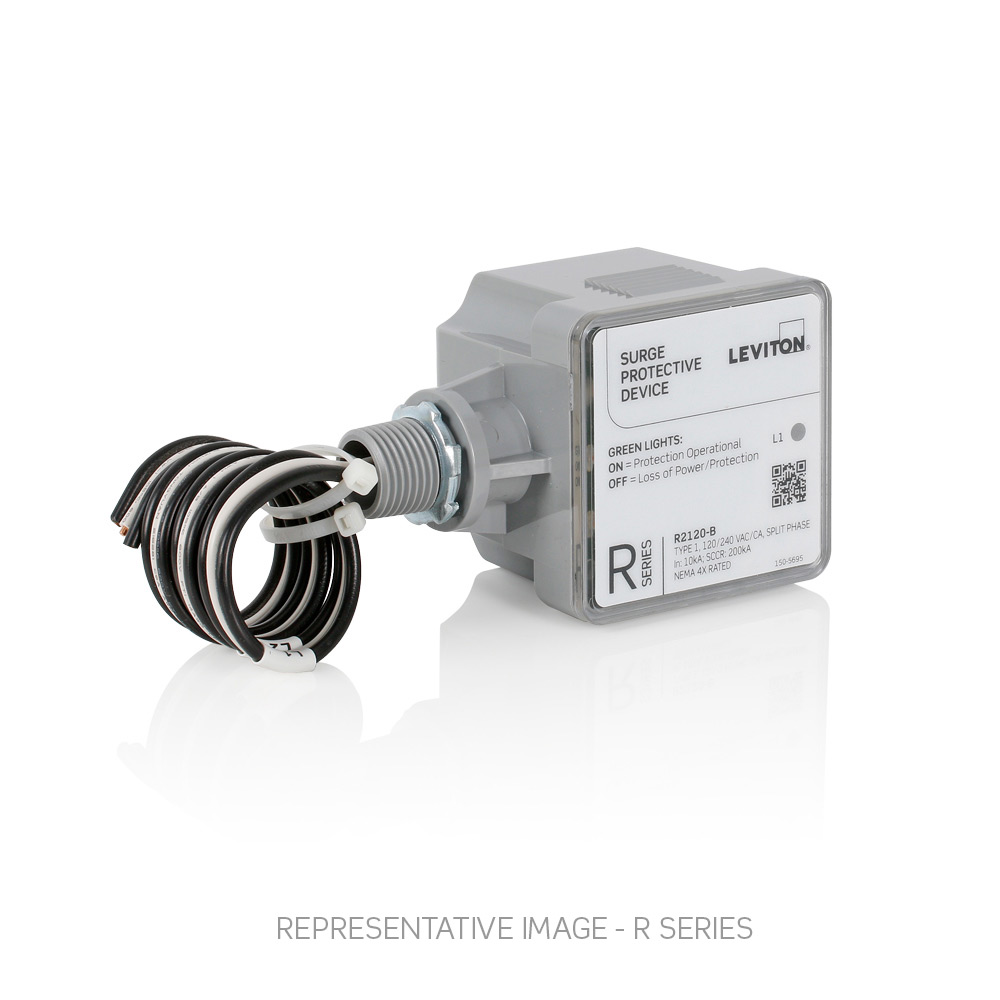

Image thumbnail 1

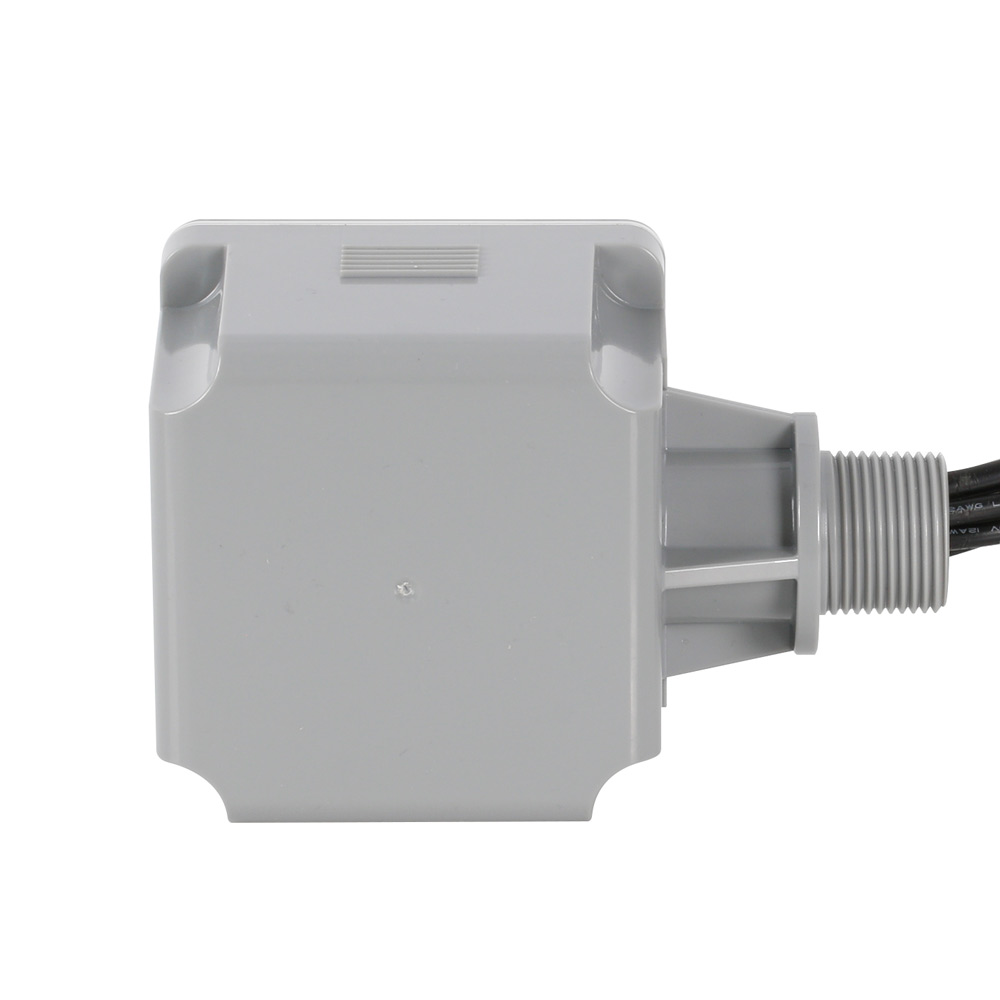

Image thumbnail 2
Email

LEV R2120-B SPD PANEL R SPLIT 120/2

Manufacturer: Leviton Mfg Co | Catalog # R2120-B | Cooper Electric Part # 2057582
$144.25/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
R Series Type 1 Surge Panel, 120/240 VAC, Split Phase, Max Surge Current Rating of 36kA per Mode/36kA per Phase, 200kA Short Circuit Current Rating (SCCR), 10kA I-nominal (l n ) Rating, NEMA 4X Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 700, L-L: 1200, Maximum Continuous Operating Voltage (MCOV): 180/360V, Plastic Enclosure, LED Status Monitoring, UL 1449 Listed, Approximate Lead Length = 18", White

Technical Information

Frequency
50 Hz
Mounting Type
Surface
Storage Temperature
-45 degrees C

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477583012
Color
Gray
GTiN
00078477583012
Product UPC
07847758301

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
Please Contact Customer Service
Features
  • Max Surge Current Rating (Surge Capacity)
  • The maximum amount of current the device is capable of diverting to ground during a single surge event without performance degradation of more than 10%
  • Higher values are better Nominal Discharge Current Rating (I n )
  • Leviton surge protective devices (SPDs) divert damaging voltage transients, or surges, away from electronic equipment
  • Designed for RESIDENTIAL APPLICATIONS, the R Series is compact in size and easy to install
  • Code Compliant in 2020, Article 230.67 of the National Electrical Code® (NEC) updates required all services supplying dwelling units to be provided with a surge protective device (SPD), as an integral part of equipment or located immediately adjacent. The SPD must be a Type 1 or Type 2 SPD . The 2023 code expanded the requirements to dormitory units, guest rooms and guest suites of hotels and motels, and areas of nursing homes and limited-care facilities used exclusively as patient sleeping rooms Levitons R Series features a $25K Connected Equipment Warranty click here for more information
