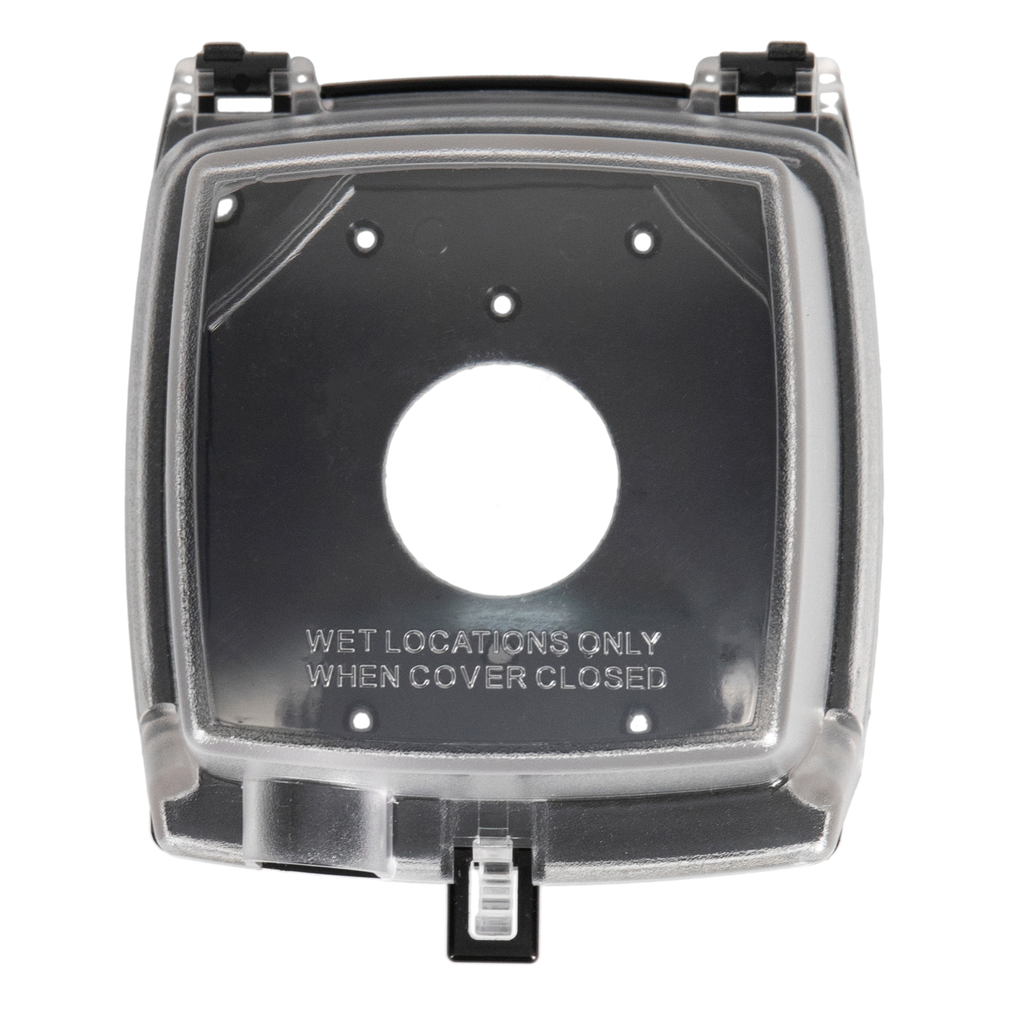

Product image for Intermatic WP1050 1Gang or 2Gang Weatherproof In-Use Cover, 4-3/4" Deep - Clear
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

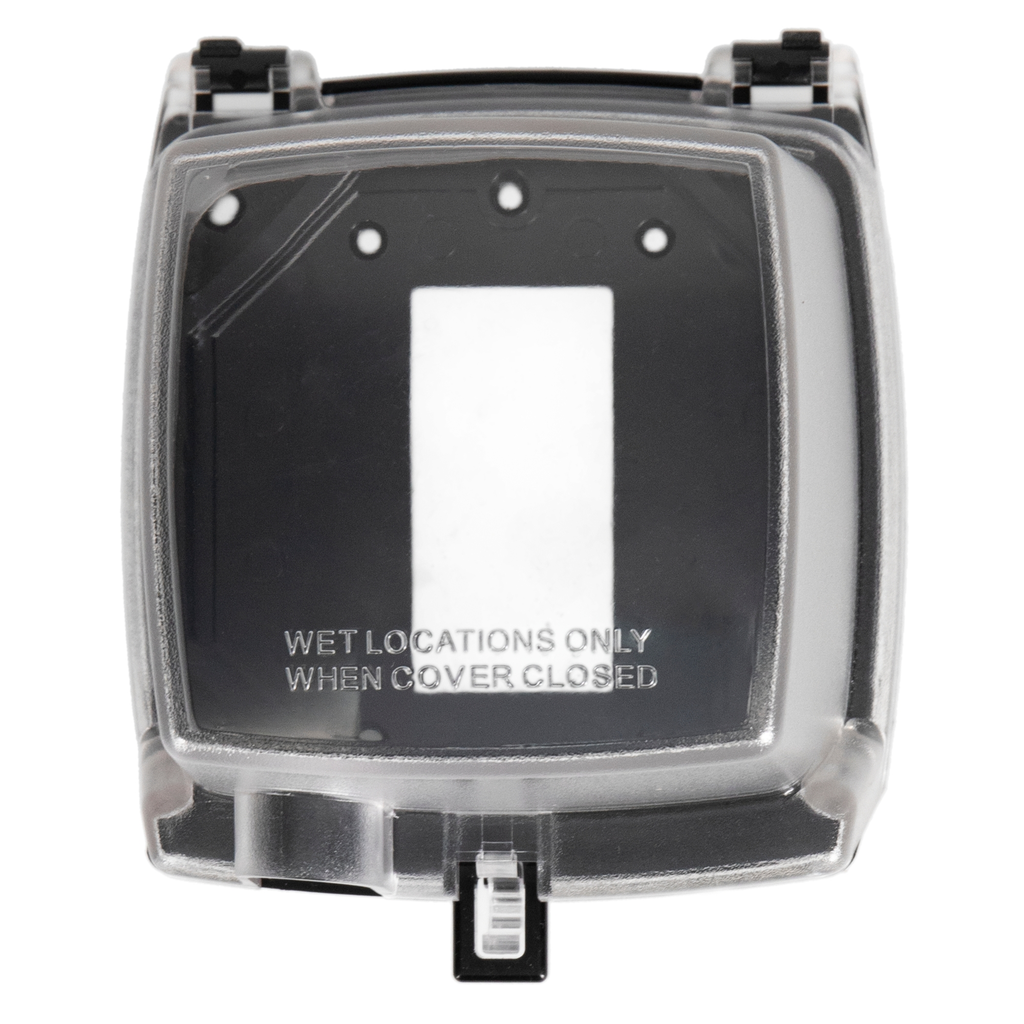

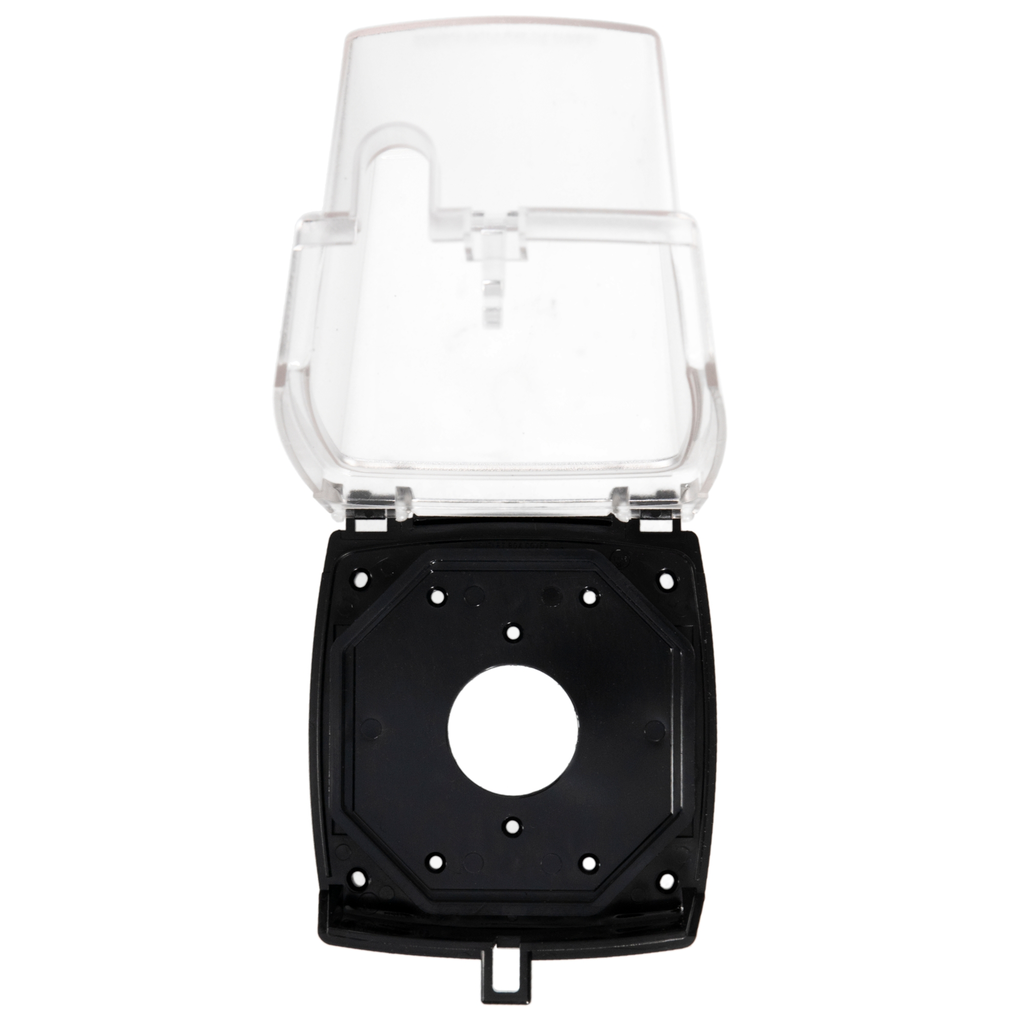

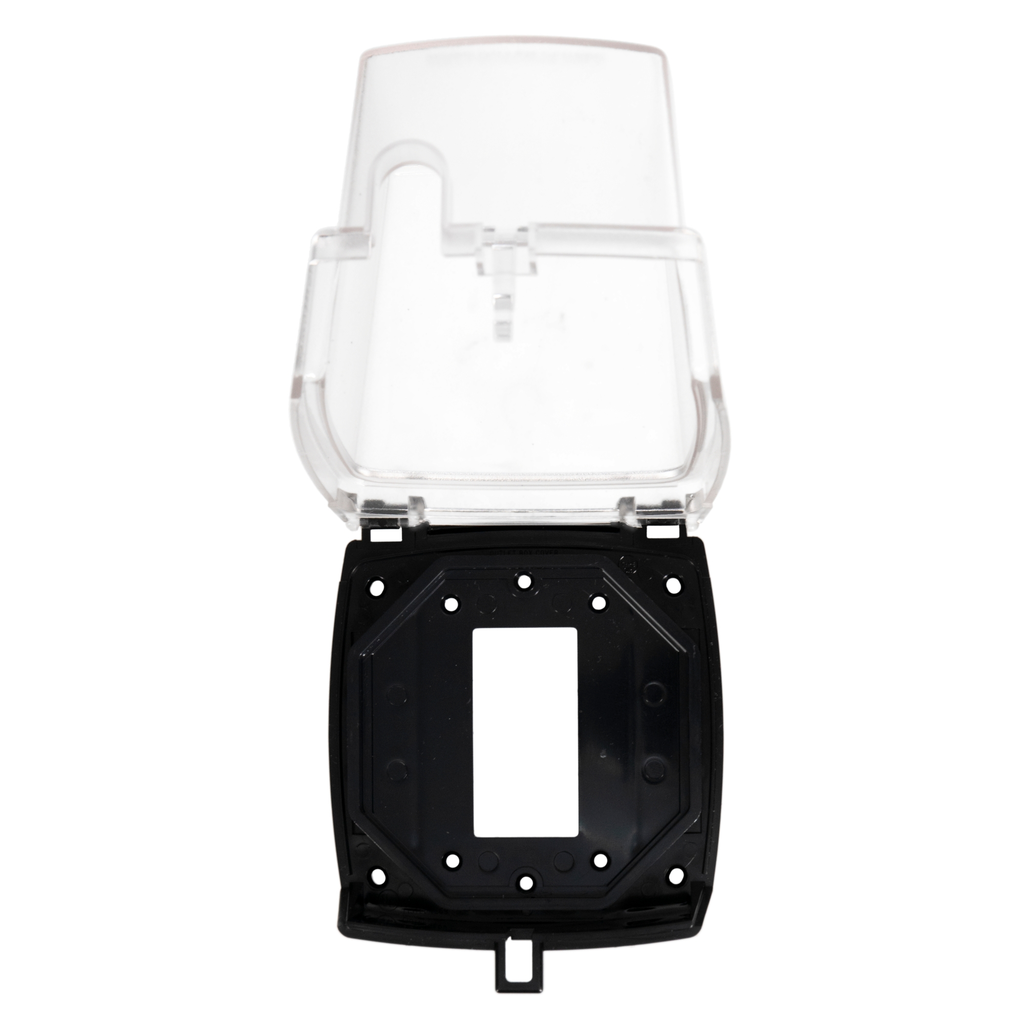

Intermatic WP1050 1Gang or 2Gang Weatherproof In-Use Cover, 4-3/4" Deep - Clear

Manufacturer: Intermatic, Inc | Catalog # WP1050 | Cooper Electric Part # 204709
$71.56/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

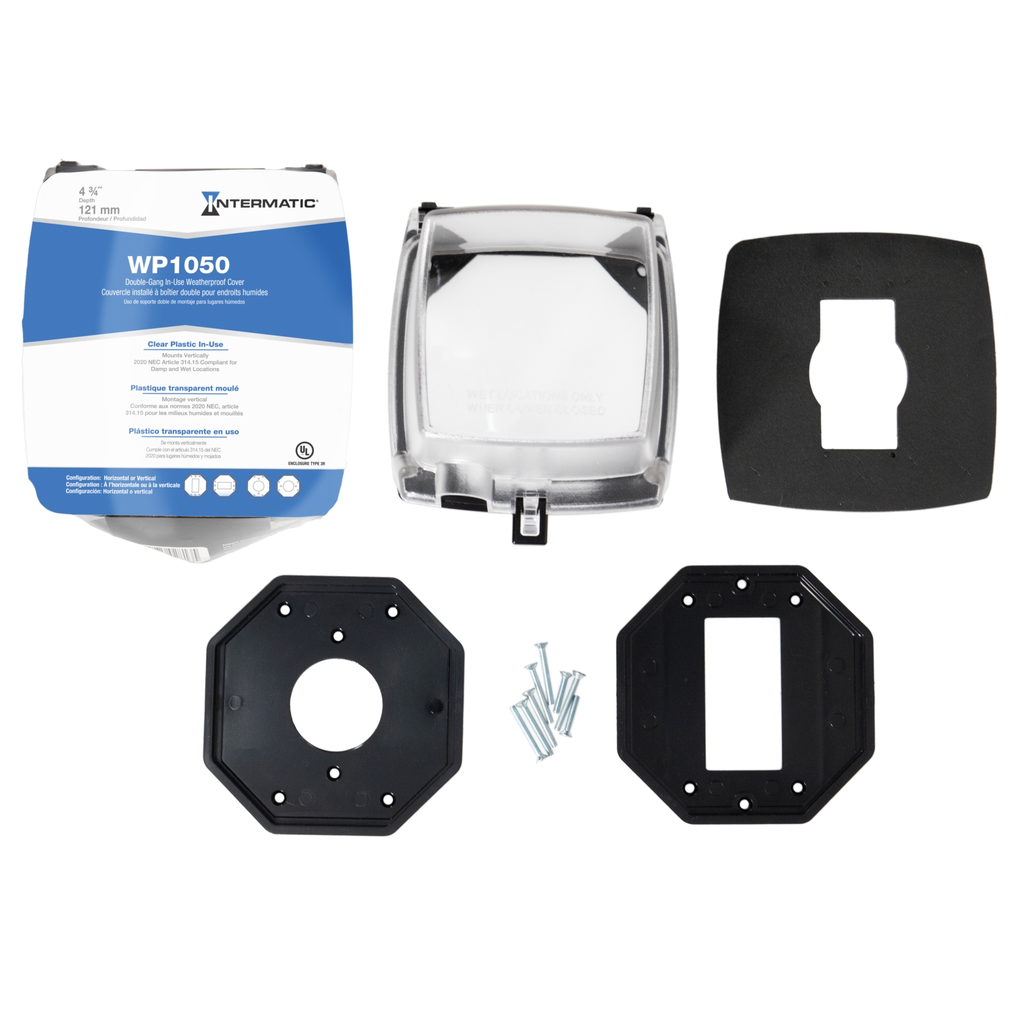

Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.

Technical Information

Applications
For Schools, Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage
Cable Size
(2) 14 Gauge, (1) 10 Gauge
Enclosure Rating
3R
Enclosure Type
NEMA 3R
Gang Type
Double
Insulation Material
Neoprene Gasket
Insulation Type
Neoprene Gasket
Material
Polycarbonate
Mounting Type
Vertical, Screw
Number of Gangs
2 Gang
Number of Outlets
2
Size
4-3/4 DEPTH IN, 120.65 DEPTH MM
Type
Jumbo, Rectangular

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275028135
Color
Clear White
Construction
Heavy-Duty Polycarbonate
Construction Features
Heavy-Duty Polycarbonate
GTiN
00078275028135
Product UPC
07827502813
Shape
Rectangle

Dimensions

Depth
4-3/4 Inch
Height
6 Inch
Warranty Length
1 yr
Width
5 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Complies with 2020 NEC Article 314.15 for damp and wet locations
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1?8\" (3 mm) thick neoprene gasket with slits for mounting screws
  • WP102 GFCI & WP107 Round single-gang application inserts included.
  • Inserts can be rotated to fit vertical or horizontal applications.
  • Fits standard square 4 wall boxes with single-gang applications.
  • Max cord size: (2) #14 AWG or (1) #12 AWG, WP1050 (2) #14 AWG or (1) #10 AWG
  • Warranty: 1-year limited
