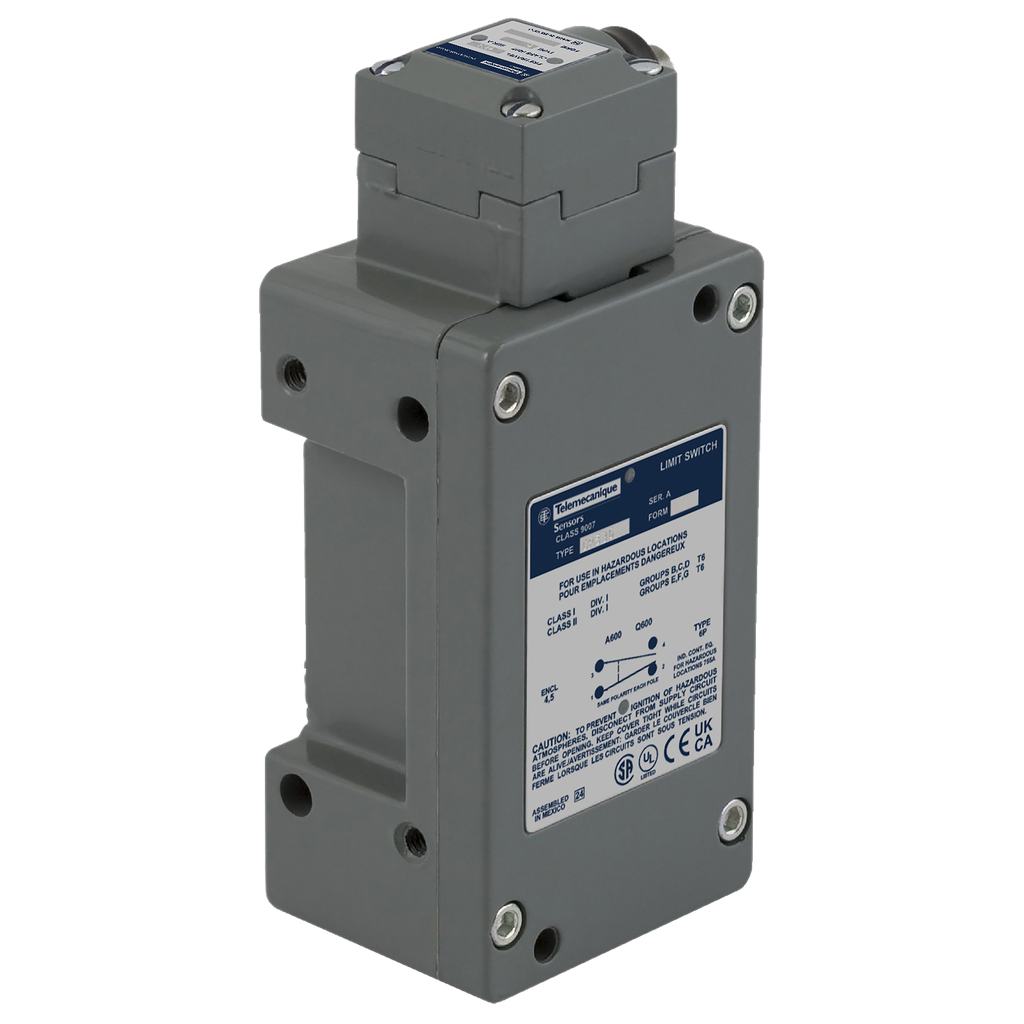

Product image for TES 9007CR53GD Limit switch, 9007, 9007CR 1 NO/NC, side push rod plunger, adjustable
Image thumbnail 0
Image thumbnail 1
Email

TES 9007CR53GD Limit switch, 9007, 9007CR 1 NO/NC, side push rod plunger, adjustable

Manufacturer: TES Electric | Catalog # 9007CR53GD | Cooper Electric Part # 2043511
$388.50/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TES 9007CR53GD Limit switch, 9007, 9007CR 1 NO/NC, side push rod plunger, adjustable

Technical Information

Action
Snap action;On end
Actuator
STAINLESS STEEL SPRING RETURN SIDE PLUNGER ADJUSTABLE)
Amperage
10 Amp
Applications
Hazardous location box
Body Material
Aluminium
Body Type
Fixed NULL
Contact Configuration
NC-NO
Contact Material
Silver
Contact Rating
NEMA A600/Q600
Enclosure
NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Head Type
Plunger head NULL
Material
Metal
Net Weight
2.5 lb
Number of Poles
1 Pole
Operating Cycles
1M
Operating Temperature
-20-185 Adegrees F HAZARDOUS LOCATION
Size
3.03 in
Storage Temperature
-20-185 degrees F
TC Connection
SCREW-CLAMP TERMINALS AWG 22...AWG 12), 1-2
Type
Limit switch
Voltage
1.2 A 600 Volt AC, A600 NEMA-1.5 A 480 Volt AC, A600 NEMA-3 A 240 Volt AC, A600 NEMA-6 A 120 Volt AC, A600 NEMA-0.1 A 600 Volt DC, Q600 NEMA-0.27 A 250 Volt AC, Q600 NEMA-0.55 A 125 Volt DC, Q600 NEMA

Manufacturer Information

Brand
Telemecanique
Sub Brand
9007CR

General Product Info

12-Digit UPC
785901857358
Environmental Conditions
STANDARD ENVIRONMENT
Product UPC
78590185735
Weight
2.5 lb

Dimensions

Depth
3.03 Inch
Height
6.1-6.1 Inch
Warranty Length
18 mth
Width
2.72 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
