SQD NSYMF66 Microperforated mountin

Manufacturer: Square-D / Schneider | Catalog # NSYMF66 | Cooper Electric Part # 2041040
$111.17/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

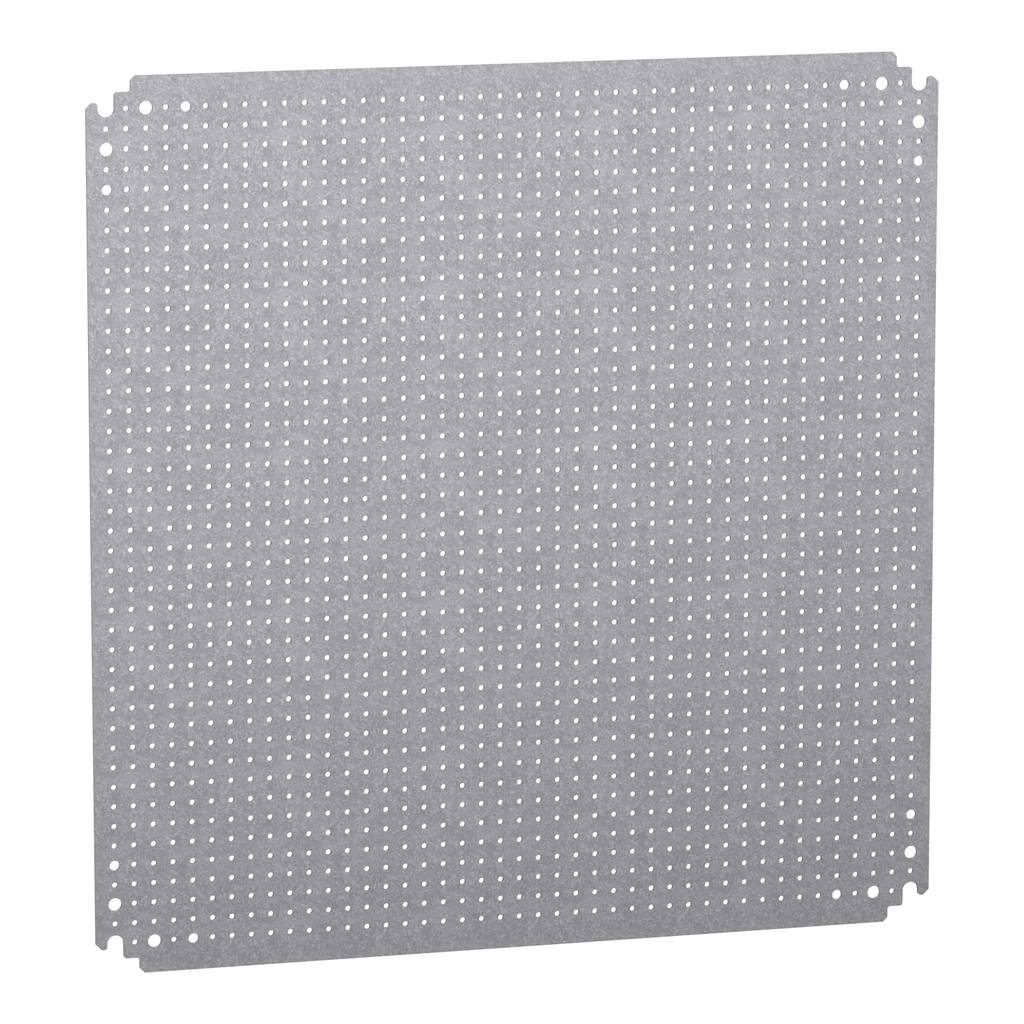

Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is600 x W is600 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 135 Kg permissible load. Galvanised steel.

Technical Information

Applications
AC Drive, 7.5 kW (10 Hp), 525-600V AC Input, 50 Hz/60 Hz, Three-Phase, 12Amp, C Frame, Panel Mounting, IP20/NEMA Open Type, with 7th IGBT Brake
Material
Steel
Net Weight
4.4 kg
Range
Spacial
Size
0.07 in
Type
1-Gang Wallplate

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SPACIAL,SPACIAL CRN-SPACIAL S3D-SPACIAL S3X-THALASSA PLM

General Product Info

12-Digit UPC
606480183105
Construction
GALVANISED STEEL
GTiN
03606480183102
Product UPC
60648018310
Weight
4.4 kg

Dimensions

Depth
4.92 Inch
Height
22.24 Inch
Thickness
1.8 mm
Warranty Length
18 mth
Width
21.65 in

Certifications and Compliance

Country of Origin
Spain
