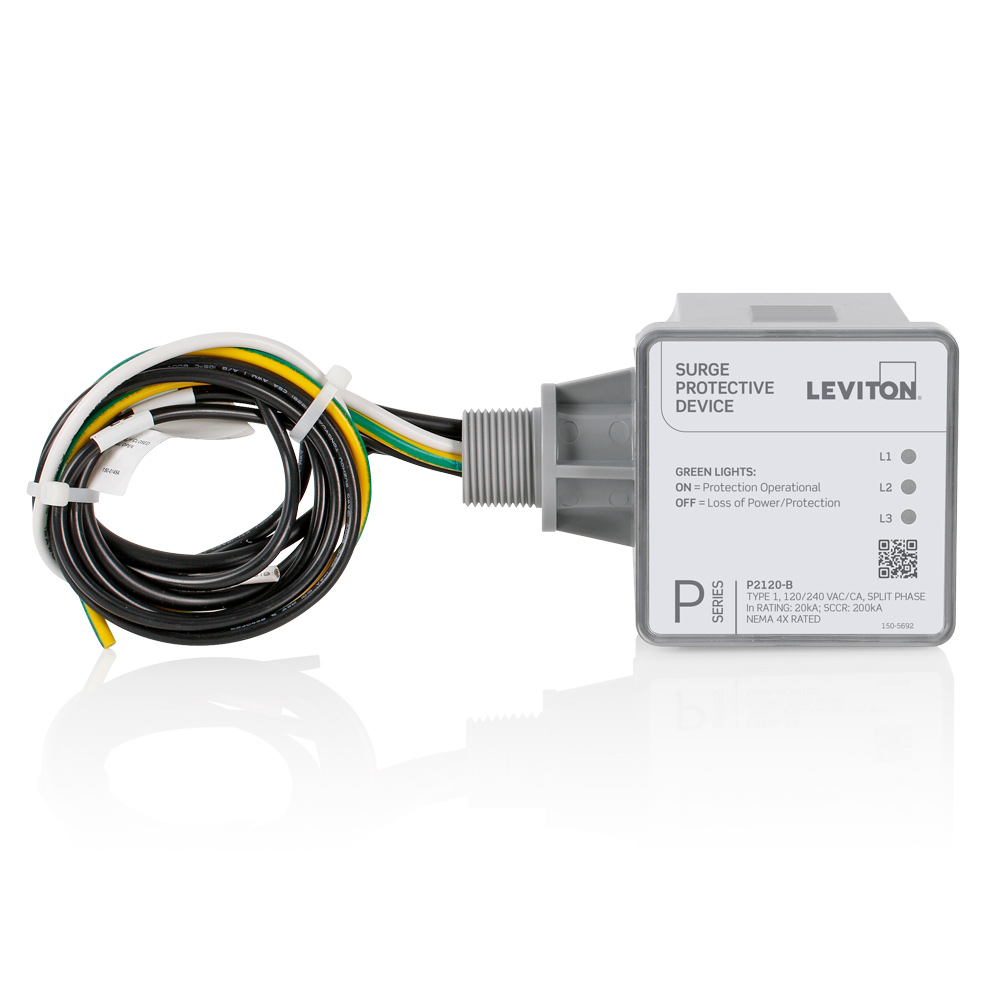

Product image for LEV P2120-B SPD PANEL P SPLIT 120/2
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

LEV P2120-B SPD PANEL P SPLIT 120/2

Manufacturer: Leviton Mfg Co | Catalog # P2120-B | Cooper Electric Part # 2040072
$440.25/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
P Series Type 1 Surge Panel, 120/240 VAC, Split Phase, Max Surge Current Rating of 50kA per Mode/50kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (l n ) Rating, NEMA 4X Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 700, L-G: 1200, N-G: 600, Maximum Continuous Operating Voltage (MCOV): 180, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, Approximate Lead Length = 16",

Technical Information

Frequency
50 Hz
Mounting Type
Surface
Storage Temperature
-45 degrees C

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477583029
Color
Gray
GTiN
00078477583029
Product UPC
07847758302

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
Please Contact Customer Service
Features
  • Leviton surge protective devices (SPDs) divert damaging voltage transients, or surges, away from electronic equipment
  • Designed for RESIDENTIAL AND LIGHT COMMERCIAL APPLICATIONS, the P Series provides protection in single, split or three phase configurations
  • Code Compliant in 2020, Article 230.67 of the National Electrical Code® (NEC) updates required all services supplying dwelling units to be provided with a surge protective device (SPD), as an integral part of equipment or located immediately adjacent. The SPD must be a Type 1 or Type 2 SPD . The 2023 code expanded the requirements to dormitory units, guest rooms and guest suites of hotels and motels, and areas of nursing homes and limited-care facilities used exclusively as patient sleeping rooms Levitons P2120-B features a $25K Connected Equipment Warranty click here for more information
Related Products
  • PSURG-FLG
Compare
