Slim Non Cutoff LED Wall Pack | Power Select | Color Select | 120-277V Input | Large Housing | Bronze Finish | Glass Lens
Application: Building mount for exterior illumination (perimeters, pathways, loading docks, and other general security lighting requirements)
- Keystone Select Power/Color Technology: 80W/100W/120W and 3000K/4000K/5000K
- Slim, low profile design that matches footprint and distribution of legacy HID wall packs. Optimized for one-for-one replacements
- Powered by Keystone 0–10V dimming LED drivers
- Heavy duty die cast aluminum housing with (5) 1/2-inch threaded conduit hubs: (1) on back and (1) on all four sides
- Borosilicate glass lens diffuses light source and provides uniform distribution

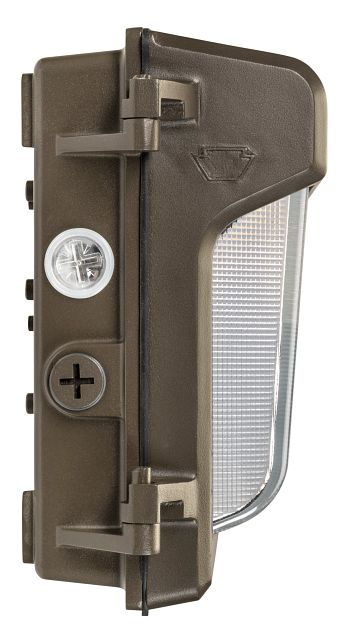

- Built-in dusk-to-dawn photocell behind translucent 3/4-inch threaded plug with anti-yellowing agent
- Ambient operating temperature: -40ºC/-40ºF to 50ºC/122ºF
- Power Factor: >0.95 and THD: <20%
- Covers footprint of mid-size HID wallpacks
- Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
- UL Certified for wet locations, IP65 rated, and Fixture impact rating IK06
- LED chip lifetime: L70 >100,000 hrs @ 25ºC/77ºF ambient fixture temperature
