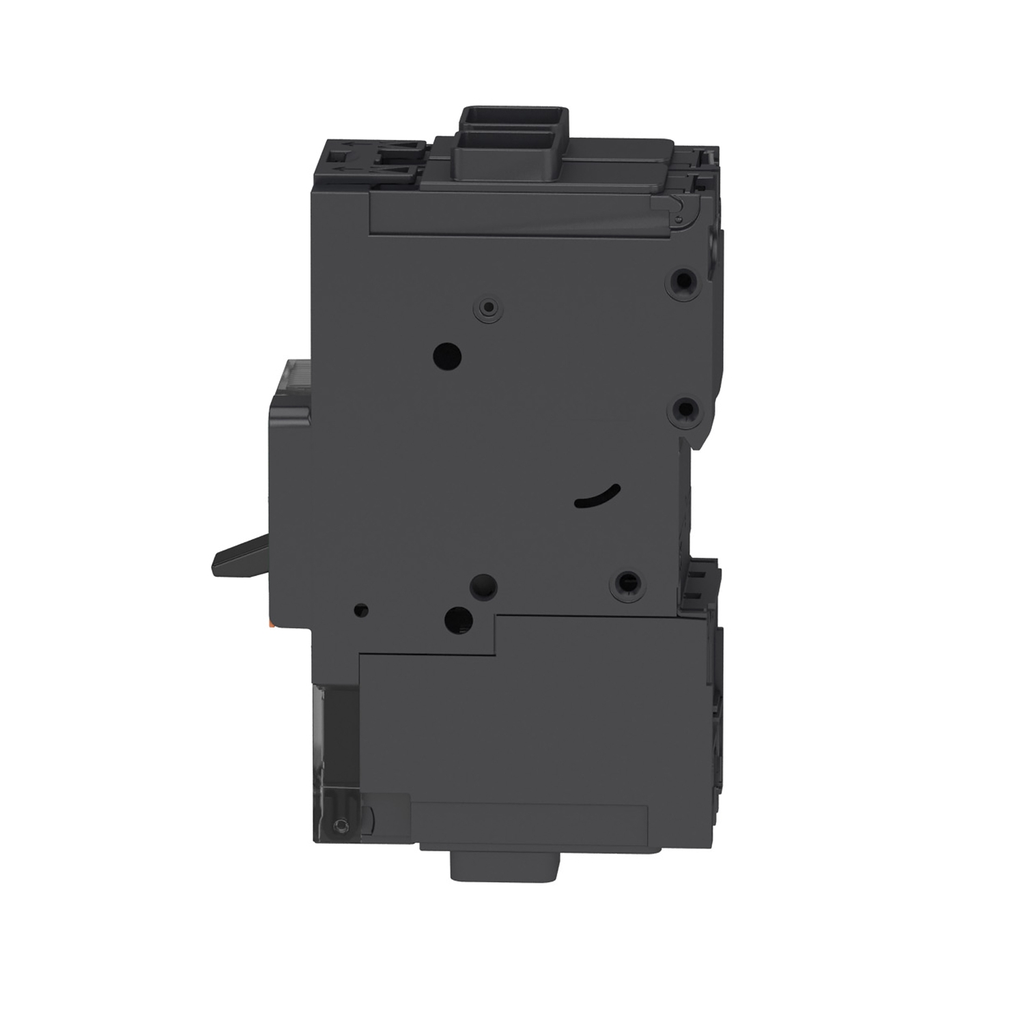

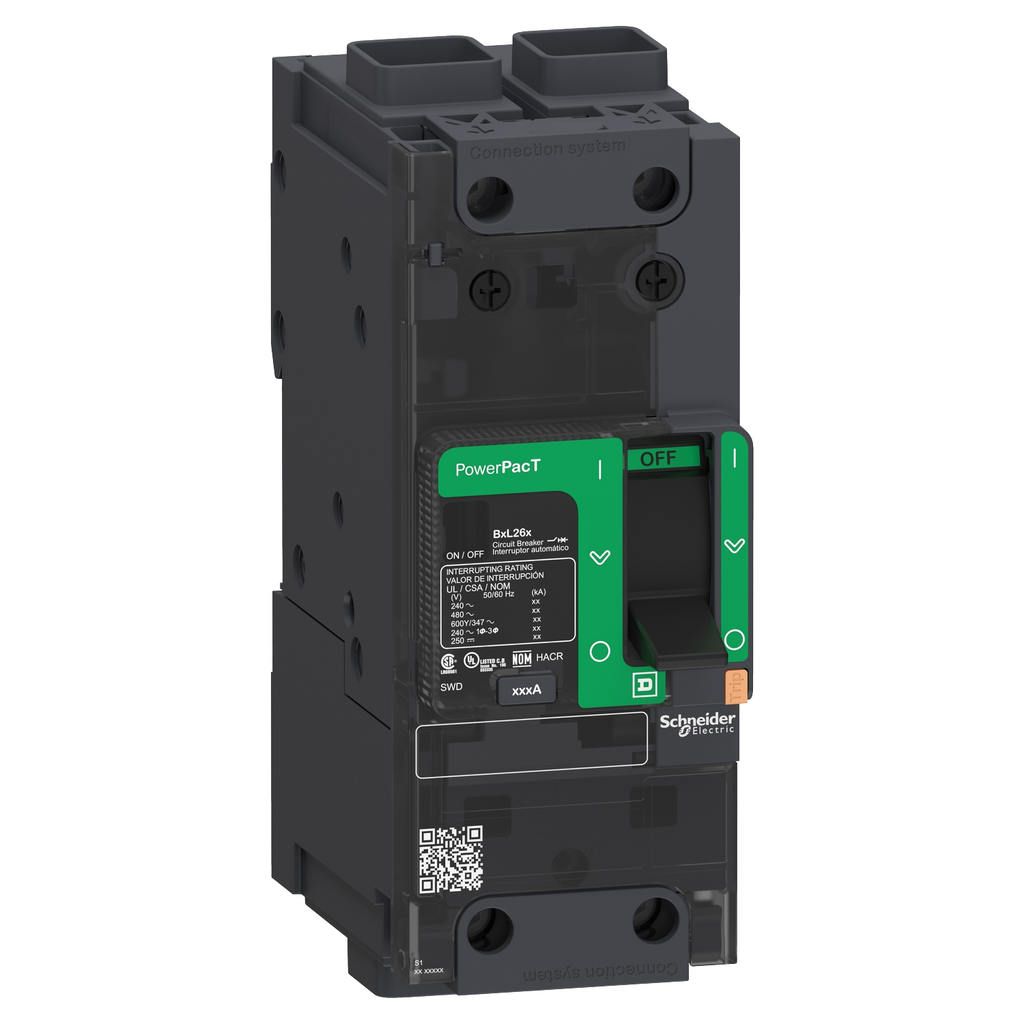

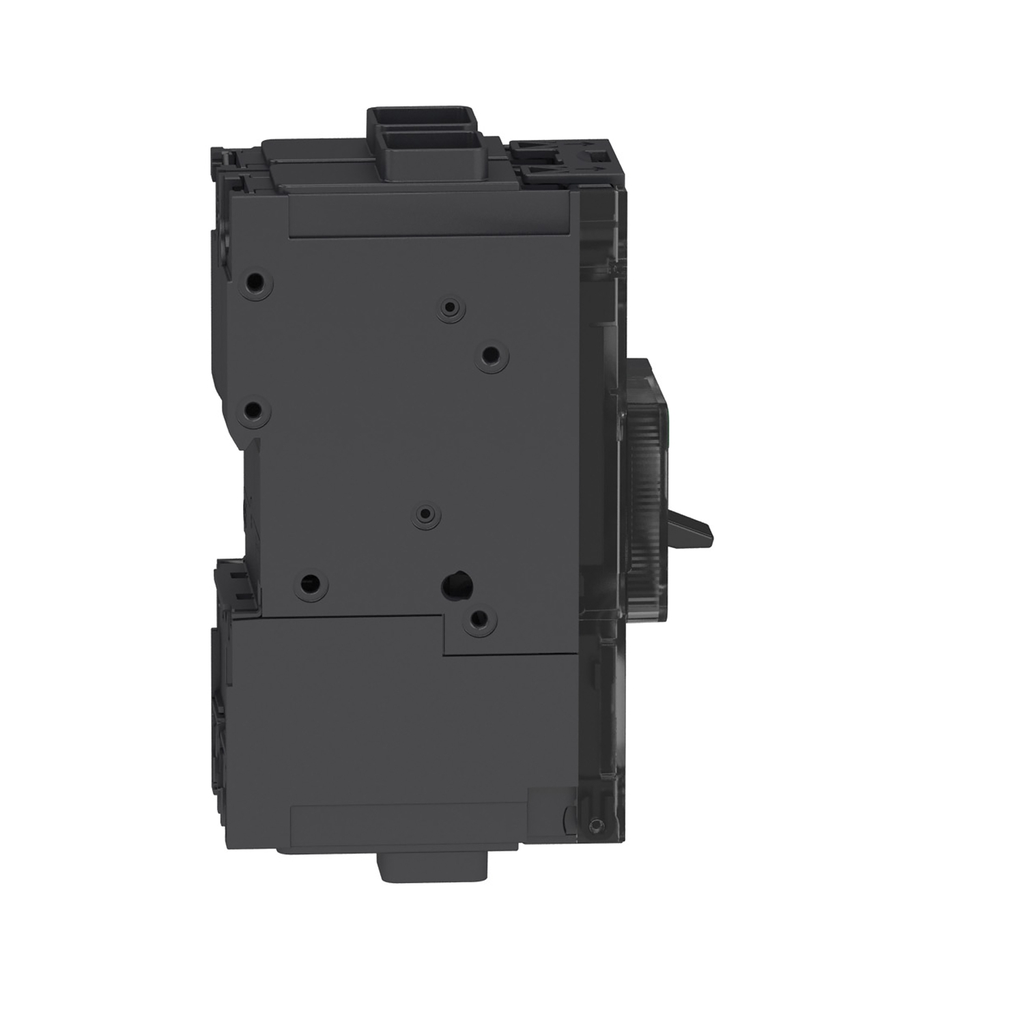

SQUARED BJF26020 Circuit breaker, P

Manufacturer: Square-D / Schneider | Catalog # BJF26020 | Cooper Electric Part # 2033090
$1,403.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Brochure Product Catalog Page
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a break

Technical Information

Net Weight
0.669 kg

Manufacturer Information

Brand
Schneider Electric

General Product Info

Color
Gray
GTiN
03606481193742
Weight
0.669 kg

Dimensions

Depth
3.15 in
Height
5.39 in
Length
20 mm
Width
2.13 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
Country of Origin
Mexico
Uimp Rated Impulse Withstand Voltage
  • 8 kV IEC 60947-2
Mounting Mode
  • clip-on 35 mm symmetrical DIN rail)
  • by screws plate)
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
Mechanical Durability
  • 15000 cycles IEC 947-1 Annex K ed 5.2
Carbon Footprint Of The Installation Phase A5
  • 0.3722232514555899
  • 0.4 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 2 kg CO2 eq.
  • 2.1727930071093042
Standards
  • CSA C22.2 No 5
  • NEMA AB1
  • EN/IEC 60947-2
  • NMX J-266
  • EN/IEC 60947-5-1
  • GB 14048.2
  • UL 489
Ue Rated Operational Voltage
  • 690 V AC 50/60 Hz UL 489
Ui Rated Insulation Voltage
  • 800 V IEC 60947-2
Ip Degree Of Protection
  • front cover IP40 IEC 60529
Electrical Connection
  • terminal nut, ON and OFF end
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 7 kg CO2 eq.
  • 6.828229406011014
Electrical Durability
  • 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Ics Rated Service Breaking Capacity
  • 100 kA 220...240 V AC 50/60 Hz IEC 60947-2
  • 25 kA 500...525 V AC 50/60 Hz IEC 60947
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 118 kg CO2 eq.
  • 118.30526031538903
Number Of Slots
  • 1 auxiliary switch OF plug-in)
  • 1 voltage release MN or MX plug-in)
  • 1 voltage release MN o
Carbon Footprint Of The Distribution Phase A4
  • 0
  • 0 kg CO2 eq.
Tightening Torque
  • 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4)
  • 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
Operating Altitude
  • 6561.68 ft (2000 m) without derating
  • 5000 m with derating
Suitability For Isolation
  • yes IEC 60947-2
AWG Gauge
  • AWG 14...AWG 8 aluminium/copper
  • AWG 6...AWG 3/0 aluminium/copper
Trip Unit Technology
  • thermal-magneticTM-D,
Color
  • Gray RAL 7016)
Local Signalling
  • presence of auxiliary contacts flag green)
Product Certifications
  • UL
  • IEC
  • CCC
  • EAC
  • CSA
  • NOM
