Lithonia CNY-LED-ALO-SWW2-UVOLT-PE-PIR-WH-M2 LED Canopy Luminaire, 5k/7.5K/10K Adj Lumens, 3K/4K/5K Switchanble CCT, 120-347V, On-Off Photocell, White Finish

Manufacturer: Lithonia Lighting | Catalog # CNY-LED-ALO-SWW2-UVOLT-PE-PIR-WH-M2 | Cooper Electric Part # 2031367
$231.75/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
5 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet
The CNY LED ALO Canopy Luminaire from Lithonia Lighting is where versatility meets innovation! With an incredible 54 customizable options packed into a single luminaire, you have the power to tailor your lighting experience right on the spot. Adjust color temperature, lumen output, photocell settings, and even activate the integrated motion sensor. It's your lighting, your way! The CNY LED ALO.s 10" x 10" footprint, matching that of typical HID luminaires, goes beyond aesthetics. It expertly conceals any unsightly imperfections, ensuring a seamless, hassle-free installation that eliminates the need for extra patching or repairs. Transform your outdoor space with the CNY LED ALO and enjoy the perfect combination of visually comfortable illumination, energy efficiency, and complete customization . all bundled in a sleek and durable package.

Technical Information

Aperture Size
10 in
Applications
Offices & Banks,Retail
Color Rendering Index
80
Color Temperature
3000 ,4000 ,5000 ,Variable K
Correlated Color Temp
3000 ,4000 ,5000 ,Variable K
Dimmable?
Yes
Lamp Type
LED
Lens Color
Clear
Lens Material
Polycarbonate
Lumens
8,500 Lumen
Material
Aluminum
Mounting Type
Surface
Number of Lamps
1
Power Source
Hardwired
Standard
C-UL-USCA Title 24,DLC Premium
Style
Traditional
Voltage
120-347 Volt
Wattage
75 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
197589495126
Color
White
Environmental Conditions
Outdoor
Finish
Gloss
GTiN
00197589495126
Product Type
Canopy
Product UPC
19758949512
Shape
Square
Weight
4.85 L

Dimensions

Height
3 Inch
Length
10 Inch
Warranty Length
5 yr
Width
10 IN

Certifications and Compliance

Country of Origin
Vietnam
Features
  • TECHNOLOGY: Adjustable Lumen Output (ALO), Switchable Color Temperature (SWW2), Selectable Photocell (PE) and Selectable Motion Sensor (PIR) features allow for this canopy luminaire to offer 54 customizable options in one fixture
  • HOURS OF LIFE: High-efficiency LEDs maintains over 70% of light output at 100,000 hours (L70>100,000 hours)
  • CONTROLS: Includes a selectable photocell that turns the fixture on in the evening and off the next morning and a selectable occupancy sensor that turns on when motion is detected and can be set to maintain 10% or fully off when no motion is detected
  • RATINGS: UL Listed to U.S. and Canadian safety standards for wet locations. IP65. Tested in accordance with IESNA LM-79 and LM-80 standards. DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product
  • VOLTAGE: UVOLT 120 - 347V

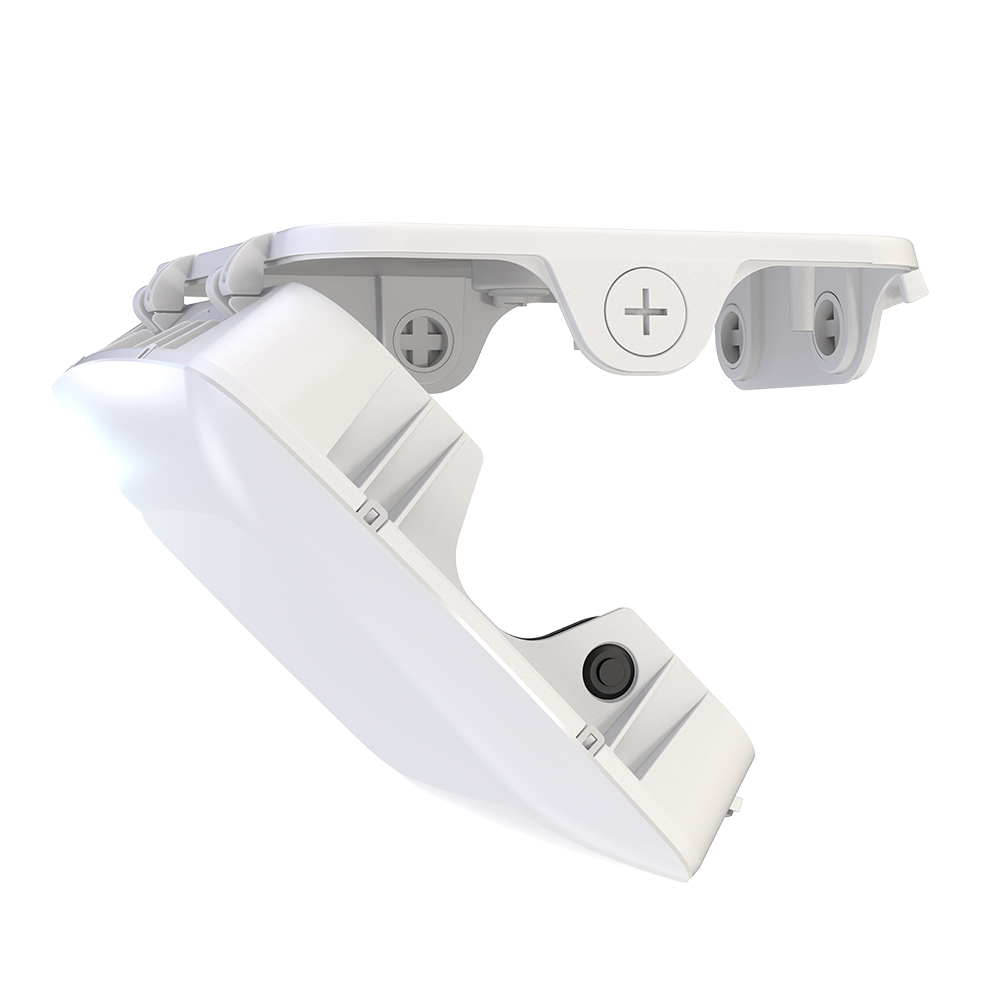

  • INSTALLATION: Quick-mount plate that makes mounting to a recessed junction box or conduit entry point both quick and trouble free and can be separated for surface mounting and reattached via a hinge for support while wiring
  • CONSTRUCTION: Cast-aluminum housing with powder coat finish for lasting durability and IK08 impact rated frosted lens is designed for uniform light distribution while providing visually comfortable illumination

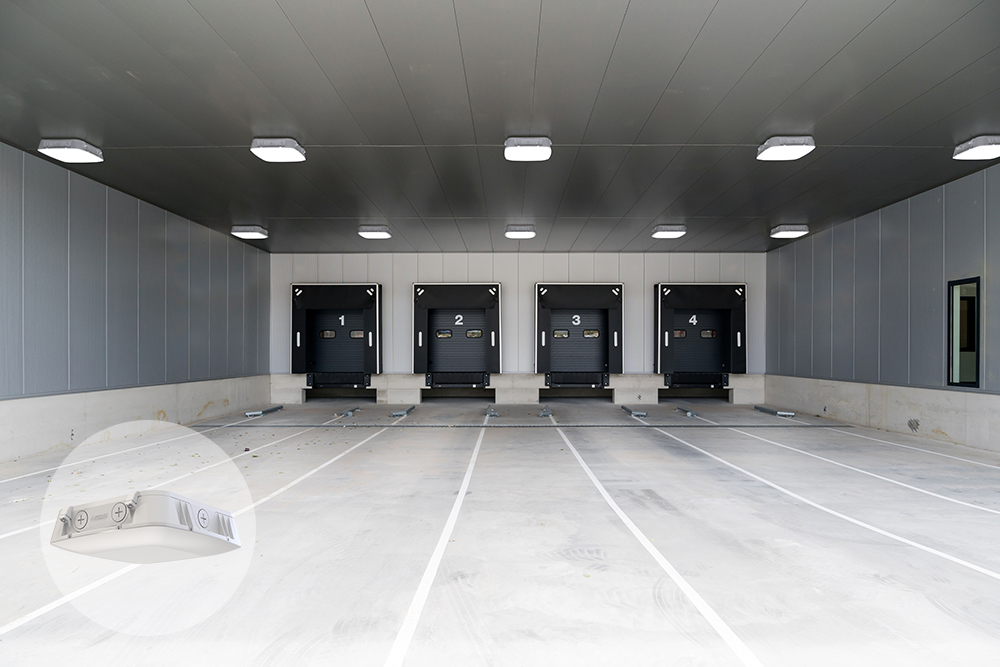

  • APPLICATIONS: Ideal for parking garages, building entrances and walkways
  • WARRANTY: 5-Year Limited Warranty
Standard
  • C-UL-USCA Title 24
  • DLC Premium
Application
  • Offices & Banks
  • Retail
Mounting
  • Surface
