LEV DT112-1LW WH 15A SP DEC TIMER 5

Manufacturer: Leviton Mfg Co | Catalog # DT112-1LW | Cooper Electric Part # 2029431
$47.41/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

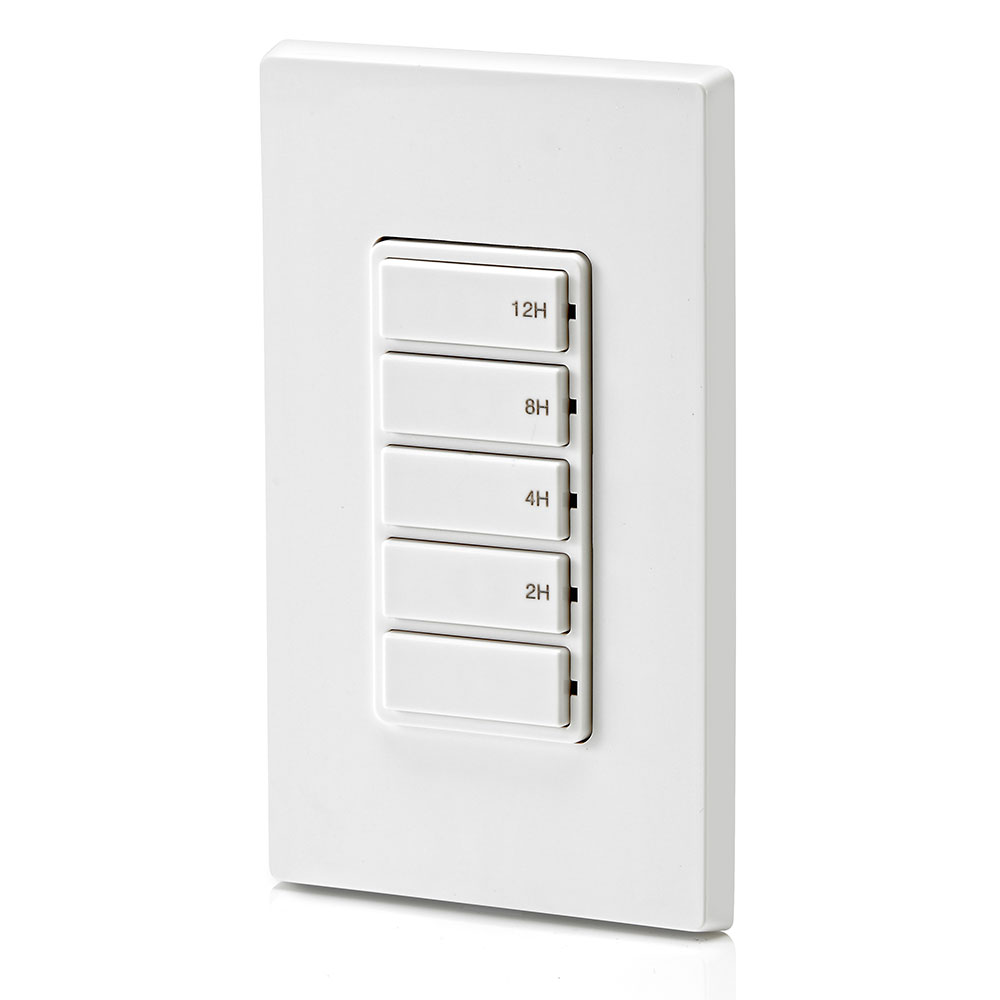

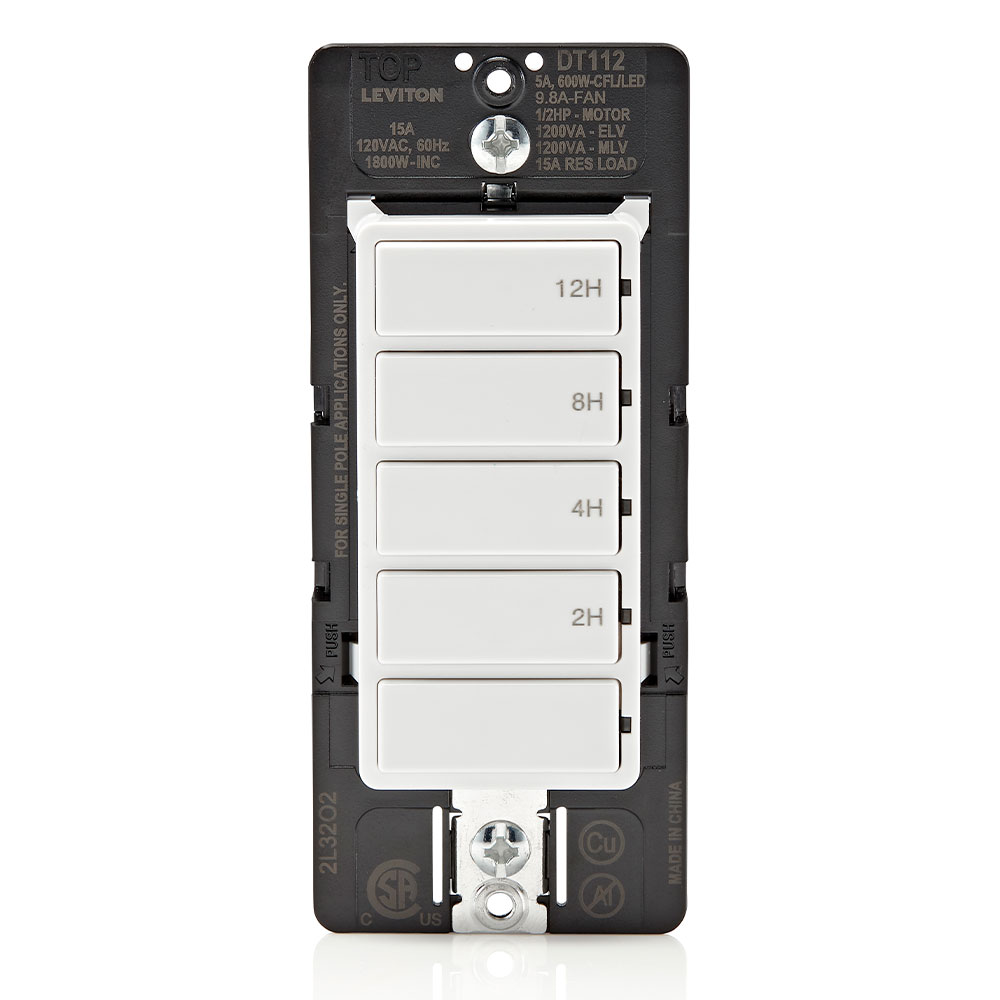

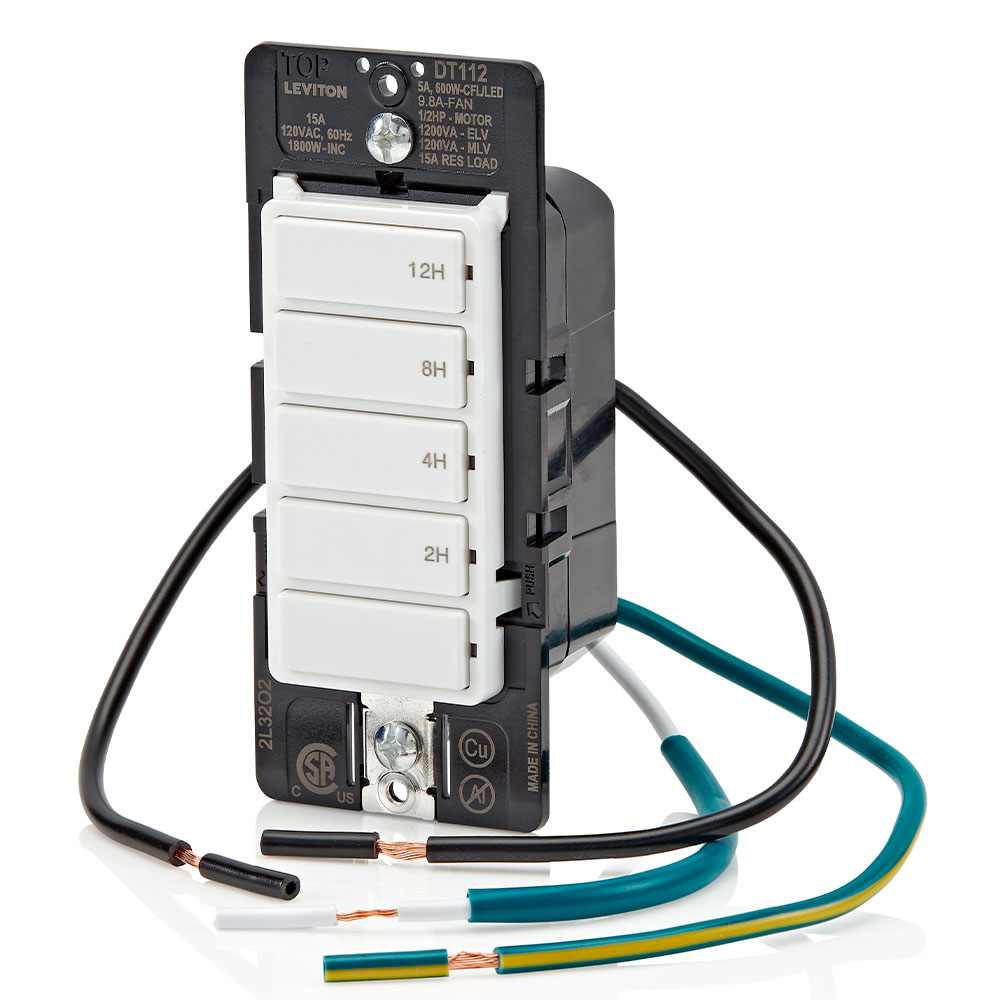

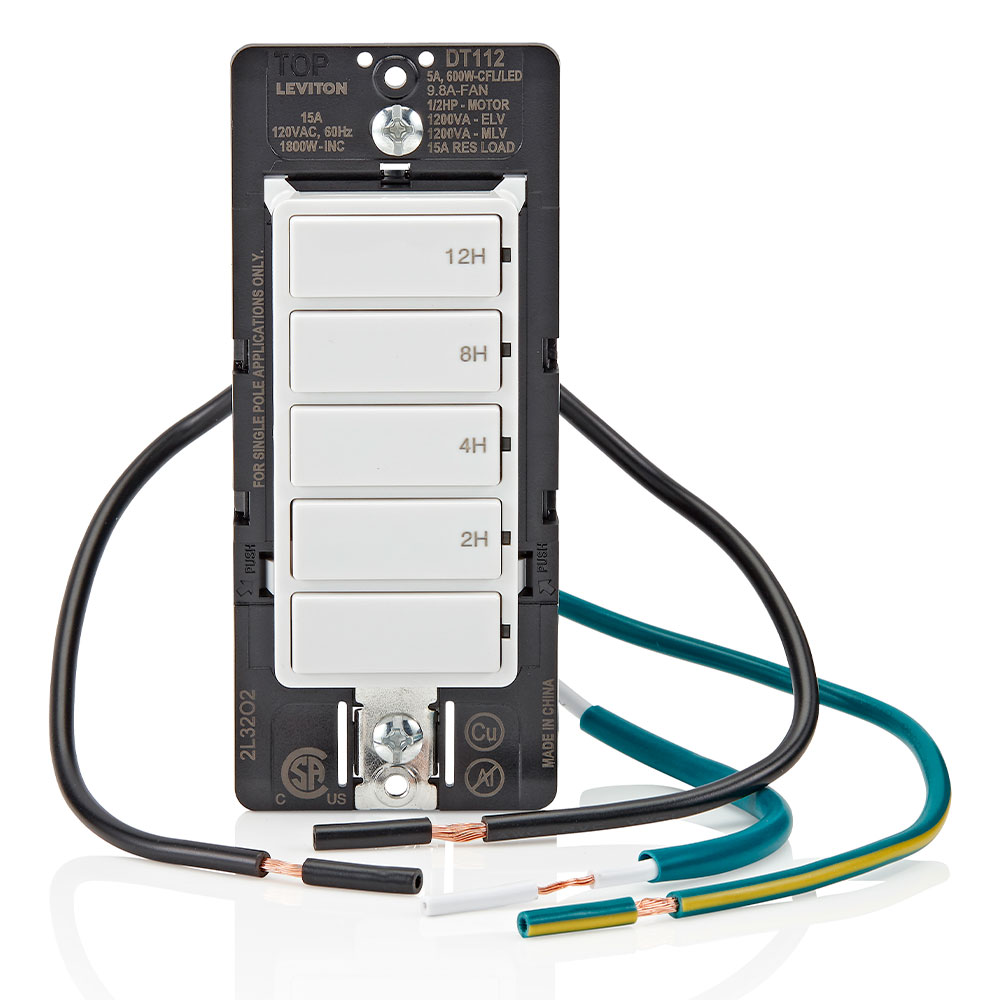

The Decora 12-Hour Countdown Timer Switch has 5 buttons with 2-hour, 4-hour, 8-hour and 12-hour preset time options and a manual off button. Single Pole, 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage/Electronic Low Voltage/Fluorescent, . HP/9.8A Fan/Motor, 15A Resistive. Can be installed with or without a neutral wire, wallplate sold separately - White

Technical Information

Amperage
15 Amp
Device Type
Timer Switch
Grade
Residential
Grounding
Yes
Horsepower
1/2 hp
Mounting Type
In-Wall
Termination Type
Leads

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477264317
Color
White
GTiN
00078477264317
Product UPC
07847726431

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Replace a standard wall switch with a countdown timer to ensure exhaust fans or lights are not left on unintentionally
  • Four preset time option buttons 2-4-8-12 hour with separate off button. Press time option to turn on and will automatically turn off when time expires
  • 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage, 1200 VA Electronic Low Voltage, 1200 VA Fluorescent, HP/9.8 Amp Fan/Motor, 15A Resistive

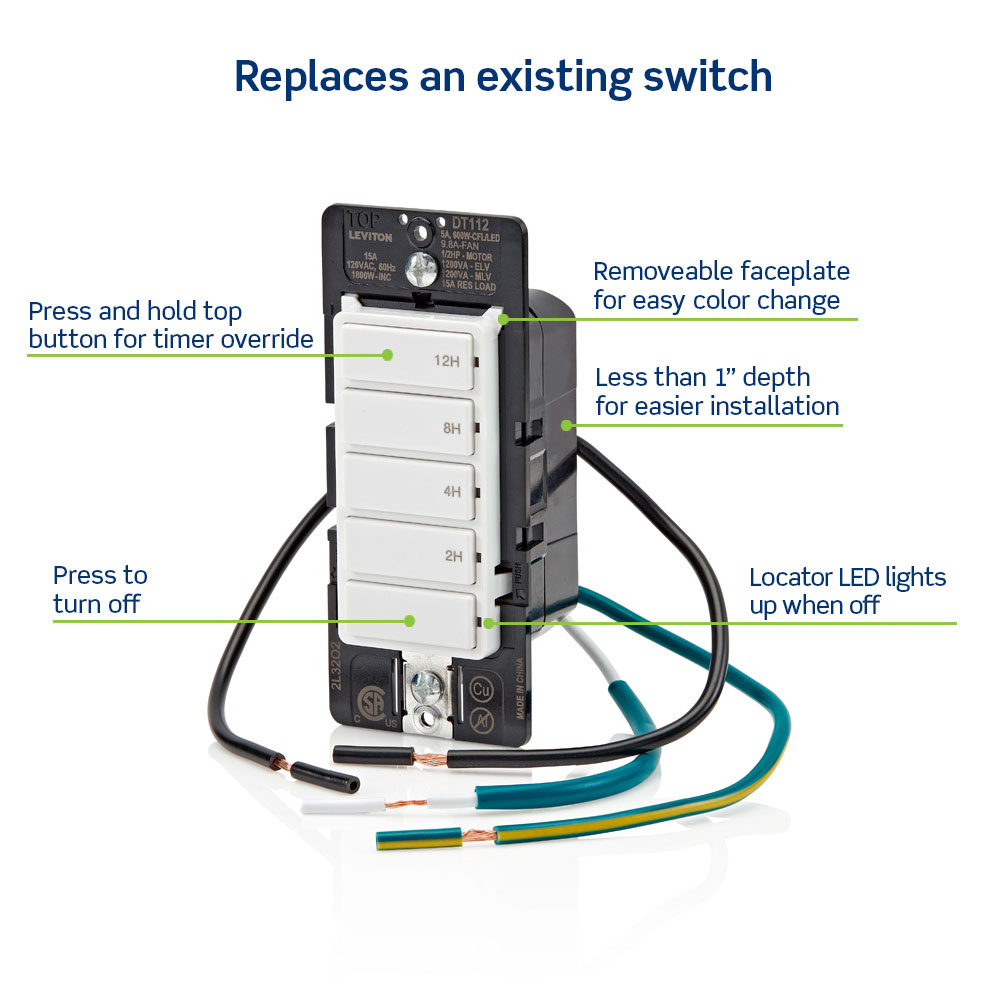

  • Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws
  • Innovative Green Flex Sleeve wires to ground in homes with no neutral wiring or remove the sleeve and connect to a neutral wire if present in the wallbox. A ground wire is required for installation
  • DIY friendly with two black wires that can be interchanged between line and load to help prevent miswiring
  • Zero Cross turn-on technology to extend the life of the switch
  • Manual override keeps load on for 24 hours. Override can be disabled by pressing one of the timer option buttons or off button
  • Change color with DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)
  • Ideal to use for porch and landscape lighting, interior lights, ventilation fans, heat lamps, hot tubs, saunas, attic fans, and more
  • Do not use to control lights if there is no other light source in the space
  • CONVENIENT replace your current wall switch with a countdown timer to automate fan/motor loads and lights. Four preset time buttons, press to turn on and automatically turns off when time expires
  • EASY DIY INSTALL slim depth for easier fit in wall box, interchangeable line and load wires to help prevent miswiring, and a Green Flex Sleeve that connects to a ground wire, or to a neutral wire when the sleeve is removed
  • ENERGY SAVING ensure lights and fans are not left on unintentionally
  • PRACTICAL for porch and landscape lighting, interior lights, ventilation fans, heat lamps, hot tubs, saunas, attic fans, and more
  • STYLISH easily change the color using DTKIT faceplates available in white, ivory, light almond, gray, black and brown
