Square D EZML112225 120/240 VAC 225 Amp 1-Phase 3-Wire Ringless Meter Center Branch Unit

Manufacturer: Square-D / Schneider | Catalog # EZML112225 | Cooper Electric Part # 202777
$4,466.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
3 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure

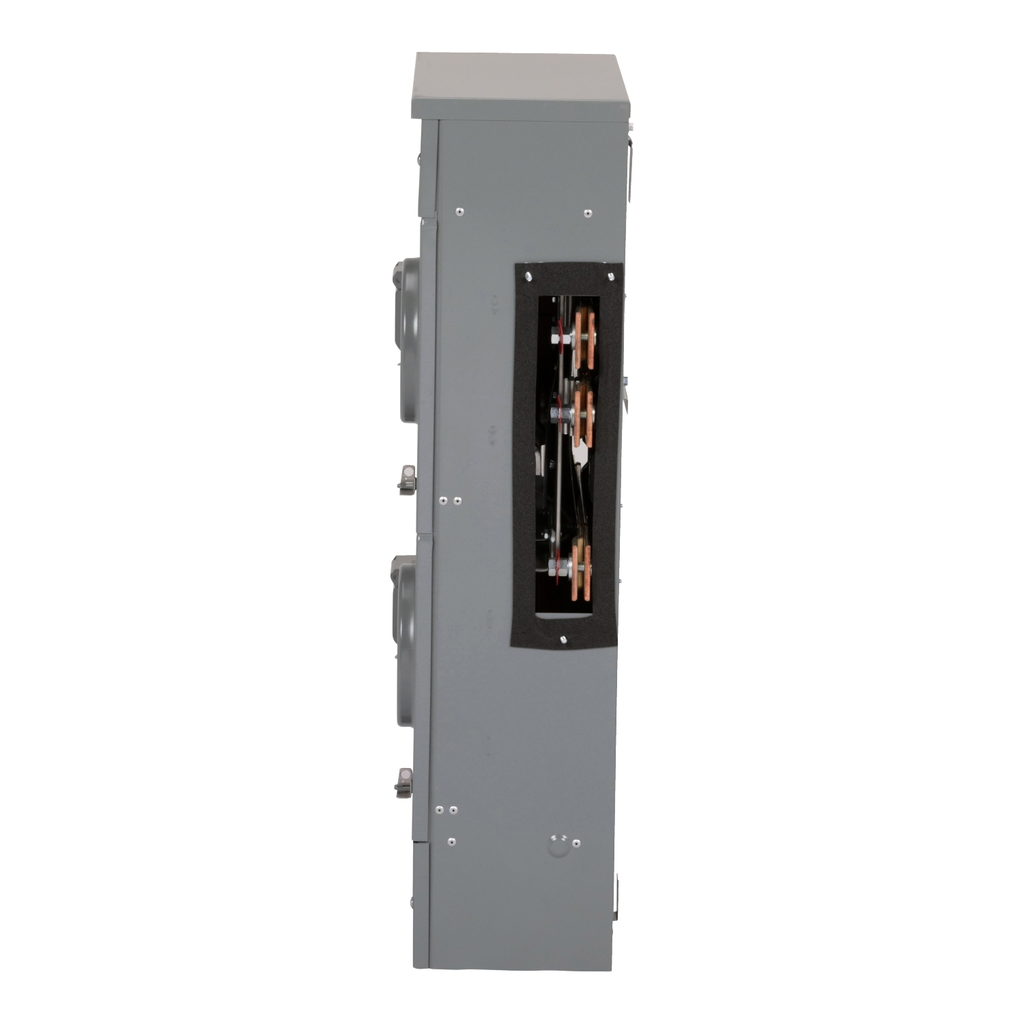

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 225A. It has 2 five jaw sockets for use. The system voltage is 120/240 VAC and has a lever bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Technical Information

Amperage
1200 Amp,225 Amp
Bus Rating
1200 A
Current
225 Amp
Enclosure
3R
Enclosure Material
Steel
Enclosure Rating
3R
Line Rated Current
225 A
Material
Aluminium/copper: Busbar
Mounting Type
Surface
NEMA Size
3R
Net Weight
51.210 kg
Number of Jaws
5 With Jaw Release
Number of Phases
1 Phase
Size
19.44 IN,39.06 IN
Type
Meter-Pak
Voltage
120/240 Volt

Manufacturer Information

Brand
Square D
Sub Brand
METER-PAK

General Product Info

12-Digit UPC
785901337966
GTiN
00785901337966
Product UPC
78590133796
Weight
51.210 kg

Dimensions

Depth
240 mm
Height
992 mm
Warranty Length
18 mth
Width
494 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 29007
  • 5J
  • EZM125QOA
  • EZM1CORNER
  • EZM1ELBOW
  • EZM1EXT
  • EZM1EXT6
  • EZM1TRANL
  • EZM1TRANR
  • EZM72MC
  • EZMCAP
  • EZMSCAP
  • RSG4
