3M 7000132601 3M™ Heat Shrink Thin-

Manufacturer: 3M | Catalog # 7000132601 | Cooper Electric Part # 202195
$37.33/ea
pk
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
2 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet

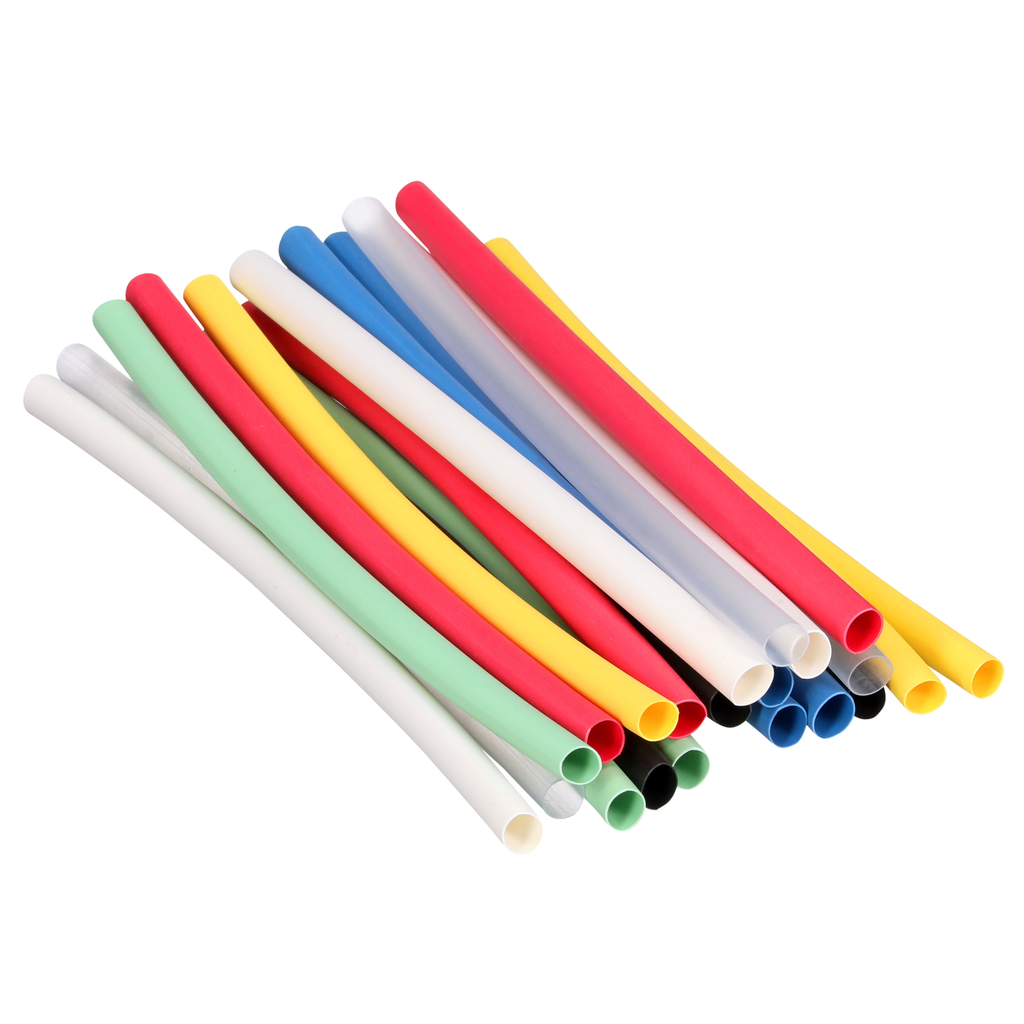

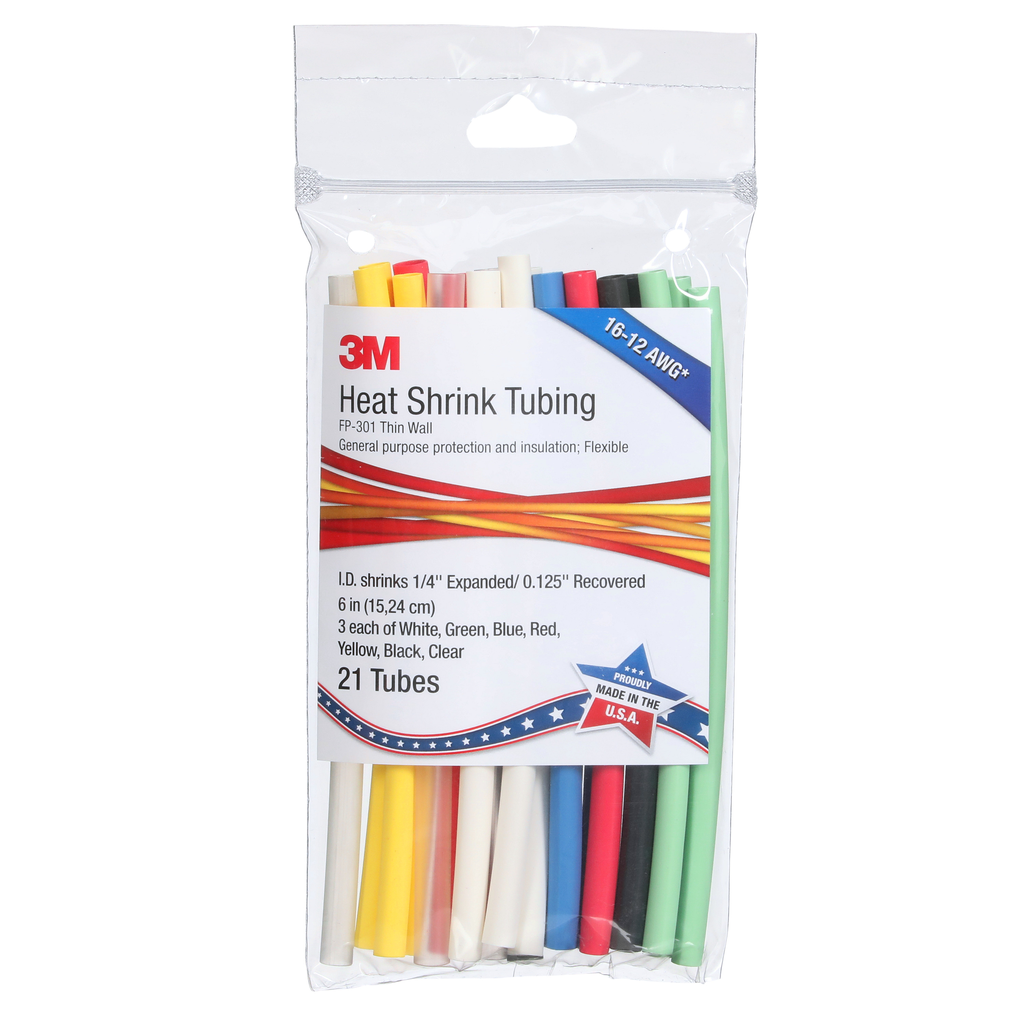

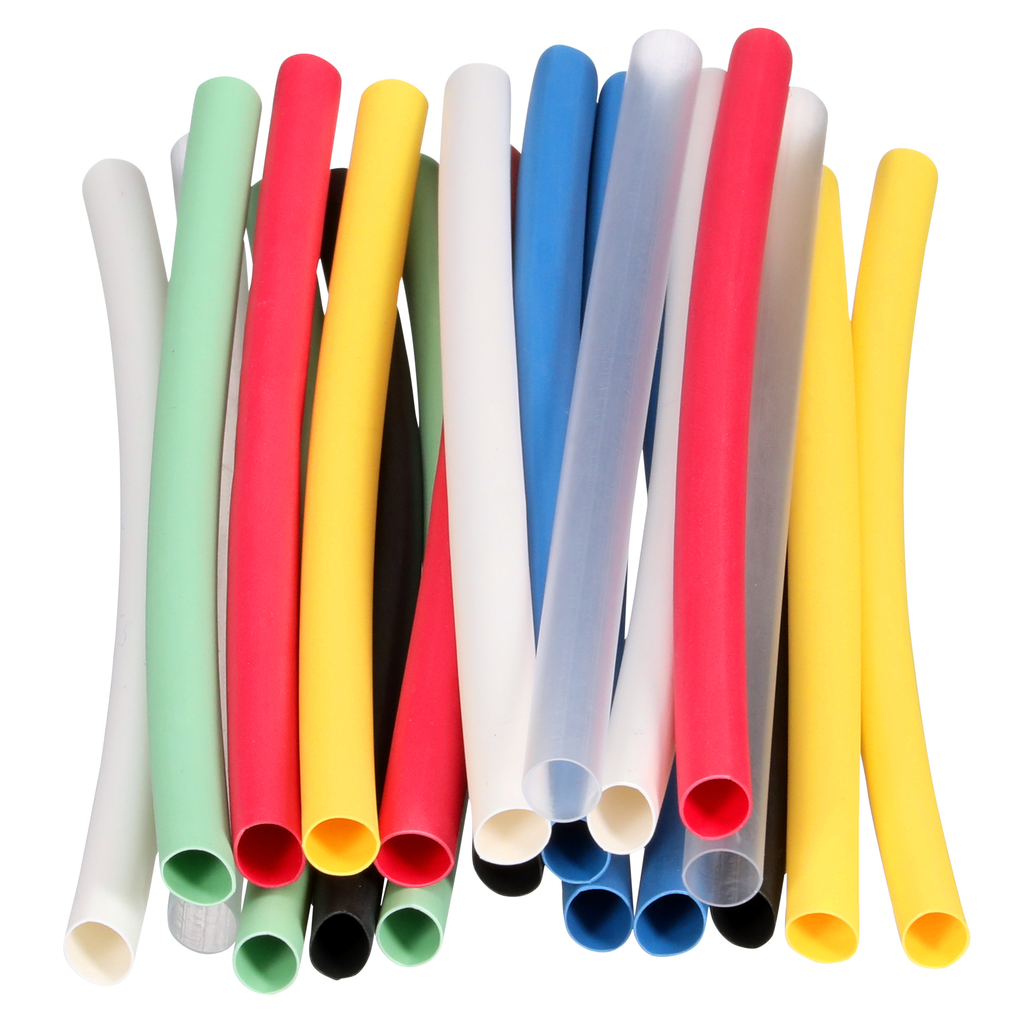

3M™ Heat Shrink Thin-Wall Tubing is a heat-shrinkable, flexible polyolefin tubing that offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications.

Technical Information

Dielectric Strength
900 V/mil
Material
Polyolefin
Max Operating Temperature
135.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
2 to 1
Tensile Strength
2400 lb/in
Type
Single (Thin) Wall

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051135366219
Color
Multi-Color
GTiN
00051135366219
Product UPC
05113536621

Dimensions

Inside Diameter
0.125
Length
6 Inch
Outside Diameter
0.25 in
Overall Length
6.0 in
Thickness
0.025

Certifications and Compliance

Country of Origin
USA
Features

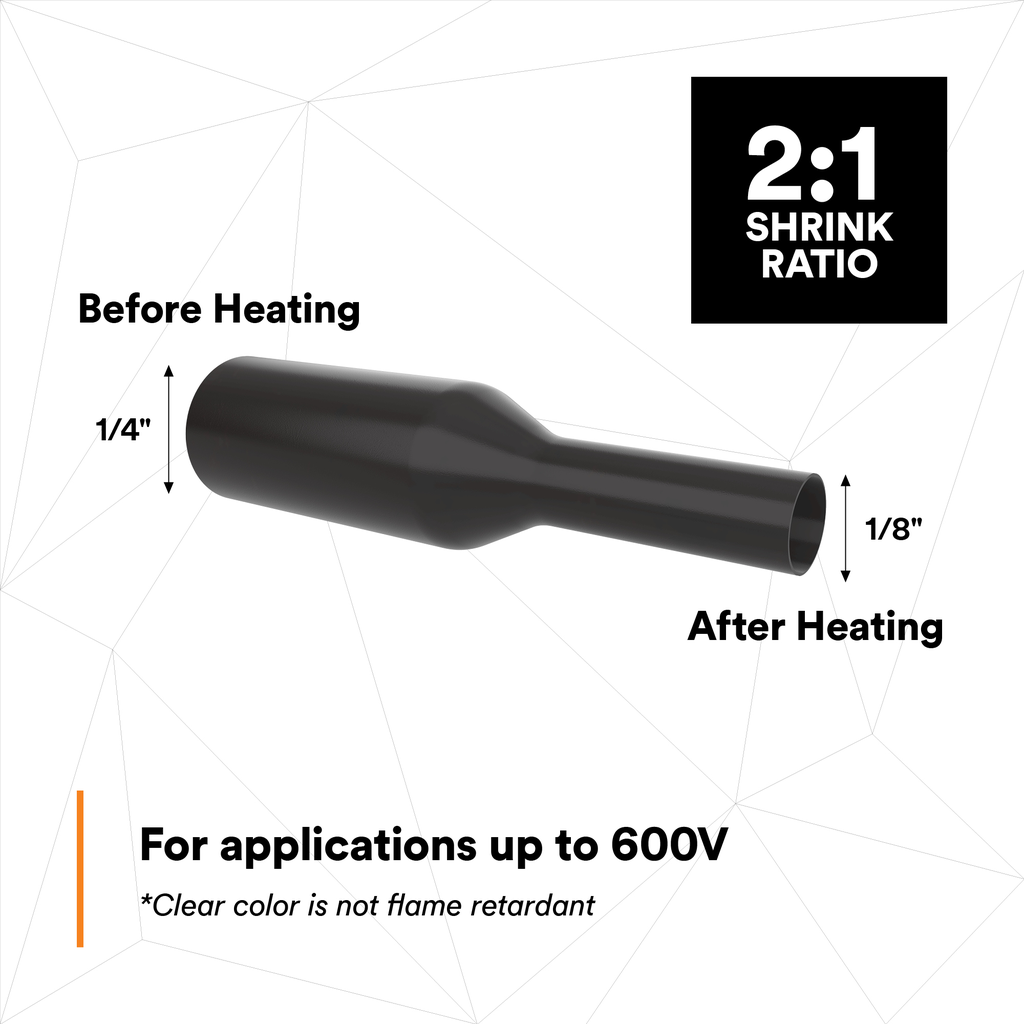

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
