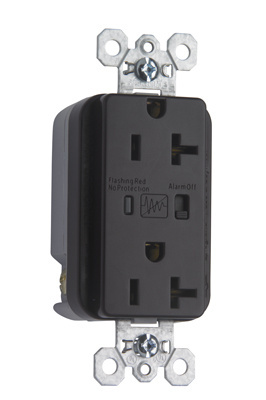

Product image for Pass & Seymour 5362-SP Surge Protective Extra Heavy-Duty Duplex Receptacle, Back & Side Wire, 20A 125V - Brown
Email

Pass & Seymour 5362-SP Surge Protective Extra Heavy-Duty Duplex Receptacle, Back & Side Wire, 20A 125V - Brown

Manufacturer: Pass & Seymour / Legrand | Catalog # 5362SP | Cooper Electric Part # 202141
$95.18/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Product Brochure
Surge Protective Extra Heavy-Duty Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Specification grade surge suppressor receptacle with audible alarm and LED indicator, ideal for heavy duty power applications. By Pass & Seymour. Back & Side Wire, 20amp 125volt, White.

Technical Information

Amperage
20 Amp
Applications
For Commercial Applications
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Duty Rating
Extra Heavy Duty
Grade
Specification
Indoor Outdoor
Indoor
Material
Nylon
Mounting Type
Wall
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 - -60 degrees C
Outlet Type
Straight Blade, Surge Protected
Size
1.70 L x 1.25 W x 3.75 H In
Standard
CSA C22.2 No. 85,UL E23018,cULus
TC Connection
Back & Side Wired
Temperature Rating
-20 degrees C to 55 degrees C
Type
Extra Heavy-Duty
Voltage
125 Volt
Wattage
Electrical power is expressed in Amps and Volts.
Wire Size
14-10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007536294
Class
Light emitting diode LED optic lighting
Color
Brown
Environmental Conditions
Flammability: UL94 V2
GTiN
00785007536294
Product UPC
78500753629
UNSPSC
39121406

Dimensions

Depth
1.225 Inch
Height
3-3/4 Inch
Width
1.25 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
  • Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
  • Impact-resistant thermoplastic exterior resists impacts and scrapes.
  • Triple-wipe, copper-alloy contacts for superior, more dependable connection.
  • Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection.
  • Protection response time in less than one nanosecond.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
